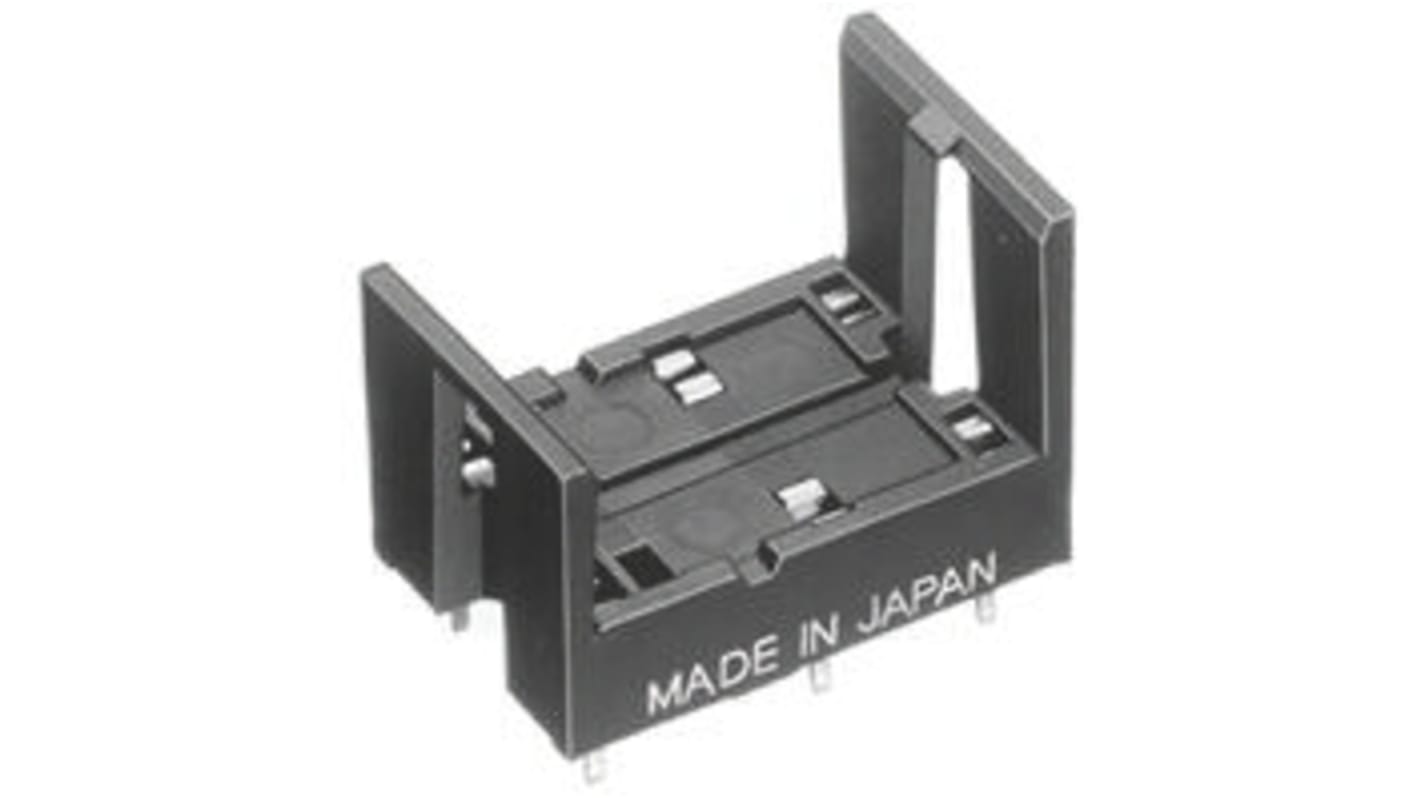

Panasonic DK 250V ac PCB Mount Relay Socket, for use with DK Series, DY Series
- RS Stock No.:
- 173-8943
- Mfr. Part No.:
- DK2A-PS
- Brand:
- Panasonic
Available to back order for despatch 21/10/2024
Added
Price Each (In a Box of 50)
£2.871
(exc. VAT)
£3.445
(inc. VAT)
| Units | Per unit | Per Box* |
| 50 + | £2.871 | £143.55 |
| *price indicative | ||
- RS Stock No.:
- 173-8943
- Mfr. Part No.:
- DK2A-PS
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
DK Series Relay
These PCB mount miniature power relays have a high capacity, high sensitivity and high breakdown voltage. A sealed construction allows automatic washing. Typical applications include power switching, industrial machinery, PLC's, temperature controllers, timers and home appliances.
Compact with high capacity
High sensitivity: 200 mW nominal operating power
High surge withstanding, 10,000V between contact and coil
Sealed construction
Miniature size, H10 x W20 x D12.5 mm
High sensitivity: 200 mW nominal operating power
High surge withstanding, 10,000V between contact and coil
Sealed construction
Miniature size, H10 x W20 x D12.5 mm
Approvals
UL, CSA, TÜV
Specifications
Attribute | Value |
|---|---|
| Voltage | 250V ac |
| For Use With | DK Series, DY Series |
| Series | DK |
| Mounting Type | PCB Mount |
| Termination Type | PCB Pin |
| Current Rating | 10A |
