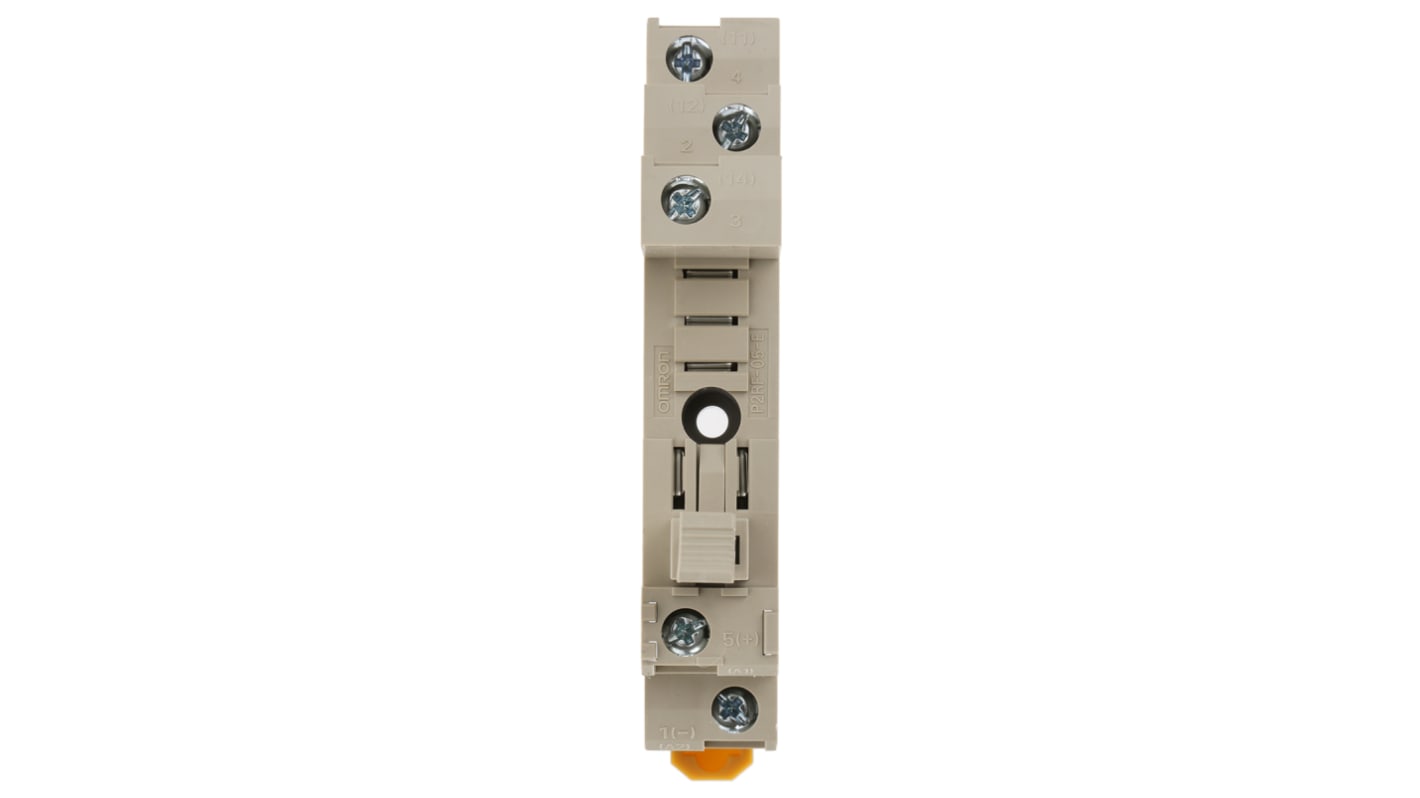

Omron 5 Pin 250V ac DIN Rail Relay Socket, for use with G2R-1-S Relays
- RS Stock No.:
- 353-944
- Mfr. Part No.:
- P2RF-05-E
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£5.60
(exc. VAT)
£6.72
(inc. VAT)
- RS Stock No.:
- 353-944
- Mfr. Part No.:
- P2RF-05-E
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Voltage | 250V ac | |
For Use With | G2R-1-S Relays | |
Number of Contacts | 5 | |
Mounting Type | DIN Rail | |
Select all | ||
---|---|---|
Brand Omron | ||
Voltage 250V ac | ||
For Use With G2R-1-S Relays | ||
Number of Contacts 5 | ||
Mounting Type DIN Rail | ||
- COO (Country of Origin):
- CN
G2RS Series Non-Latching Relay
Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.
Features & Benefits
Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately
Product Application Information
Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances
Lifts and Elevators
Gas and electric boilers
Domestic Appliances
Note
Can be used as a replacement for earlier version of G2R-SN series, check height clearance.
Approvals
UL, CSA, VDE
PRODUCT DISCONTINUATION NOTICE: Article: 353-944 (P2RF-05-E) is due to be discontinued and will be replaced with the following article: 196-2321 (P2RFZ-05-E)
Approvals
UL; CSA; EN 61812-1; CE
