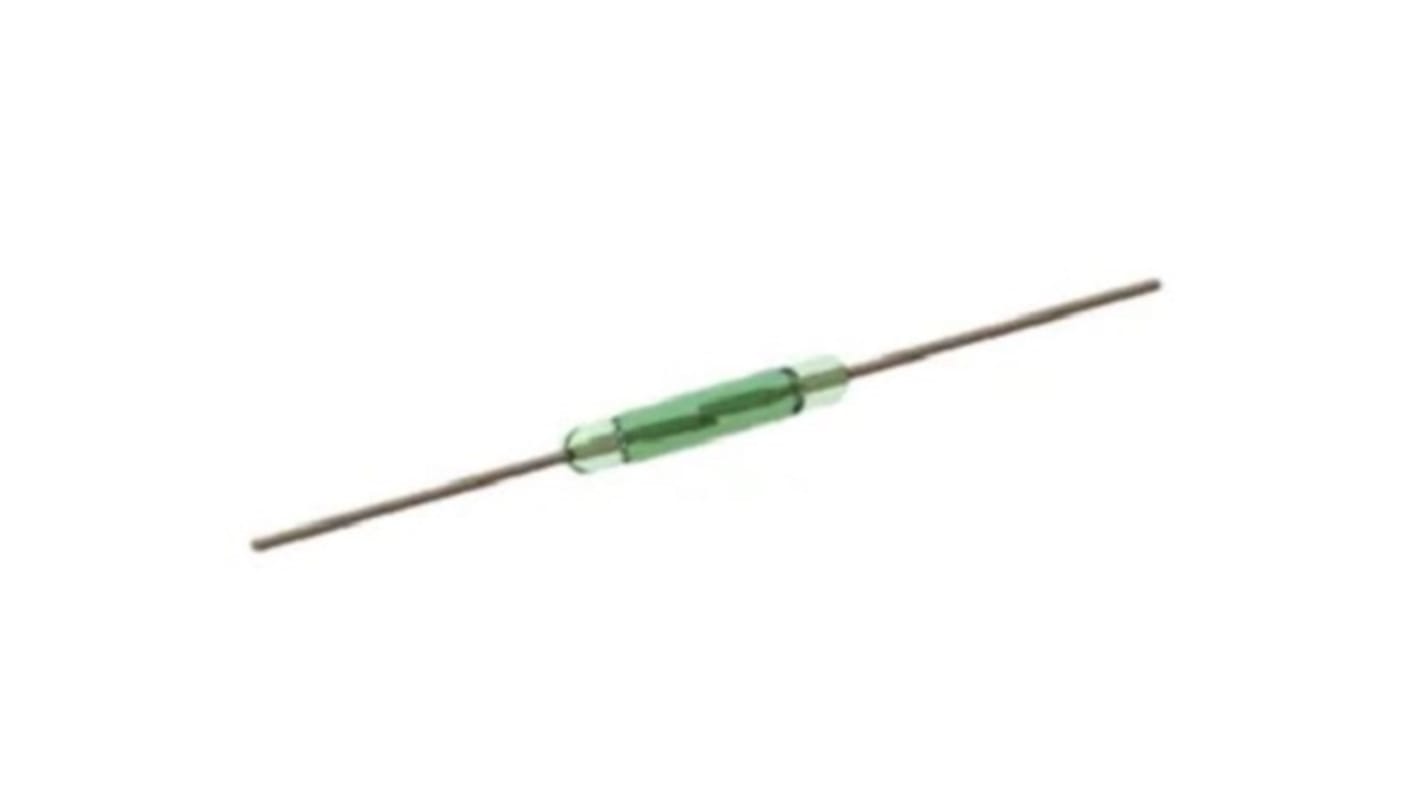

RS PRO SPDT Through Hole Reed Switch, 0.5A 175V dc
- RS Stock No.:
- 265-2248
- Brand:
- RS PRO
Subtotal (1 unit)*
£5.53
(exc. VAT)
£6.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 454 unit(s) ready to ship
- Plus 999,999,545 unit(s) shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £5.53 |
*price indicative
- RS Stock No.:
- 265-2248
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Contact Configuration | SPDT | |
Maximum Switching Current | 0.5A | |
Maximum Switching Power | 10W | |
Maximum Switching Voltage | 175V dc | |
Contact Resistance | 250mΩ | |
Contact Material | Rhodium | |
Maximum Release Time | 1.5ms | |
Operating Time Including Bounce | 0.7ms | |
AT Value Range | 20 → 25AT | |
Mounting Type | Through Hole | |
Length | 55.1mm | |
Dimensions | 55.1 x 2.5mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Contact Configuration SPDT | ||
Maximum Switching Current 0.5A | ||
Maximum Switching Power 10W | ||
Maximum Switching Voltage 175V dc | ||
Contact Resistance 250mΩ | ||
Contact Material Rhodium | ||
Maximum Release Time 1.5ms | ||
Operating Time Including Bounce 0.7ms | ||
AT Value Range 20 → 25AT | ||
Mounting Type Through Hole | ||
Length 55.1mm | ||
Dimensions 55.1 x 2.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
RS PRO Reed Switch, SPDT Contact Configuration
RS PRO Reed Switches are designed for reliable and efficient operation in various applications. These magnetically operated switches change state in the presence of a magnetic field, making them ideal for position sensing and security systems.
Features and Benefits
Reed Switch: Ensures reliable magnetic operation
1 Form A Contact: Provides a simple and effective switching solution
Miniature Glass Body: Compact design with only 14mm length for space-saving applications
Up to 175VDC: Suitable for high voltage applications
Pre-formed Lead: Facilitates easier mounting and installation
Miniature 1 Form C (Changeover) Reed Switch: Offers versatile switching capabilities
Magnetically Operated: Contacts change state in the presence of a magnetic field
Pre-Bent Lead: Simplifies the mounting process
1 Form A Contact: Provides a simple and effective switching solution
Miniature Glass Body: Compact design with only 14mm length for space-saving applications
Up to 175VDC: Suitable for high voltage applications
Pre-formed Lead: Facilitates easier mounting and installation
Miniature 1 Form C (Changeover) Reed Switch: Offers versatile switching capabilities
Magnetically Operated: Contacts change state in the presence of a magnetic field
Pre-Bent Lead: Simplifies the mounting process
Applications
Position Sensing
Alarm Systems
Door Detectors
Anti-tamper Switches
Counters
Automotive
Test & Measurement
Safety
Alarm Systems
Door Detectors
Anti-tamper Switches
Counters
Automotive
Test & Measurement
Safety
Additional Information
Contact Configuration: SPDT
Mounting Type: Through Hole Mount
Maximum Switching Current: 0.5 A
Maximum Switching Power: 10 W
Maximum Switching Voltage: 175 V DC
Contact Material: Rhodium
Mounting Type: Through Hole Mount
Maximum Switching Current: 0.5 A
Maximum Switching Power: 10 W
Maximum Switching Voltage: 175 V DC
Contact Material: Rhodium
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
