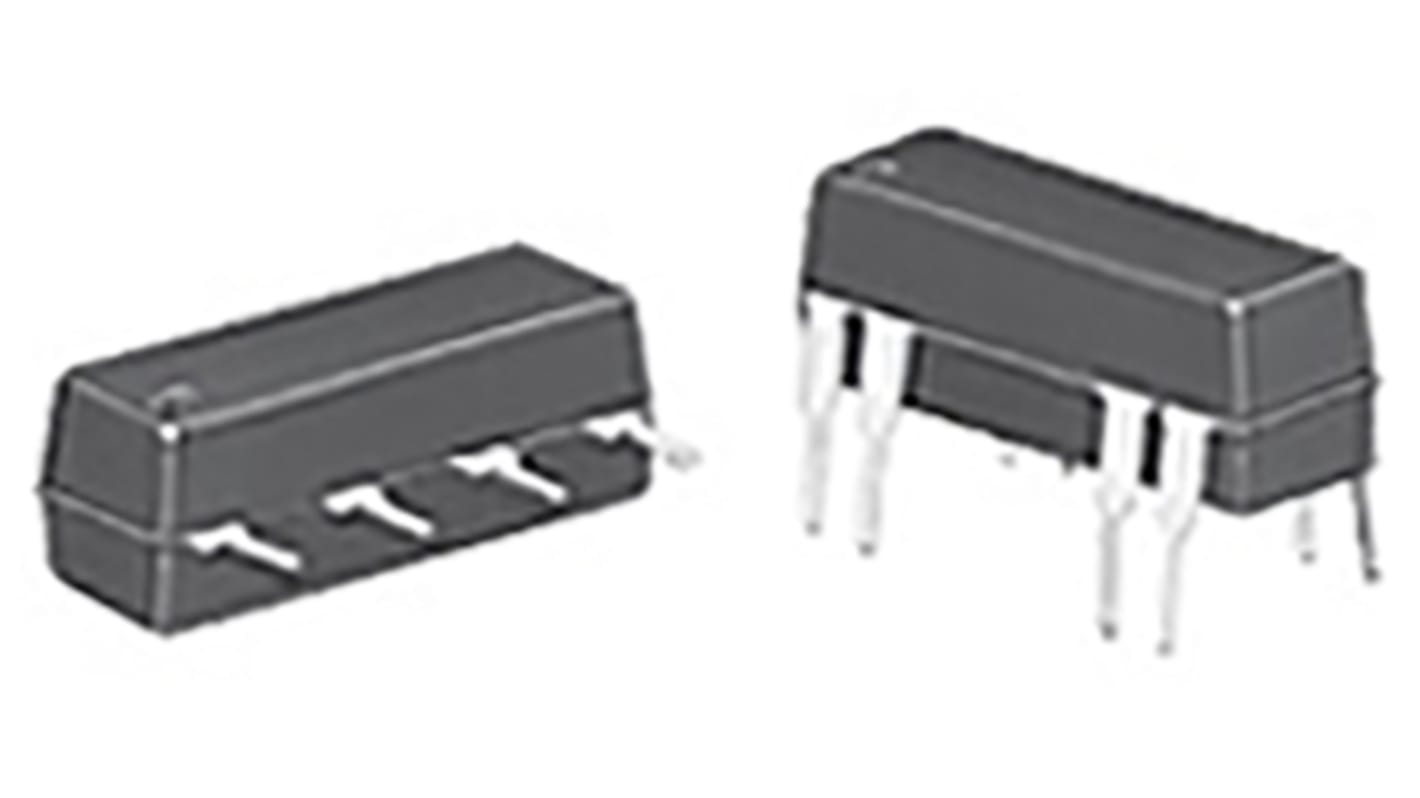

TE Connectivity PCB Mount Reed Relay, 12V dc Coil, DPDT, 100V dc Max, 0.5 A Max, 500 Ω
- RS Stock No.:
- 863-3670
- Mfr. Part No.:
- JWD-171-23
- Brand:
- TE Connectivity
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 863-3670
- Mfr. Part No.:
- JWD-171-23
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Configuration | DPDT | |
| Coil Voltage | 12V dc | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 0.5 A | |
| Maximum Switching Voltage DC | 100V dc | |
| Coil Power | 288mW | |
| Coil Resistance | 500 Ω | |
| Length | 19.56mm | |
| Height | 8mm | |
| Depth | 7.62mm | |
| Dimensions | 19.56 x 7.62 x 8mm | |
| Isolation Coil To Contact | 500V dc | |
| Maximum Operating Temperature | +85°C | |
| Life | 100000000 (Mechanical) operations | |
| Operating Temperature Range | -35 → +85°C | |
| Contact Material | Ruthenium | |
| Contact Resistance | 200 mΩ | |
| Minimum Operating Temperature | -35°C | |
| Terminal Type | PCB Pin | |
| Operating Time Including Bounce | 1.5/0.5ms | |
| Maximum Switching Power DC | 10 W | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Contact Configuration DPDT | ||
Coil Voltage 12V dc | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 0.5 A | ||
Maximum Switching Voltage DC 100V dc | ||
Coil Power 288mW | ||
Coil Resistance 500 Ω | ||
Length 19.56mm | ||
Height 8mm | ||
Depth 7.62mm | ||
Dimensions 19.56 x 7.62 x 8mm | ||
Isolation Coil To Contact 500V dc | ||
Maximum Operating Temperature +85°C | ||
Life 100000000 (Mechanical) operations | ||
Operating Temperature Range -35 → +85°C | ||
Contact Material Ruthenium | ||
Contact Resistance 200 mΩ | ||
Minimum Operating Temperature -35°C | ||
Terminal Type PCB Pin | ||
Operating Time Including Bounce 1.5/0.5ms | ||
Maximum Switching Power DC 10 W | ||
