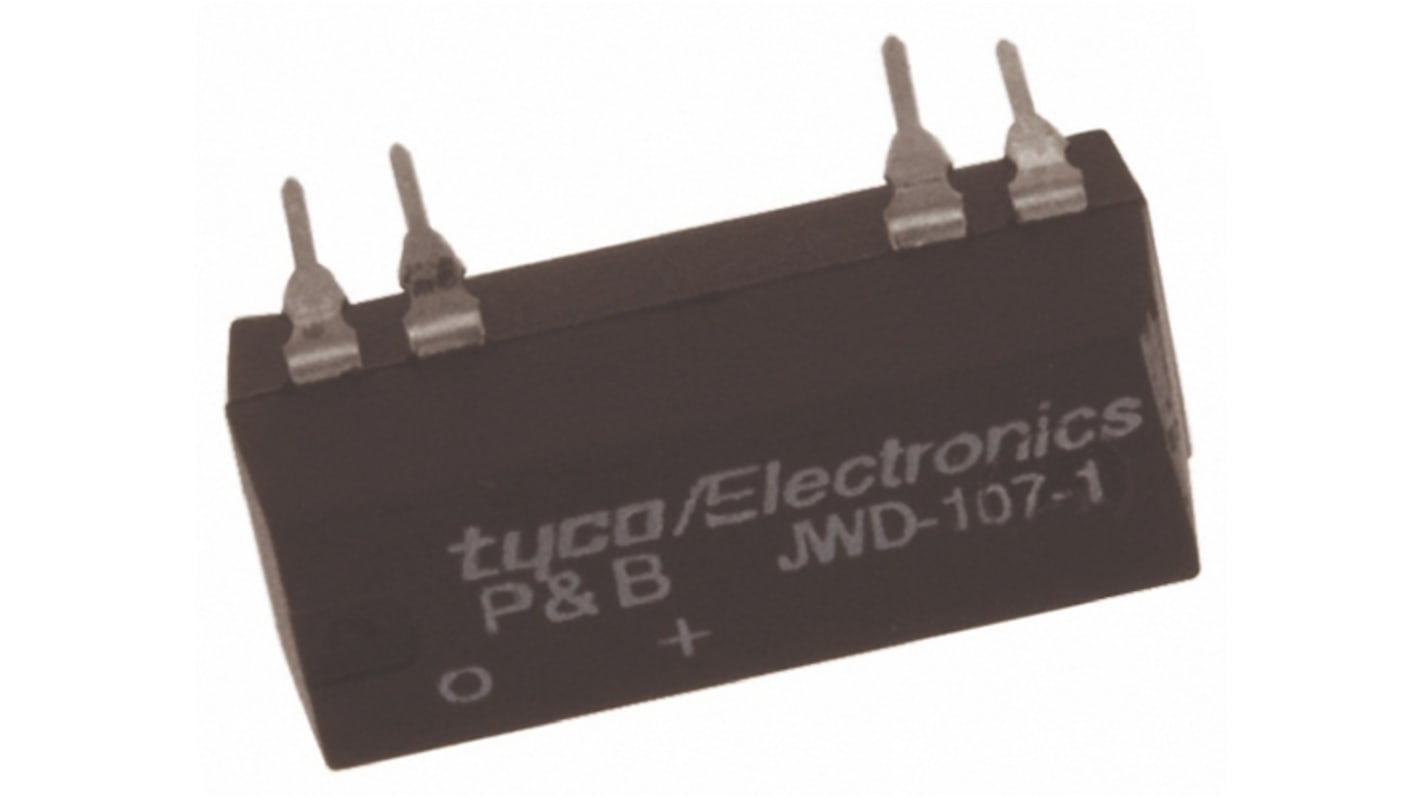

TE Connectivity PCB Mount Reed Relay, 5V dc Coil, SPST, 100V dc Max, 0.5 A Max, 500Ω
- RS Stock No.:
- 783-0889
- Mfr. Part No.:
- JWD-107-1
- Brand:
- TE Connectivity
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 783-0889
- Mfr. Part No.:
- JWD-107-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Configuration | SPST | |
| Coil Voltage | 5V dc | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 0.5 A | |
| Maximum Switching Voltage DC | 100V dc | |
| Coil Power | 72mW | |
| Coil Resistance | 500Ω | |
| Length | 19.56mm | |
| Height | 8mm | |
| Depth | 7.62mm | |
| Dimensions | 19.56 x 7.62 x 8mm | |
| Isolation Coil To Contact | 500V dc | |
| Contact Resistance | 200 mΩ | |
| Contact Material | Ruthenium | |
| Terminal Type | PCB Pin | |
| Operating Temperature Range | -35 → +85°C | |
| Life | 100 x 10⁶ Operations | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -35°C | |
| Operating Time Including Bounce | 1.5/0.5ms | |
| Maximum Switching Power DC | 10 W | |
