Cynergy3 PCB Reed Relay, 24V dc Coil, SPST, 10000V dc Max, 2A Max, 350 Ω
- RS Stock No.:
- 712-1173
- Mfr. Part No.:
- DAT72415F
- Brand:
- Cynergy3
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£78.18
(exc. VAT)
£93.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 22 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 22 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £78.18 |
| 10 - 49 | £75.13 |
| 50 - 99 | £71.61 |
| 100 + | £69.11 |
*price indicative
- RS Stock No.:
- 712-1173
- Mfr. Part No.:
- DAT72415F
- Brand:
- Cynergy3
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cynergy3 | |
| Product Type | Reed Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Coil Power | 50W | |
| Coil Resistance | 350Ω | |
| Terminal Type | Solder | |
| Minimum Operating Temperature | -20°C | |
| Switching Power | 50W | |
| Operating Time | 3ms | |
| Maximum Operating Temperature | 70°C | |
| Series | DAT | |
| Standards/Approvals | UL | |
| Height | 18.5mm | |
| Length | 60mm | |
| Isolation Coil To Contact | 15kV ac/dc | |
| Latching | No | |
| Contact Resistance | 250mΩ | |
| Select all | ||
|---|---|---|
Brand Cynergy3 | ||
Product Type Reed Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Coil Power 50W | ||
Coil Resistance 350Ω | ||
Terminal Type Solder | ||
Minimum Operating Temperature -20°C | ||
Switching Power 50W | ||
Operating Time 3ms | ||
Maximum Operating Temperature 70°C | ||
Series DAT | ||
Standards/Approvals UL | ||
Height 18.5mm | ||
Length 60mm | ||
Isolation Coil To Contact 15kV ac/dc | ||
Latching No | ||
Contact Resistance 250mΩ | ||
- COO (Country of Origin):
- CN

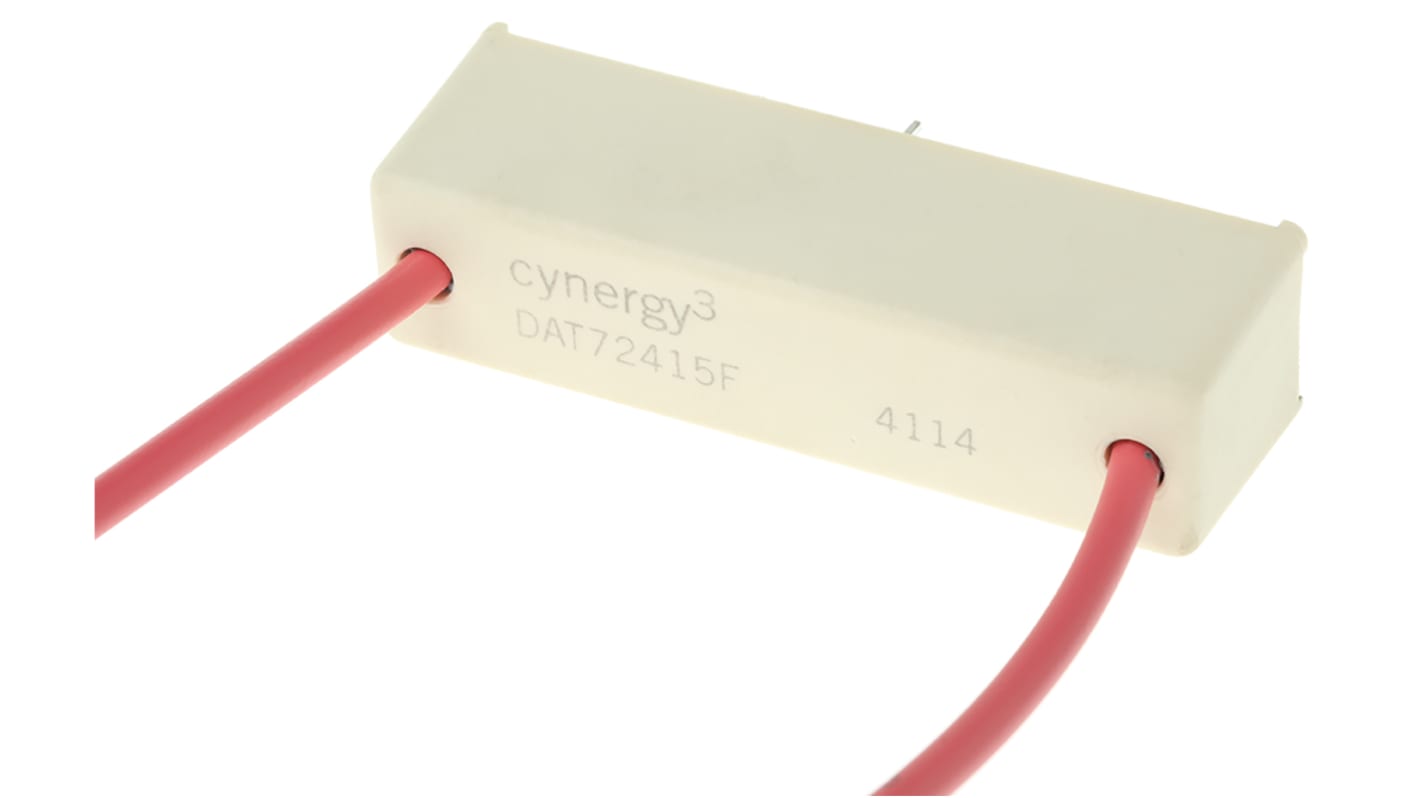

Sensata Cynergy3 High-Voltage Reed Relay, SPNO, 24 V DC - D Series - DAT72415F
Activate high-voltage transmission of up to 15 kV in your heavy-duty electrical equipment with this reed relay from Sensata Cynergy3. It consists of a reed switch with two contact relays that conduct high-voltage charges. Thanks to its exceptionally fast operating time of 3 milliseconds, you can use this reed relay for electrical devices that require quick and reliable charges. It's commonly used for applications such as semiconductors, test equipment and electrical-power transmission devices.
Features and Benefits
• Suitable for panel or PCB (printed circuit board) mounting for enhanced versatility
• Long service life of up to 100,000,000 electrical cycles
• Broad operating temperature range of -20°C to +70°C for use in a range of demanding environments
• Compact dimensions of 60 (length) x 15.8 (depth) x 18.5 mm (height) for use in tight spaces
What are the reed relay's contacts made of?
The contacts in this reed relay are made from tungsten, a refractory metal that's highly conductive and resistant to corrosion. These properties ensure efficient transmission and make the relay ideal for use in high-voltage applications.
HV Vacuum Encapsulated D Series
These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality.
High power switching
Through hole PCB & panel mount or flying lead versions
15kV high isolation versions available
Tungsten contacts enable high voltage switching
