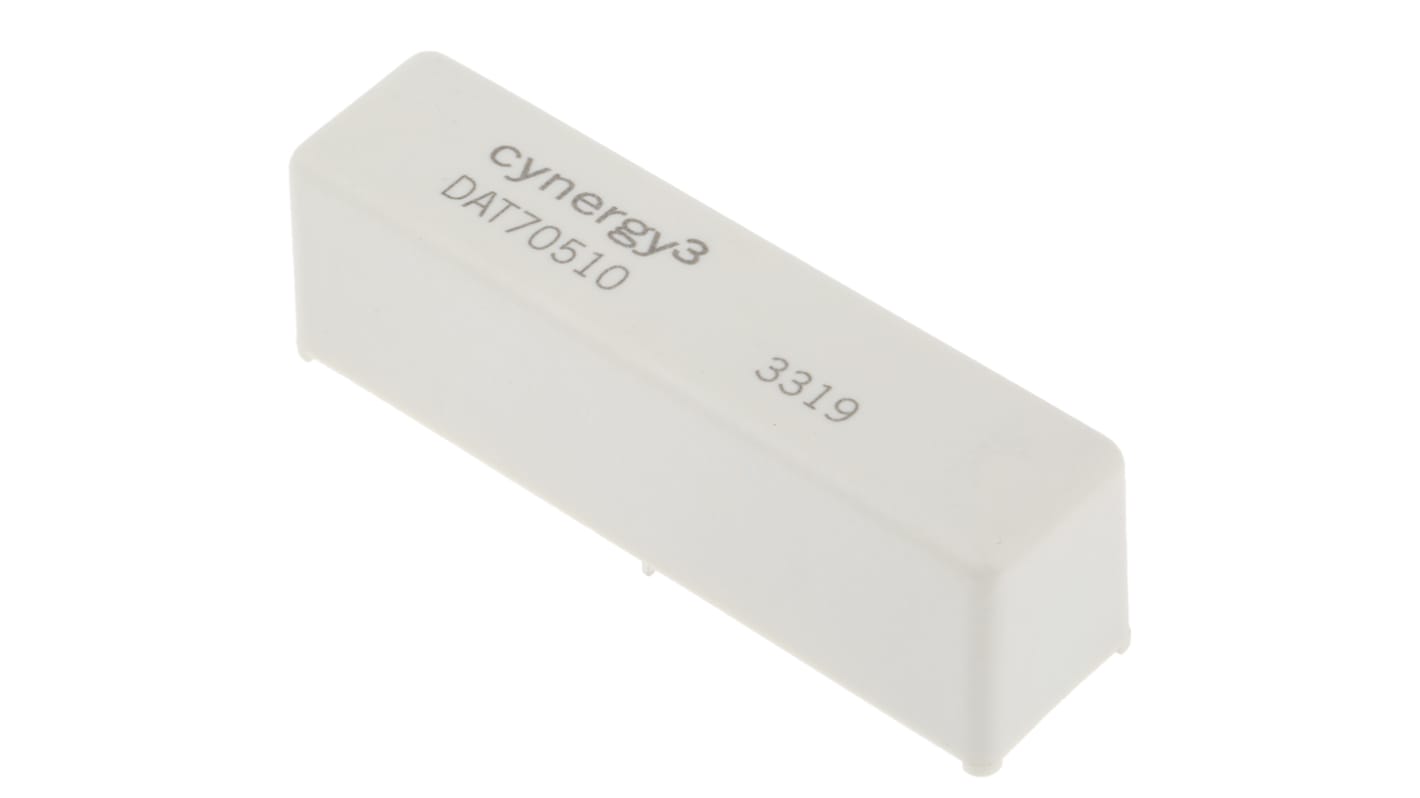

Sensata Cynergy3 PCB Mount Reed Relay, 5V dc Coil, SPST, 7000V dc Max, 2 A Max, 28Ω
- RS Stock No.:
- 511-1290
- Mfr. Part No.:
- DAT70510
- Brand:
- Sensata / Cynergy3
Bulk discount available
Subtotal (1 unit)*
£44.24
(exc. VAT)
£53.09
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 340 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £44.24 |
| 25 - 99 | £42.12 |
| 100 + | £39.02 |
*price indicative
- RS Stock No.:
- 511-1290
- Mfr. Part No.:
- DAT70510
- Brand:
- Sensata / Cynergy3
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Cynergy3 | |
| Contact Configuration | SPST | |
| Coil Voltage | 5V dc | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current AC | 2 A | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage AC | 7000V | |
| Maximum Switching Voltage DC | 7000V dc | |
| Coil Resistance | 28Ω | |
| Length | 60mm | |
| Height | 18.5mm | |
| Depth | 15.8mm | |
| Dimensions | 60 x 15.8 x 18.5mm | |
| Isolation Coil To Contact | 10kV ac/dc | |
| Special Features | Excellent AC Characteristics | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -20°C | |
| Contact Resistance | 250 mΩ | |
| Contact Material | Tungsten | |
| Terminal Type | Through Hole | |
| Operating Temperature Range | -20 → +70°C | |
| Life | 1000000 (Electrical) cycles | |
| Operating Time Including Bounce | 3ms | |
| Maximum Switching Power DC | 50 W | |
Select all | ||
|---|---|---|
Brand Sensata / Cynergy3 | ||
Contact Configuration SPST | ||
Coil Voltage 5V dc | ||
Mounting Type PCB Mount | ||
Maximum Switching Current AC 2 A | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage AC 7000V | ||
Maximum Switching Voltage DC 7000V dc | ||
Coil Resistance 28Ω | ||
Length 60mm | ||
Height 18.5mm | ||
Depth 15.8mm | ||
Dimensions 60 x 15.8 x 18.5mm | ||
Isolation Coil To Contact 10kV ac/dc | ||
Special Features Excellent AC Characteristics | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -20°C | ||
Contact Resistance 250 mΩ | ||
Contact Material Tungsten | ||
Terminal Type Through Hole | ||
Operating Temperature Range -20 → +70°C | ||
Life 1000000 (Electrical) cycles | ||
Operating Time Including Bounce 3ms | ||
Maximum Switching Power DC 50 W | ||
- COO (Country of Origin):
- CN
Sensata Cynergy3 SPNO Reed Relay, 5V DC, 50W - D Series - DAT70510
Control the on-and-off switching of your circuit with this reed relay from the Sensata Cynergy3 range. Its contacts are made from a durable tungsten material for high electrical conductivity and resistance to corrosion, ensuring a reliable connection. Thanks to its maximum switching voltage of 7000V AC/DC, it's suitable for use in high-power systems. This switch has a through-hole terminal for simple installation. Its compact dimensions of 60 (length) x 18.5 (height) x 15.8mm (depth) make it suitable for installation in circuits where space is limited. You'll commonly find it used in applications such as test equipment, cardiac defibrillators or high-voltage power supply systems.
Features & Benefits
• Wide operating temperature range of -20°C to +70°C for use in demanding environments
• Long lifespan of one million electrical cycles for long-lasting and reliable performance
• SPNO (single pole normally open) contact configuration means the circuit is only activated when switched on for user safety
• Long lifespan of one million electrical cycles for long-lasting and reliable performance
• SPNO (single pole normally open) contact configuration means the circuit is only activated when switched on for user safety
How quickly does this reed relay operate?
This reed relay has a quick operating time of just 3ms, giving you a fast switching response.
