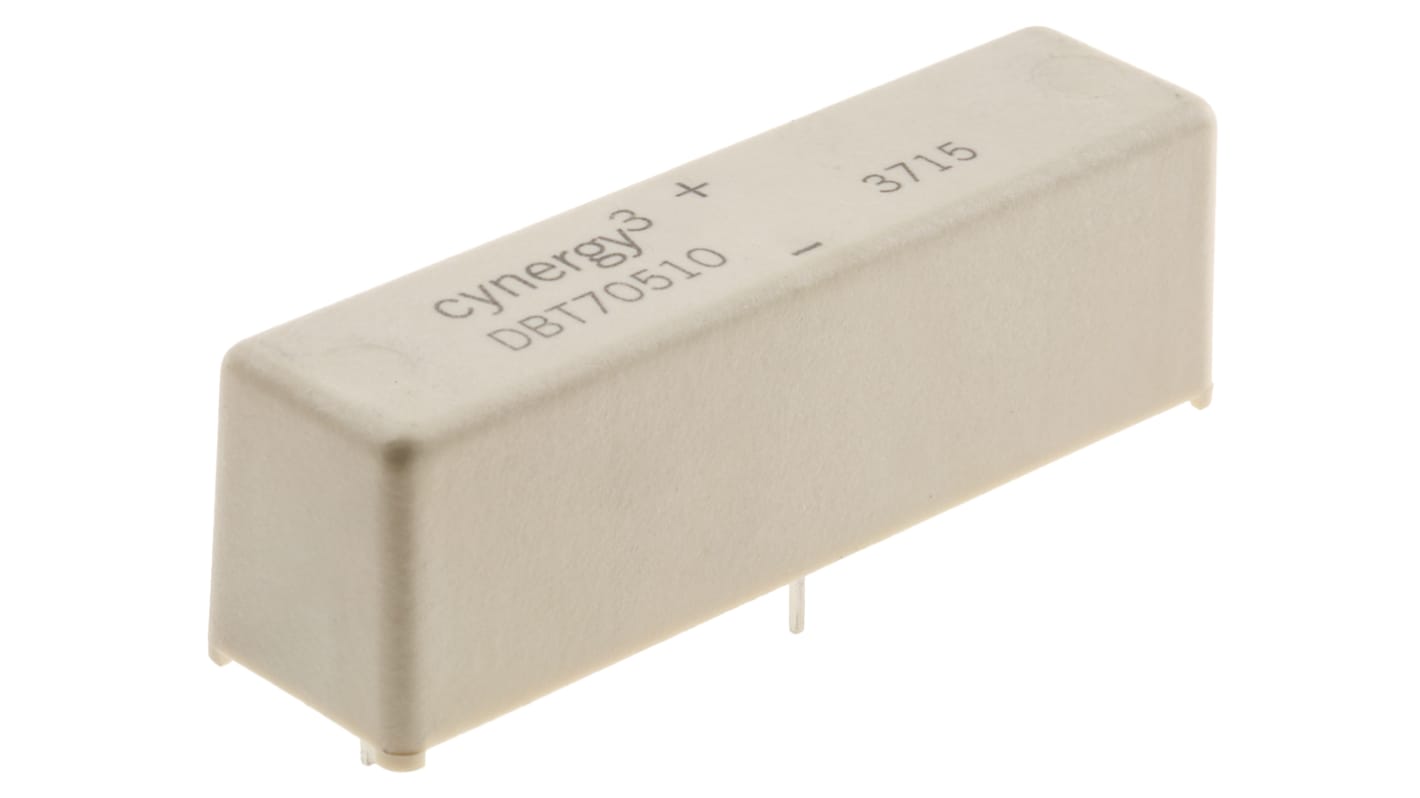

Sensata / Cynergy3 PCB Reed Relay, 5V dc Coil, SPNC, 7000V dc Max, 2A Max, 38 Ω
- RS Stock No.:
- 511-1329
- Mfr. Part No.:
- DBT70510
- Brand:
- Sensata / Cynergy3
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£53.47
(exc. VAT)
£64.16
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 80 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £53.47 |
| 25 - 99 | £50.85 |
| 100 + | £47.16 |
*price indicative
- RS Stock No.:
- 511-1329
- Mfr. Part No.:
- DBT70510
- Brand:
- Sensata / Cynergy3
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Cynergy3 | |
| Product Type | Reed Relay | |
| Contact Configuration | SPNC | |
| Mount Type | PCB | |
| Coil Power | 50W | |
| Coil Resistance | 38Ω | |
| Terminal Type | Solder | |
| Operating Time | 2ms | |
| Switching Power | 50W | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UR | |
| Series | DBT | |
| Height | 18.5mm | |
| Length | 60mm | |
| Isolation Coil To Contact | 17kV ac/dc | |
| Latching | No | |
| Contact Resistance | 250mΩ | |
| Select all | ||
|---|---|---|
Brand Sensata / Cynergy3 | ||
Product Type Reed Relay | ||
Contact Configuration SPNC | ||
Mount Type PCB | ||
Coil Power 50W | ||
Coil Resistance 38Ω | ||
Terminal Type Solder | ||
Operating Time 2ms | ||
Switching Power 50W | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UR | ||
Series DBT | ||
Height 18.5mm | ||
Length 60mm | ||
Isolation Coil To Contact 17kV ac/dc | ||
Latching No | ||
Contact Resistance 250mΩ | ||
- COO (Country of Origin):
- CN
Sensata Cynergy3 Reed Relay, 5V DC Coil Voltage, 38Ω Coil Resistance - D Series - DBT70510
This reed relay from Sensata's Cynergy3 range lets you use reed switches to remotely control components or circuits that need to be electrically isolated. The relay has two magnetic terminals and an electromagnet held within a vacuum tube. This prevents the entry of moisture or contaminants for reliable performance. Thanks to a rapid operating time of just 2ms, the switch is a good choice for circuits where you need fast reaction times. It's commonly used in cardiac defibrillators, test equipment and power supplies.
Features & Benefits
• Contacts made from tungsten for reliable conductivity in high-voltage switching applications
• Wide operating temperature range of -20°C to +70°C for use in harsh environments
• High isolation voltage of 17kV makes it practical for demanding applications
• Compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height) for use in areas where space is limited
How long will this product last?
The switch has a long lifespan of 1,000,000 electrical cycles. This means it will last a long time without the need for frequent replacement or maintenance.
