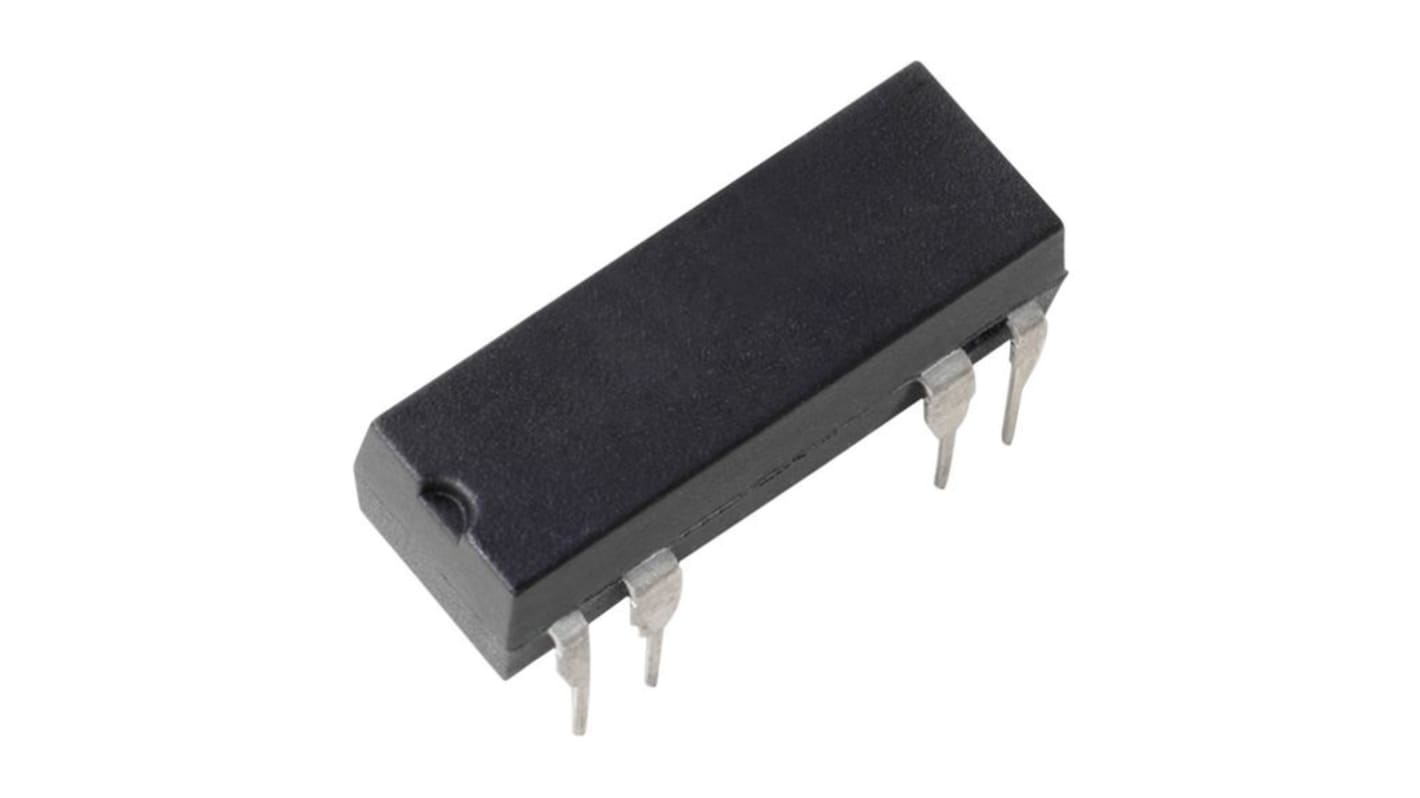

Littelfuse PCB Reed Relay, 5V dc Coil, 2 NO, 200V dc Max, 500mA Max, 200 Ω
- RS Stock No.:
- 283-7451
- Distrelec Article No.:
- 137-46-217
- Mfr. Part No.:
- HE722A0500
- Brand:
- Littelfuse
Subtotal (1 unit)*
£2.95
(exc. VAT)
£3.54
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 July 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.95 |
*price indicative
- RS Stock No.:
- 283-7451
- Distrelec Article No.:
- 137-46-217
- Mfr. Part No.:
- HE722A0500
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Product Type | Reed Relay | |
| Contact Configuration | 2 NO | |
| Mount Type | PCB | |
| Terminal Type | PCB Terminal | |
| Coil Resistance | 200Ω | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 10W | |
| Maximum Operating Temperature | 85°C | |
| Series | HE700 | |
| Standards/Approvals | RoHS, E47258, Crus | |
| Height | 5.5mm | |
| Length | 19.05mm | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Product Type Reed Relay | ||
Contact Configuration 2 NO | ||
Mount Type PCB | ||
Terminal Type PCB Terminal | ||
Coil Resistance 200Ω | ||
Minimum Operating Temperature -40°C | ||
Switching Power 10W | ||
Maximum Operating Temperature 85°C | ||
Series HE700 | ||
Standards/Approvals RoHS, E47258, Crus | ||
Height 5.5mm | ||
Length 19.05mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
The high-quality miniature dual in-line reed relay in a transfer moulded body type. With a compact design and choice of contact types, this relay is capable of switching up to 200Vdc at 5W. It features a coil suppression diode for protecting coil drive circuits and is RoHS compliant. The relay is hermetically sealed, providing reliable switching performance in various applications.
Compact transfer moulded body type for maximum component protection
Choice of contact types including Form A, Form B, and Form C
Capable of switching up to 200Vdc at 5W
Coil suppression diode for protecting coil drive circuits
Hermetically sealed for reliable performance in various applications
