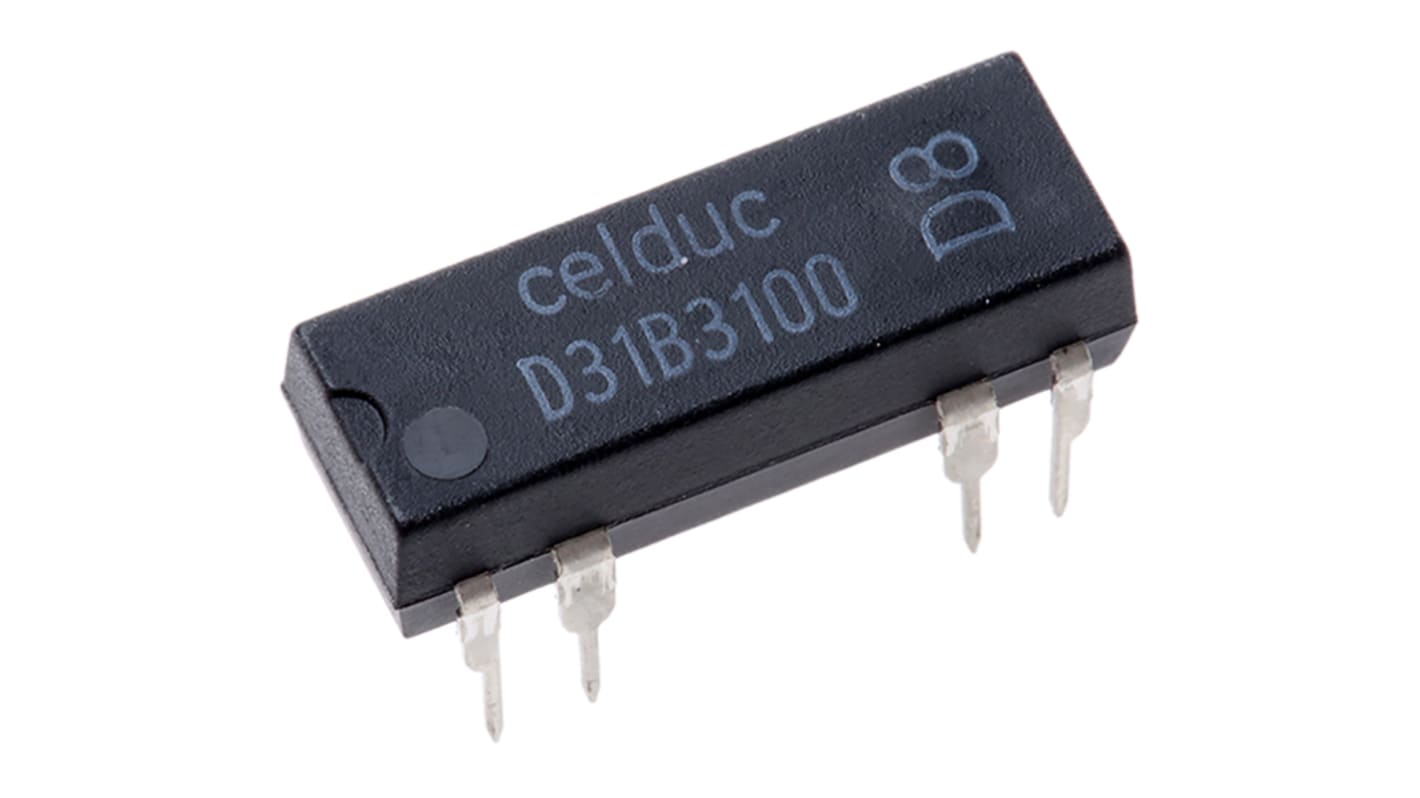

Celduc Plug In Reed Relay, 5V dc Coil, SP-NC, 100V dc Max, 500Ω
- RS Stock No.:
- 178-2775
- Mfr. Part No.:
- D31B3100
- Brand:
- Celduc
Subtotal (1 unit)*
£6.78
(exc. VAT)
£8.14
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 27 October 2025
Units | Per unit |
|---|---|
| 1 - 9 | £6.78 |
| 10 - 49 | £6.53 |
| 50 - 99 | £6.06 |
| 100 - 249 | £5.47 |
| 250 + | £5.04 |
*price indicative
- RS Stock No.:
- 178-2775
- Mfr. Part No.:
- D31B3100
- Brand:
- Celduc
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Contact Configuration | SP-NC | |
| Coil Voltage | 5V dc | |
| Mounting Type | Plug In | |
| Maximum Switching Voltage AC | 100V ac | |
| Maximum Switching Voltage DC | 100V dc | |
| Coil Resistance | 500Ω | |
| Length | 19.1mm | |
| Height | 6.8mm | |
| Depth | 7.85mm | |
| Dimensions | 19.1 x 7.85 x 6.8mm | |
| Isolation Coil To Contact | 1.4kV dc | |
| Maximum Operating Temperature | +70°C | |
| Life | 1000000 (Electrical) cycles | |
| Contact Material | Rhodium | |
| Operating Temperature Range | -40 → +70°C | |
| Operating Time Including Bounce | 1ms | |
| Maximum Switching Power DC | 10 W | |
| Maximum Switching Power AC | 10VA | |
| Minimum Operating Temperature | -40°C | |
| Contact Resistance | 150 mΩ | |
| Terminal Type | Through Hole | |
Select all | ||
|---|---|---|
Brand Celduc | ||
Contact Configuration SP-NC | ||
Coil Voltage 5V dc | ||
Mounting Type Plug In | ||
Maximum Switching Voltage AC 100V ac | ||
Maximum Switching Voltage DC 100V dc | ||
Coil Resistance 500Ω | ||
Length 19.1mm | ||
Height 6.8mm | ||
Depth 7.85mm | ||
Dimensions 19.1 x 7.85 x 6.8mm | ||
Isolation Coil To Contact 1.4kV dc | ||
Maximum Operating Temperature +70°C | ||
Life 1000000 (Electrical) cycles | ||
Contact Material Rhodium | ||
Operating Temperature Range -40 → +70°C | ||
Operating Time Including Bounce 1ms | ||
Maximum Switching Power DC 10 W | ||
Maximum Switching Power AC 10VA | ||
Minimum Operating Temperature -40°C | ||
Contact Resistance 150 mΩ | ||
Terminal Type Through Hole | ||
- COO (Country of Origin):
- FR
Celduc Reed Relays
Over-moulding identical to that of the integrated circuits
