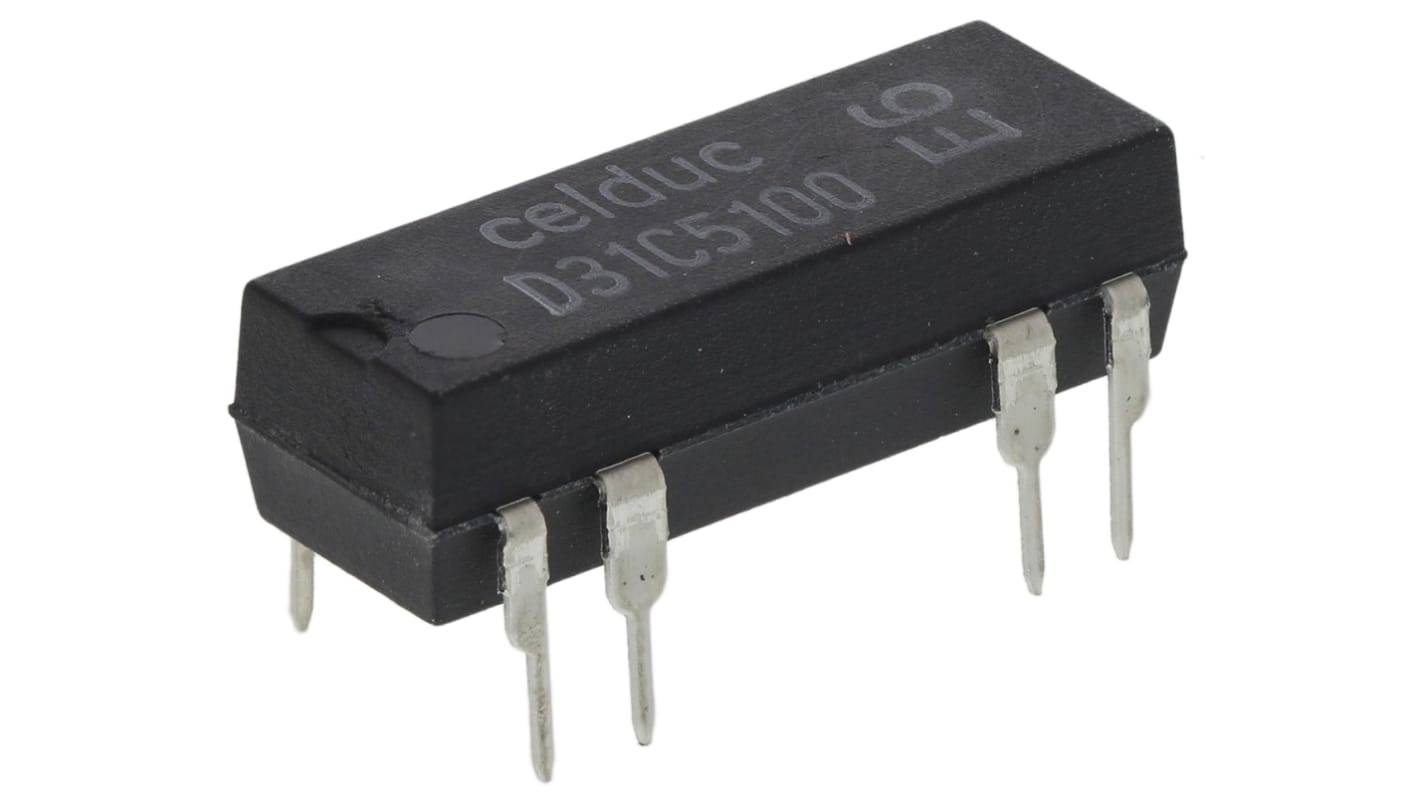

Celduc PCB Mount Reed Relay, 12V dc Coil, SPDT, 100V dc Max, 500Ω
- RS Stock No.:
- 178-2810
- Mfr. Part No.:
- D31C5100
- Brand:
- Celduc
Bulk discount available
Subtotal (1 unit)*
£13.83
(exc. VAT)
£16.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 365 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £13.83 |
| 25 - 99 | £13.27 |
| 100 - 249 | £12.21 |
| 250 + | £11.91 |
*price indicative
- RS Stock No.:
- 178-2810
- Mfr. Part No.:
- D31C5100
- Brand:
- Celduc
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Contact Configuration | SPDT | |
| Coil Voltage | 12V dc | |
| Mounting Type | PCB Mount | |
| Maximum Switching Voltage DC | 100V dc | |
| Coil Resistance | 500Ω | |
| Length | 19.1mm | |
| Height | 6.4mm | |
| Depth | 9.5mm | |
| Dimensions | 19.1 x 9.5 x 6.4mm | |
| Isolation Coil To Contact | 1.4kV dc | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
| Contact Resistance | 150 mΩ | |
| Contact Material | Rhodium | |
| Terminal Type | Through Hole | |
| Operating Temperature Range | -40 → +70°C | |
| Operating Time Including Bounce | 1.5ms | |
| Life | 1000000000 (Mechanical) cycles | |
| Maximum Switching Power AC | 3VA | |
Select all | ||
|---|---|---|
Brand Celduc | ||
Contact Configuration SPDT | ||
Coil Voltage 12V dc | ||
Mounting Type PCB Mount | ||
Maximum Switching Voltage DC 100V dc | ||
Coil Resistance 500Ω | ||
Length 19.1mm | ||
Height 6.4mm | ||
Depth 9.5mm | ||
Dimensions 19.1 x 9.5 x 6.4mm | ||
Isolation Coil To Contact 1.4kV dc | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Contact Resistance 150 mΩ | ||
Contact Material Rhodium | ||
Terminal Type Through Hole | ||
Operating Temperature Range -40 → +70°C | ||
Operating Time Including Bounce 1.5ms | ||
Life 1000000000 (Mechanical) cycles | ||
Maximum Switching Power AC 3VA | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Celduc Reed Relays
Reed relay in DIP package
Over-moulding identical to that of the integrated circuits
Over-moulding identical to that of the integrated circuits
