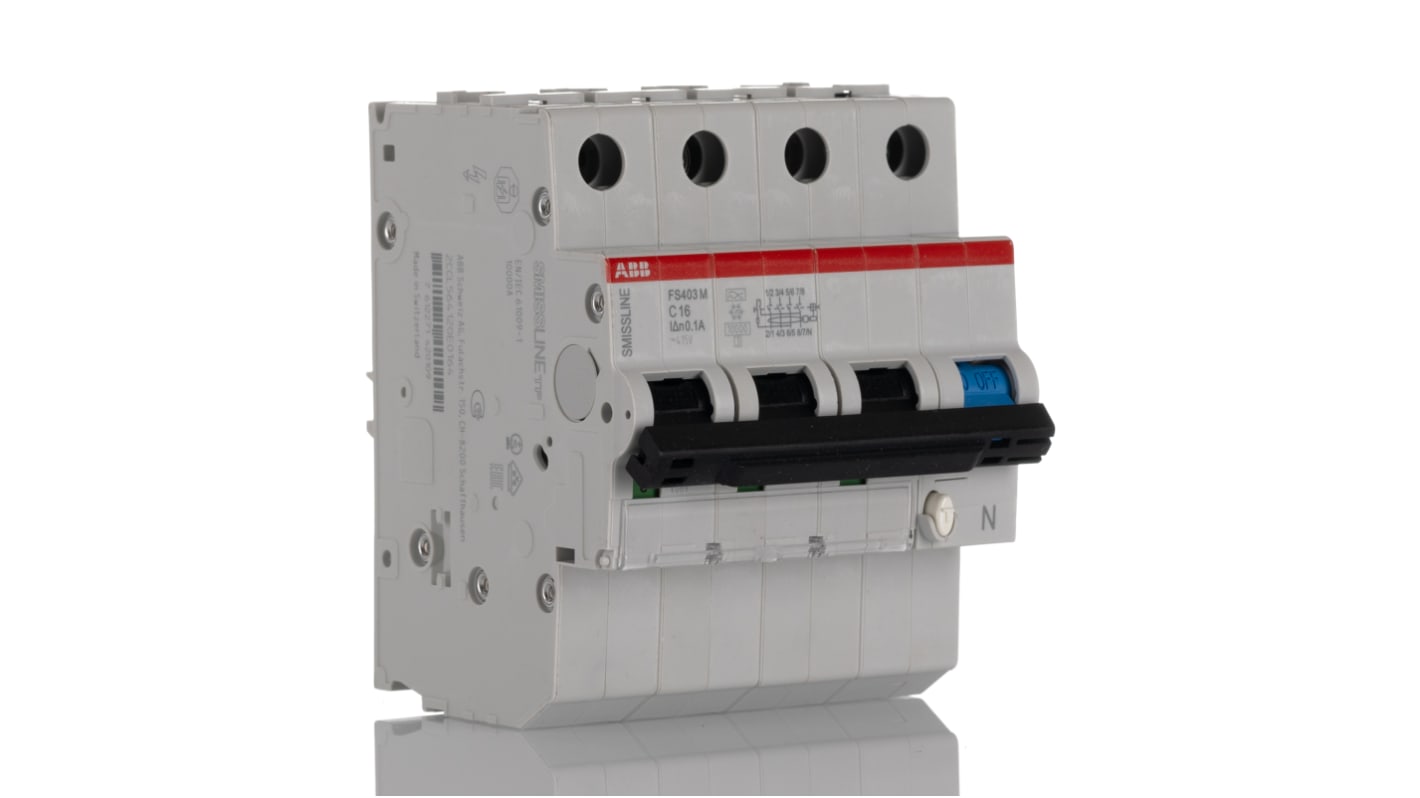

ABB FS403 Series Residual Current Circuit Breaker, 16A, 4-Pole, 100 mA, Type C, 7.5 kA 415V ac
- RS Stock No.:
- 246-2430
- Mfr. Part No.:
- 2CCG001724R0001
- Brand:
- ABB
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 246-2430
- Mfr. Part No.:
- 2CCG001724R0001
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 16A | |
| Number of Poles | 4 | |
| Range | SMISSLINE TP | |
| Series | FS403 | |
| Trip Sensitivity | 100mA | |
| Tripping Characteristics | Type C | |
| Mount Type | DIN Rail | |
| Standards/Approvals | EN, IEC, CE, RoHS | |
| Terminal Type | Screw | |
| Depth | 91mm | |
| Height | 91mm | |
| Width | 72mm | |
| Breaking Capacity | 7.5kA | |
| Earth Leakage Protection Type | Type A | |
| Reset Actuator Type | Toggle Switch | |
| Rated AC Voltage | 415V ac | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 16A | ||
Number of Poles 4 | ||
Range SMISSLINE TP | ||
Series FS403 | ||
Trip Sensitivity 100mA | ||
Tripping Characteristics Type C | ||
Mount Type DIN Rail | ||
Standards/Approvals EN, IEC, CE, RoHS | ||
Terminal Type Screw | ||
Depth 91mm | ||
Height 91mm | ||
Width 72mm | ||
Breaking Capacity 7.5kA | ||
Earth Leakage Protection Type Type A | ||
Reset Actuator Type Toggle Switch | ||
Rated AC Voltage 415V ac | ||
- COO (Country of Origin):
- CH
ABB RCCB, 16 A Current Rating, DIN Rail Mount Mounting Style - 2CCL564120E0164 FS403 M-C16/0.1 RCBO
This RCCB by ABB is a reliable circuit breaker with a current rating of 16A designed for DIN rail mounting. It belongs to the SMISSLINE TP range and features a Type C tripping characteristic. With a voltage rating of 415V AC, this RCCB ensures safety and protection in electrical installations.
Features & Benefits
• Pluggable design for easy installation and maintenance
• Trip sensitivity of 100mA for quick response to faults
• 4 poles for enhanced protection and functionality
Applications
• Ideal for use in commercial and industrial electrical systems to protect against overcurrent and residual currents
Can it be easily installed in existing setups?
Yes, it features a DIN rail mount design for convenient installation.
Will it provide protection against short circuits?
Yes, with a rated short-circuit capacity of 10kA, it ensures safety in case of faults.
Is it suitable for use in sensitive electronic equipment?
Yes, the RCCB offers reliable protection for all connected devices.
