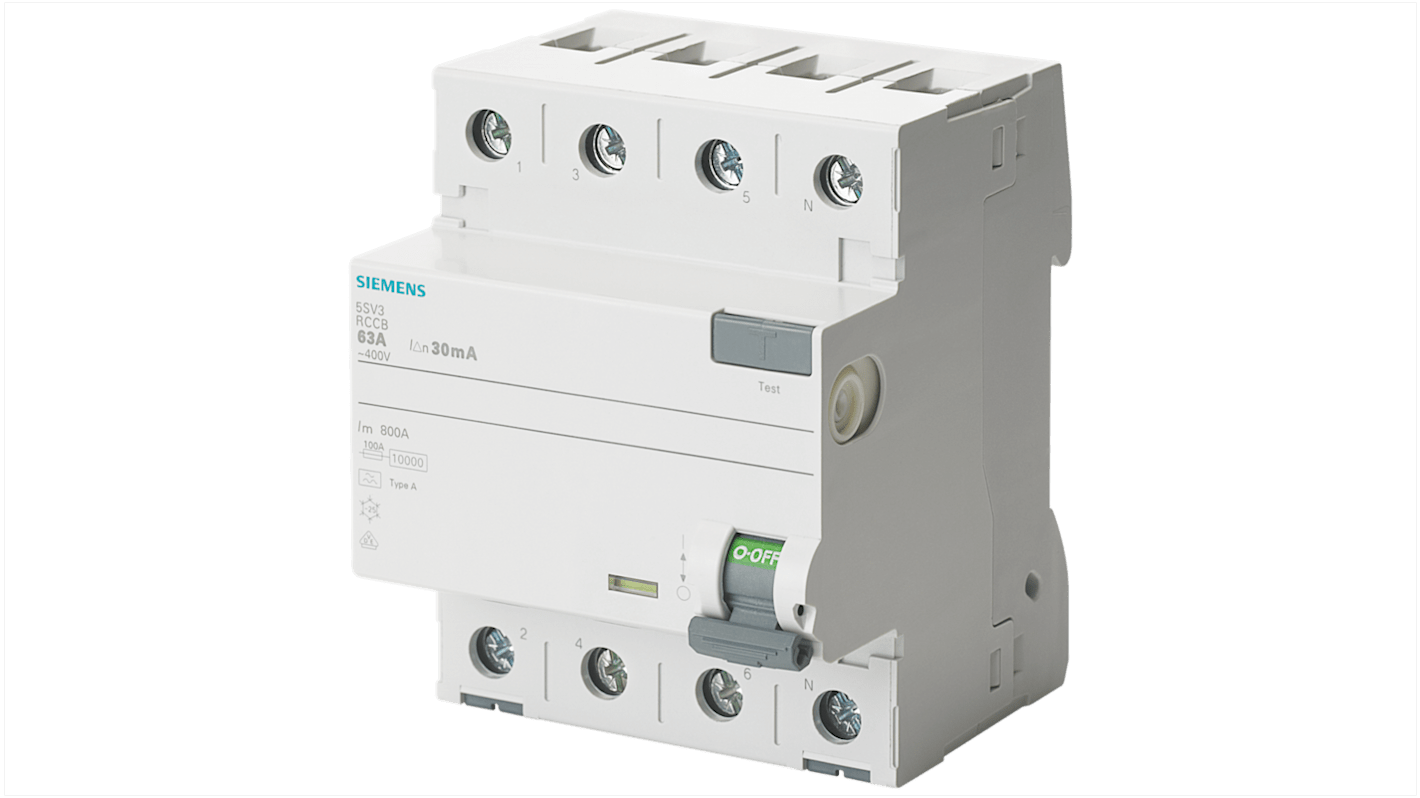

Siemens SENTRON Series Residual Current Circuit Breaker, 63A, 4-Pole, 30 mA, Type A, 10 kA 230V ac
- RS Stock No.:
- 231-8381
- Mfr. Part No.:
- 5SV3346-6GV01
- Brand:
- Siemens
Subtotal (1 pack of 18 units)*
£3,671.856
(exc. VAT)
£4,406.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 18 + | £203.992 | £3,671.86 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 231-8381
- Mfr. Part No.:
- 5SV3346-6GV01
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 63A | |
| Number of Poles | 4 | |
| Range | SENTRON | |
| Series | SENTRON | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type A | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Standards/Approvals | VDE, EAC, UKCA, CE | |
| Depth | 70mm | |
| Width | 72mm | |
| Height | 90mm | |
| Better World Product | Yes | |
| Breaking Capacity | 10kA | |
| Better World Claim | Extended Product Life | |
| Break Time | Instantaneous | |
| Earth Leakage Protection Type | Type A | |
| Reset Actuator Type | Toggle Switch | |
| Rated AC Voltage | 230V ac | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 63A | ||
Number of Poles 4 | ||
Range SENTRON | ||
Series SENTRON | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type A | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Standards/Approvals VDE, EAC, UKCA, CE | ||
Depth 70mm | ||
Width 72mm | ||
Height 90mm | ||
Better World Product Yes | ||
Breaking Capacity 10kA | ||
Better World Claim Extended Product Life | ||
Break Time Instantaneous | ||
Earth Leakage Protection Type Type A | ||
Reset Actuator Type Toggle Switch | ||
Rated AC Voltage 230V ac | ||
- COO (Country of Origin):
- DE
The Siemens 5SV3 series is the residual current operated circuit breaker having 4 pole. The tripping characteristic class of this residual current operated circuit breaker is type A and its rated current is 63A. The tripping fault current of circuit breaker is 30 mA.
IP degree of protection is IP20
Ambient temperature range is -25 °C to 45 °C
Shock resistance
Fastening method is DIN rail
