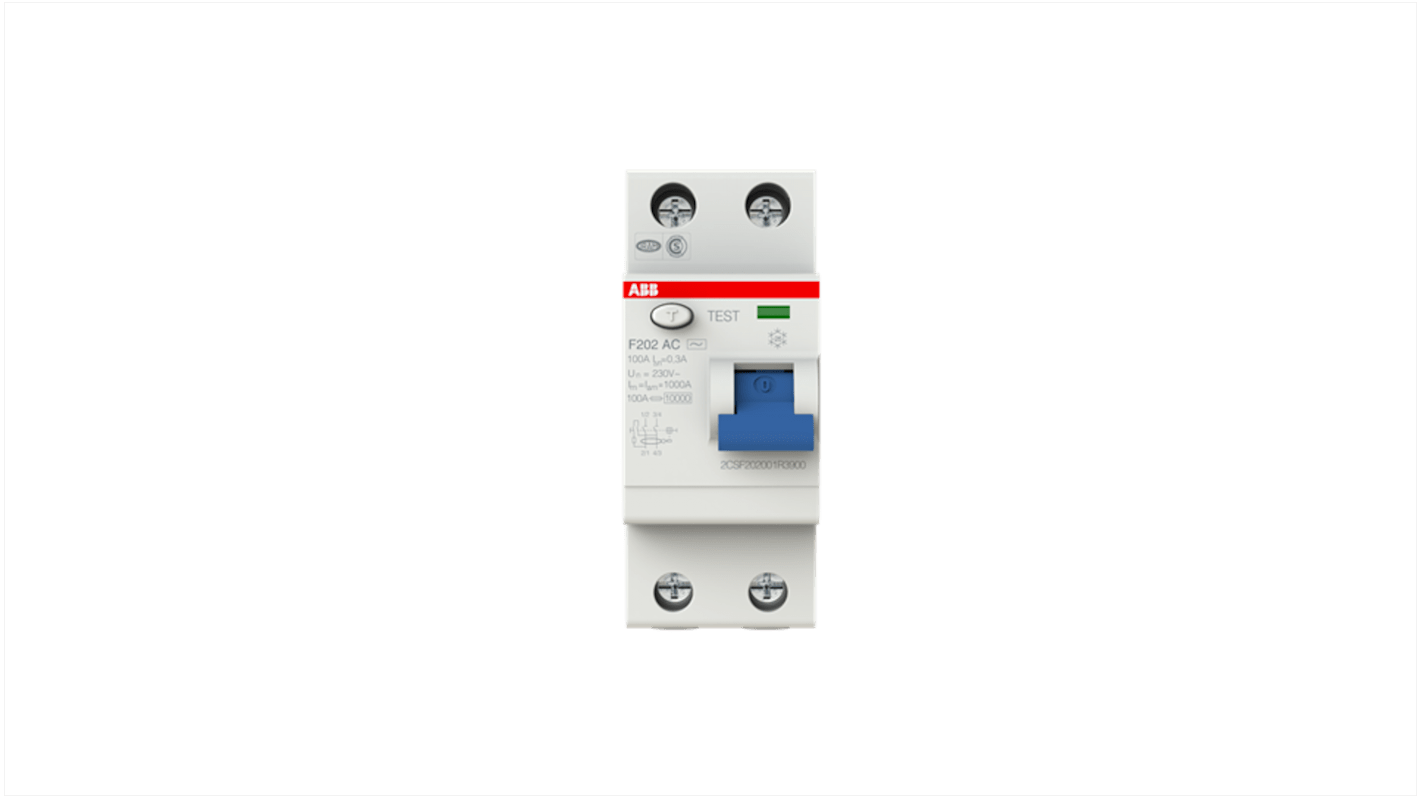

ABB F200 Series Residual Current Circuit Breaker, 100 A, 2-Pole, 300 mA, Type AC, 0.5 A 400 V ac
- RS Stock No.:
- 225-6094
- Mfr. Part No.:
- 2CSF202001R3900 F202 AC-100/0.3
- Brand:
- ABB
Subtotal (1 unit)*
£163.30
(exc. VAT)
£195.96
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £163.30 |
*price indicative
- RS Stock No.:
- 225-6094
- Mfr. Part No.:
- 2CSF202001R3900 F202 AC-100/0.3
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 100 A | |
| Number of Poles | 2 | |
| Series | F200 | |
| Range | F200 | |
| Trip Sensitivity | 300mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type AC | |
| Standards/Approvals | RoHS, CE | |
| Terminal Type | Screw | |
| Depth | 69mm | |
| Height | 85mm | |
| Width | 35 mm | |
| Breaking Capacity | 0.5A | |
| Rated AC Voltage | 400 V ac | |
| Break Time | Instantaneous | |
| Reset Actuator Type | Toggle Switch | |
| Earth Leakage Protection Type | AC | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 100 A | ||
Number of Poles 2 | ||
Series F200 | ||
Range F200 | ||
Trip Sensitivity 300mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type AC | ||
Standards/Approvals RoHS, CE | ||
Terminal Type Screw | ||
Depth 69mm | ||
Height 85mm | ||
Width 35 mm | ||
Breaking Capacity 0.5A | ||
Rated AC Voltage 400 V ac | ||
Break Time Instantaneous | ||
Reset Actuator Type Toggle Switch | ||
Earth Leakage Protection Type AC | ||
The ABB F200 series residual current circuit breaker assures protection to people and installations against fault current to earth. It detects pulsating current with DC component. It is mainly used for general applications such as industrial, household and commercial.
Degree of protection IP2X
Operating temperature range of -25 to +55 °C
Optimum frequency range of 50 to 60 Hz
DIN rail mounting
