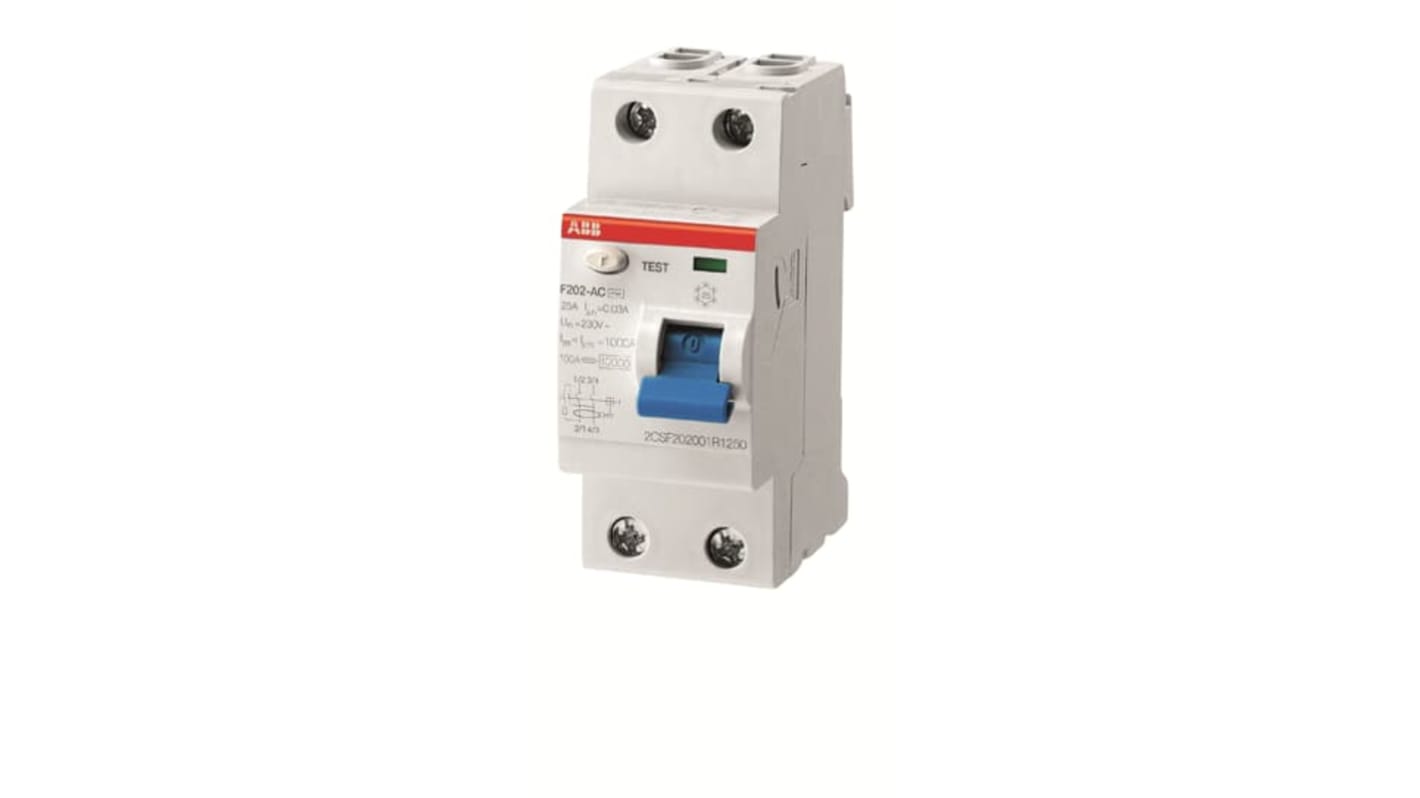

ABB F200 Series Residual Current Circuit Breaker, 80 A, 2-Pole, 100 mA, Type AC, 0.1 A 400 V ac
- RS Stock No.:
- 225-6091
- Mfr. Part No.:
- 2CSF202001R2800 F202 AC-80/0.1
- Brand:
- ABB
Subtotal (1 unit)*
£141.47
(exc. VAT)
£169.76
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £141.47 |
*price indicative
- RS Stock No.:
- 225-6091
- Mfr. Part No.:
- 2CSF202001R2800 F202 AC-80/0.1
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 80 A | |
| Number of Poles | 2 | |
| Series | F200 | |
| Range | F200 | |
| Trip Sensitivity | 100mA | |
| Tripping Characteristics | Type AC | |
| Mount Type | DIN Rail | |
| Standards/Approvals | RoHS, CE | |
| Terminal Type | Screw | |
| Height | 85mm | |
| Depth | 69mm | |
| Width | 35 mm | |
| Breaking Capacity | 0.1A | |
| Break Time | Instantaneous | |
| Rated AC Voltage | 400 V ac | |
| Earth Leakage Protection Type | AC | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 80 A | ||
Number of Poles 2 | ||
Series F200 | ||
Range F200 | ||
Trip Sensitivity 100mA | ||
Tripping Characteristics Type AC | ||
Mount Type DIN Rail | ||
Standards/Approvals RoHS, CE | ||
Terminal Type Screw | ||
Height 85mm | ||
Depth 69mm | ||
Width 35 mm | ||
Breaking Capacity 0.1A | ||
Break Time Instantaneous | ||
Rated AC Voltage 400 V ac | ||
Earth Leakage Protection Type AC | ||
Reset Actuator Type Toggle Switch | ||
The ABB F200 series residual current circuit breaker assures protection to people and installations against fault current to earth. It detects pulsating current with DC component. It is mainly used for general applications such as industrial, household and commercial.
Degree of protection IP2X
Operating temperature range of -25 to +55 °C
Optimum frequency range of 50 to 60 Hz
DIN rail mounting
