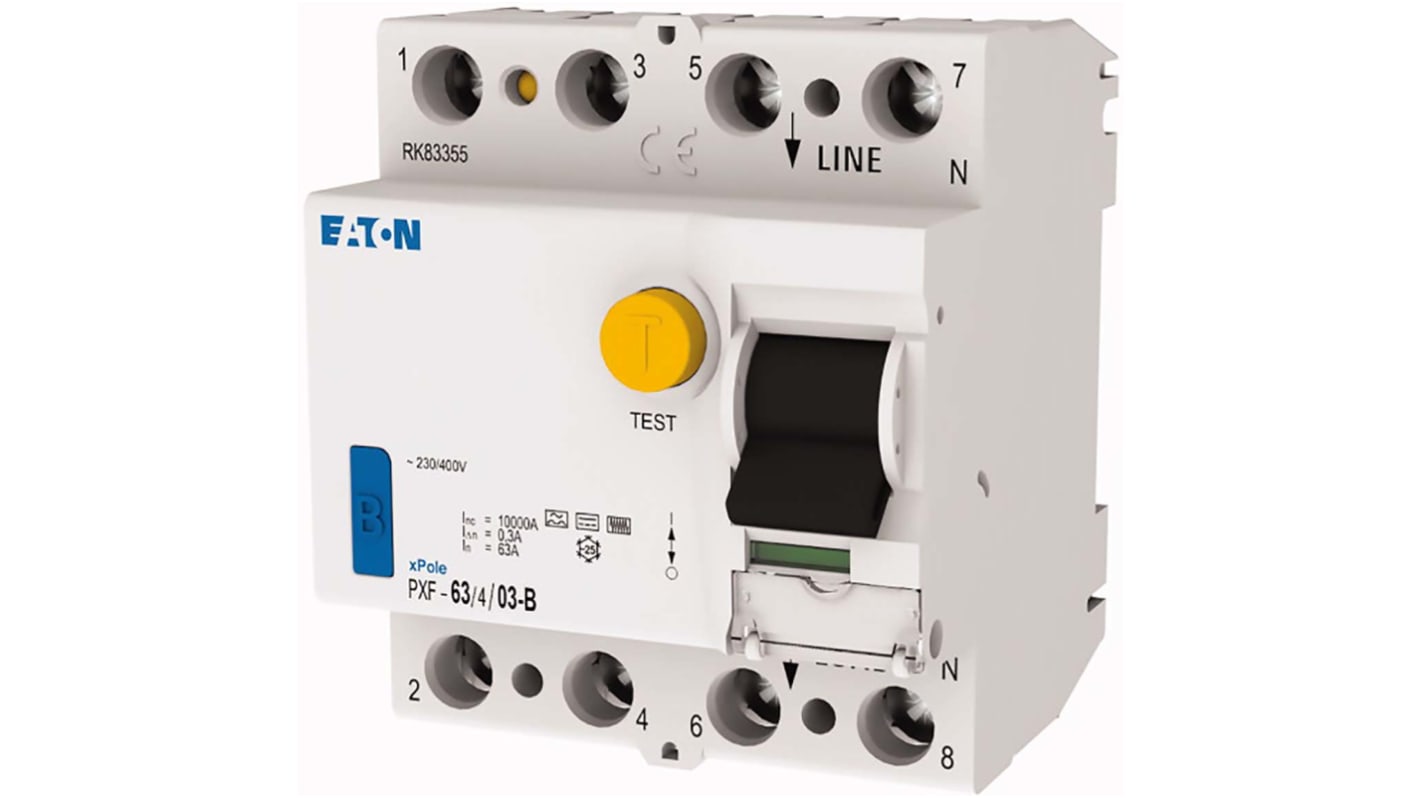

Eaton PXF Series Residual Current Circuit Breaker, 63A, 4-Pole, 300 mA, Type B, 10 kA 400V ac
- RS Stock No.:
- 203-9042
- Mfr. Part No.:
- 300303 PXF-63/4/03-B
- Brand:
- Eaton
Subtotal (1 unit)*
£527.18
(exc. VAT)
£632.62
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3 unit(s) shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £527.18 |
*price indicative
- RS Stock No.:
- 203-9042
- Mfr. Part No.:
- 300303 PXF-63/4/03-B
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 63A | |
| Number of Poles | 4 | |
| Range | PXF | |
| Series | PXF | |
| Trip Sensitivity | 300mA | |
| Tripping Characteristics | Type B | |
| Mount Type | DIN Rail | |
| Standards/Approvals | IEC/EN 61008 | |
| Terminal Type | Screw | |
| Height | 80mm | |
| Width | 70mm | |
| Depth | 70.5mm | |
| Breaking Capacity | 10kA | |
| Tripping Mechanism | Electromagnetic | |
| Break Time | Instantaneous | |
| Reset Actuator Type | Toggle Switch | |
| Rated AC Voltage | 400V ac | |
| Earth Leakage Protection Type | Type B | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 63A | ||
Number of Poles 4 | ||
Range PXF | ||
Series PXF | ||
Trip Sensitivity 300mA | ||
Tripping Characteristics Type B | ||
Mount Type DIN Rail | ||
Standards/Approvals IEC/EN 61008 | ||
Terminal Type Screw | ||
Height 80mm | ||
Width 70mm | ||
Depth 70.5mm | ||
Breaking Capacity 10kA | ||
Tripping Mechanism Electromagnetic | ||
Break Time Instantaneous | ||
Reset Actuator Type Toggle Switch | ||
Rated AC Voltage 400V ac | ||
Earth Leakage Protection Type Type B | ||
- COO (Country of Origin):
- CZ
The Eaton Residual current circuit breaker PXF, 4-pole, rated current In: 63 A, rated short-circuit strength Icn: 10 kA, rated residual current I?N: 0.3 A, switchgear for residential and commercial buildings.
AC / DC sensitive
IP40, IP54 (with moisture-proof housing)
Surge current proof 3 kA
IEC / EN 61008 and IEC / EN 62423
Note
Eaton formerly known as Moeller
