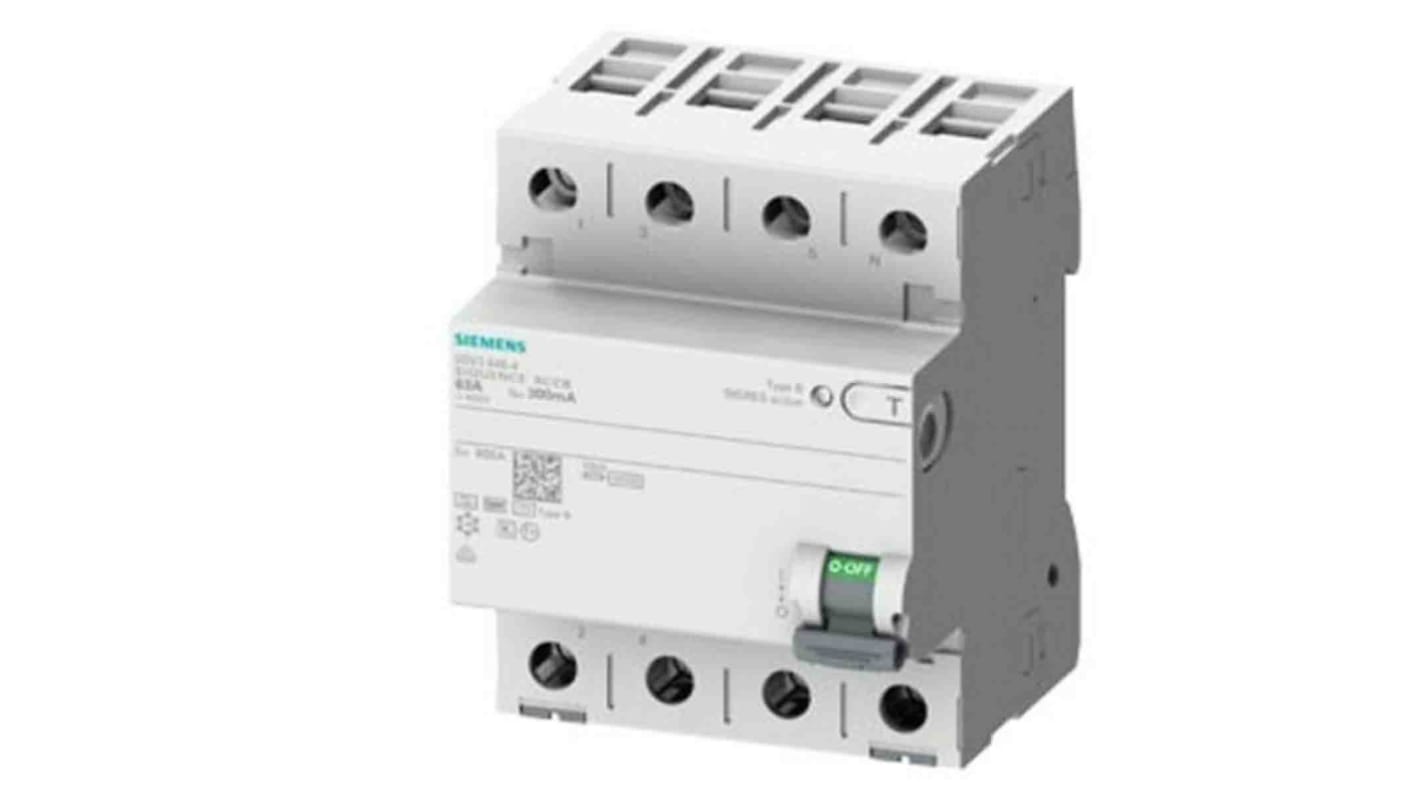

Siemens SENTRON Series Residual Current Circuit Breaker, 80A, 4-Pole, 30 mA, Type B, 10 kA 400V ac
- RS Stock No.:
- 200-6015
- Mfr. Part No.:
- 5SV3347-4
- Brand:
- Siemens
Subtotal (1 unit)*
£1,233.53
(exc. VAT)
£1,480.24
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £1,233.53 |
*price indicative
- RS Stock No.:
- 200-6015
- Mfr. Part No.:
- 5SV3347-4
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 80A | |
| Number of Poles | 4 | |
| Range | SENTRON | |
| Series | SENTRON | |
| Trip Sensitivity | 30mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type B | |
| Terminal Type | Screw | |
| Standards/Approvals | CE, UKCA, EAC, VDE | |
| Height | 90mm | |
| Depth | 70mm | |
| Width | 72mm | |
| Breaking Capacity | 10kA | |
| Rated AC Voltage | 400V ac | |
| Tripping Mechanism | Electromagnetic | |
| Reset Actuator Type | Toggle Switch | |
| Earth Leakage Protection Type | Type B | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 80A | ||
Number of Poles 4 | ||
Range SENTRON | ||
Series SENTRON | ||
Trip Sensitivity 30mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type B | ||
Terminal Type Screw | ||
Standards/Approvals CE, UKCA, EAC, VDE | ||
Height 90mm | ||
Depth 70mm | ||
Width 72mm | ||
Breaking Capacity 10kA | ||
Rated AC Voltage 400V ac | ||
Tripping Mechanism Electromagnetic | ||
Reset Actuator Type Toggle Switch | ||
Earth Leakage Protection Type Type B | ||
- COO (Country of Origin):
- DE
The Siemens 5SV3 series residual current operated circuit breaker or RCCB is suitable for personnel and fire protection. The circuit breaker is available in either 2 or 4 pole versions and each breaker can be DIN rail mounted. The 5SV3 RCCBs offer highly reliable performance and excellent quality. The break time is short-time delayed and provides protection against residual currents. It provides easy and safe installation.
Silicone Free
Instant tripping
Surge current withstand capability >1kA
Equipment life span: >10,000 switching cycles
Enclosure: IP20
Ambient temperature: -25→+45 °C
