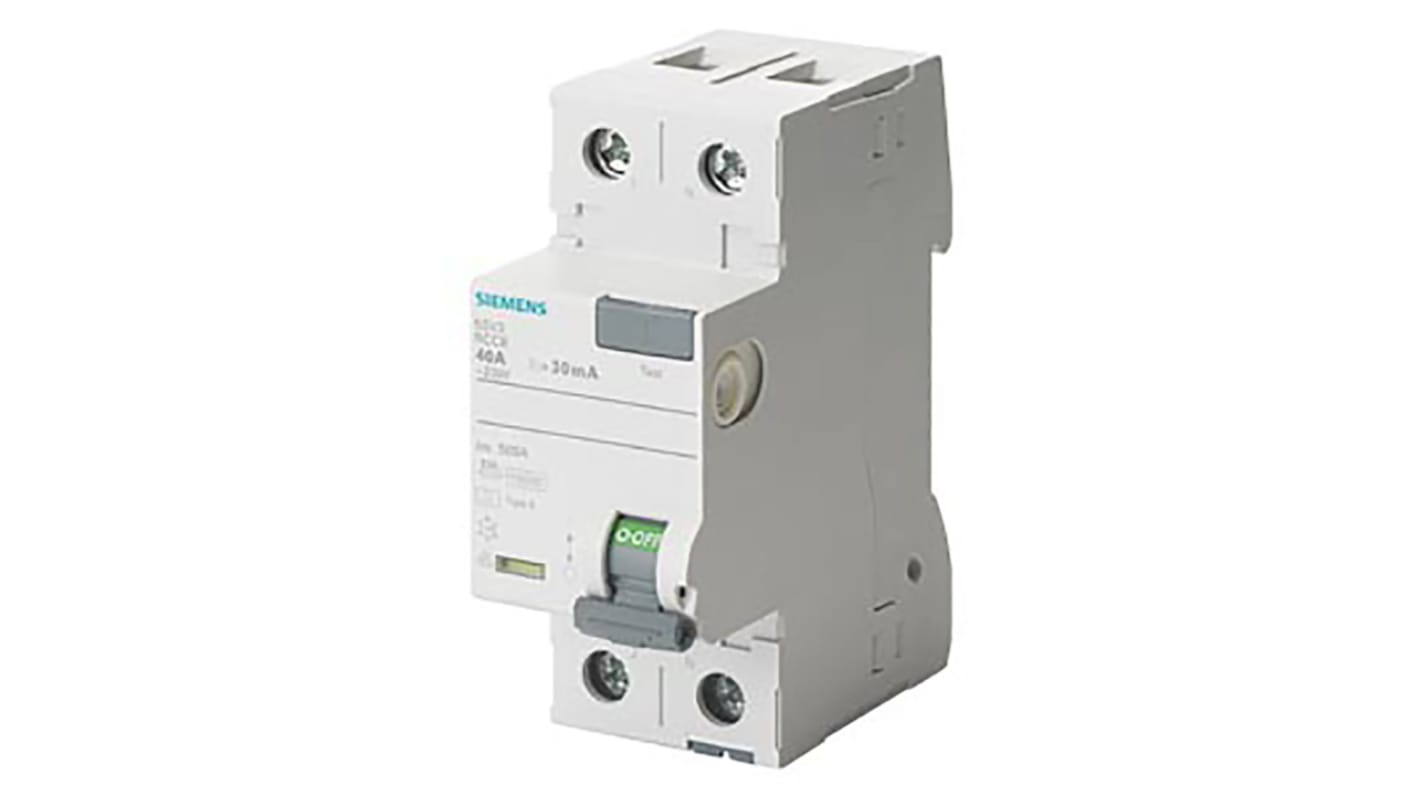

Siemens 5SV3 RCCB, 25A, 2 Pole, 300mA, Type A
- RS Stock No.:
- 124-7737
- Mfr. Part No.:
- 5SV3612-6
- Brand:
- Siemens
3 In stock for delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£85.97
(exc. VAT)
£103.16
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £85.97 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 124-7737
- Mfr. Part No.:
- 5SV3612-6
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Series 5SV3 RCCBs
From Siemens the 5SV3 series are RCCBs suitable for personnel and fire protection. Available in 2 or 4 pole versions, each breaker can be DIN rail mounted. 5SV3 RCCBs offer highly reliable performance and excellent quality.
Residual current operated circuit breaker for personnel and fire protection
Silicone free
2 or 4 pole versions available
Instant tripping, surge current withstand capability >1kA
DIN rail mounting
Equipment life span: >10,000 switching cycles
Enclosure: IP20
Ambient temperature: -25→+45 °C
Break time - instantaneous
Protection against residual currents
Easy and safe installation
Silicone free
2 or 4 pole versions available
Instant tripping, surge current withstand capability >1kA
DIN rail mounting
Equipment life span: >10,000 switching cycles
Enclosure: IP20
Ambient temperature: -25→+45 °C
Break time - instantaneous
Protection against residual currents
Easy and safe installation
Specifications
Attribute | Value |
|---|---|
| Circuit Breaker Type | RCCB |
| Current Rating | 25A |
| Number of Poles | 2 |
| Range | Sentron |
| Trip Sensitivity | 300mA |
| Tripping Characteristics | Type A |
| Series | 5SV3 |
| Better World Claim | Extended product life |
| Better World Product | Yes |
| Overall Dimensions | 35.8 x 77.2 x 89.8mm |
| Mounting Style | DIN Rail Mount |
| Terminal Contact Type | Screw |
| Overall Length | 35.8mm |
| Break Time | Instantaneous |
| Overall Width | 77.2mm |
| Overall Depth | 89.8mm |
| Rated AC Voltage | 230V |
| Reset Actuator Type | Toggle Switch |
