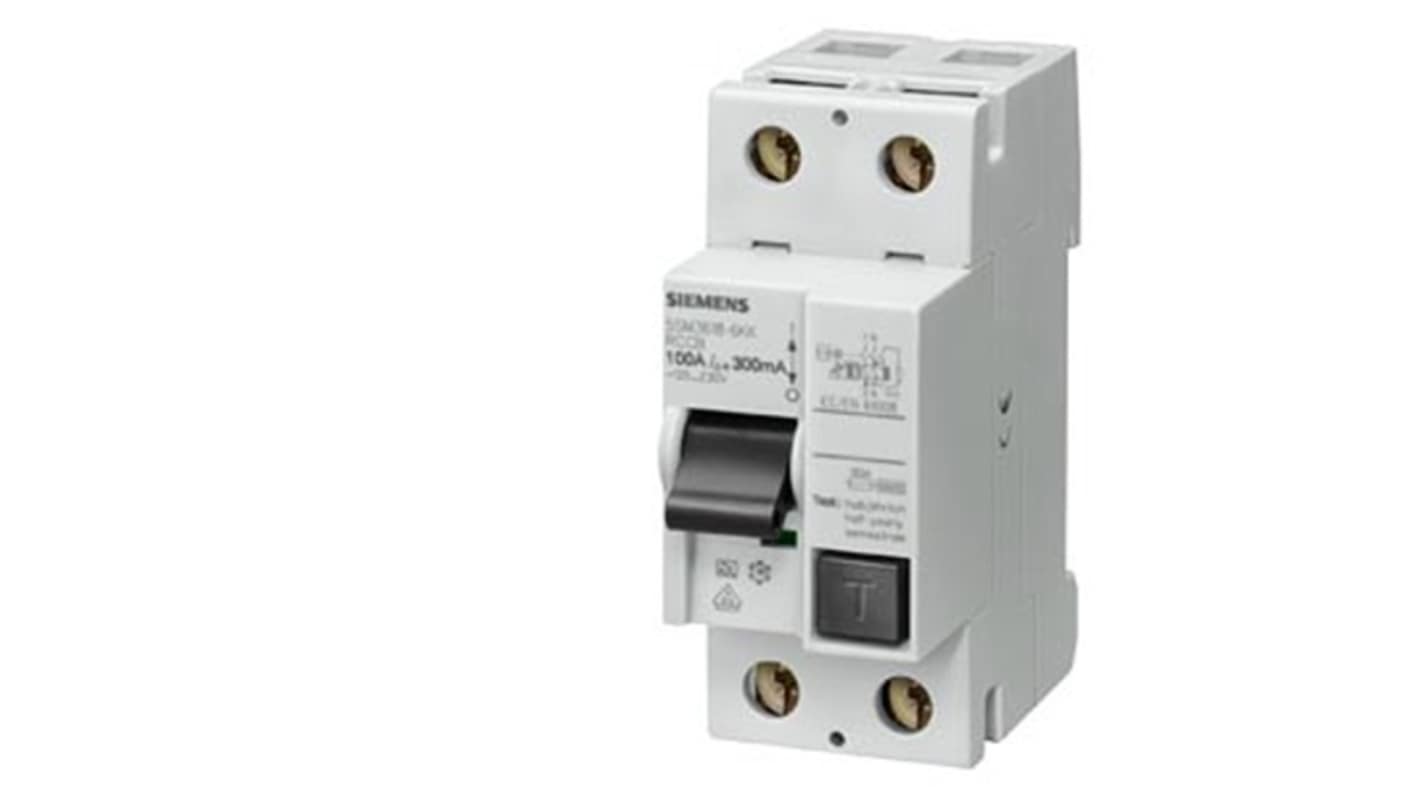

Siemens 5SM36 Series Residual Current Circuit Breaker, 100A, 2-Pole, 300 mA, Type A, 1 kA 230V ac
- RS Stock No.:
- 328-404
- Mfr. Part No.:
- 5SM3618-6KK
- Brand:
- Siemens
Subtotal (1 unit)*
£411.90
(exc. VAT)
£494.28
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £411.90 |
*price indicative
- RS Stock No.:
- 328-404
- Mfr. Part No.:
- 5SM3618-6KK
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 100A | |
| Number of Poles | 2 | |
| Series | 5SM36 | |
| Range | SENTRON | |
| Trip Sensitivity | 300mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type A | |
| Terminal Type | Screw | |
| Standards/Approvals | EAC, CE, VDE | |
| Depth | 70mm | |
| Height | 90mm | |
| Width | 36mm | |
| Breaking Capacity | 1kA | |
| Earth Leakage Protection Type | Type A | |
| Rated AC Voltage | 230V ac | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 100A | ||
Number of Poles 2 | ||
Series 5SM36 | ||
Range SENTRON | ||
Trip Sensitivity 300mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type A | ||
Terminal Type Screw | ||
Standards/Approvals EAC, CE, VDE | ||
Depth 70mm | ||
Height 90mm | ||
Width 36mm | ||
Breaking Capacity 1kA | ||
Earth Leakage Protection Type Type A | ||
Rated AC Voltage 230V ac | ||
- COO (Country of Origin):
- DE
The Siemens Residual Current Circuit Breaker designed to provide protection against residual currents. It is suitable for applications requiring high sensitivity to leakage currents. It is designed to detect and respond to sinusoidal AC residual currents. It complies with international for various electrical installations.
100A Operational current
100V Supply Voltage
IP20 protection
Dimensions are 90 x 36 x 70 mm
tripping fault current of 300 mA
2 poles
