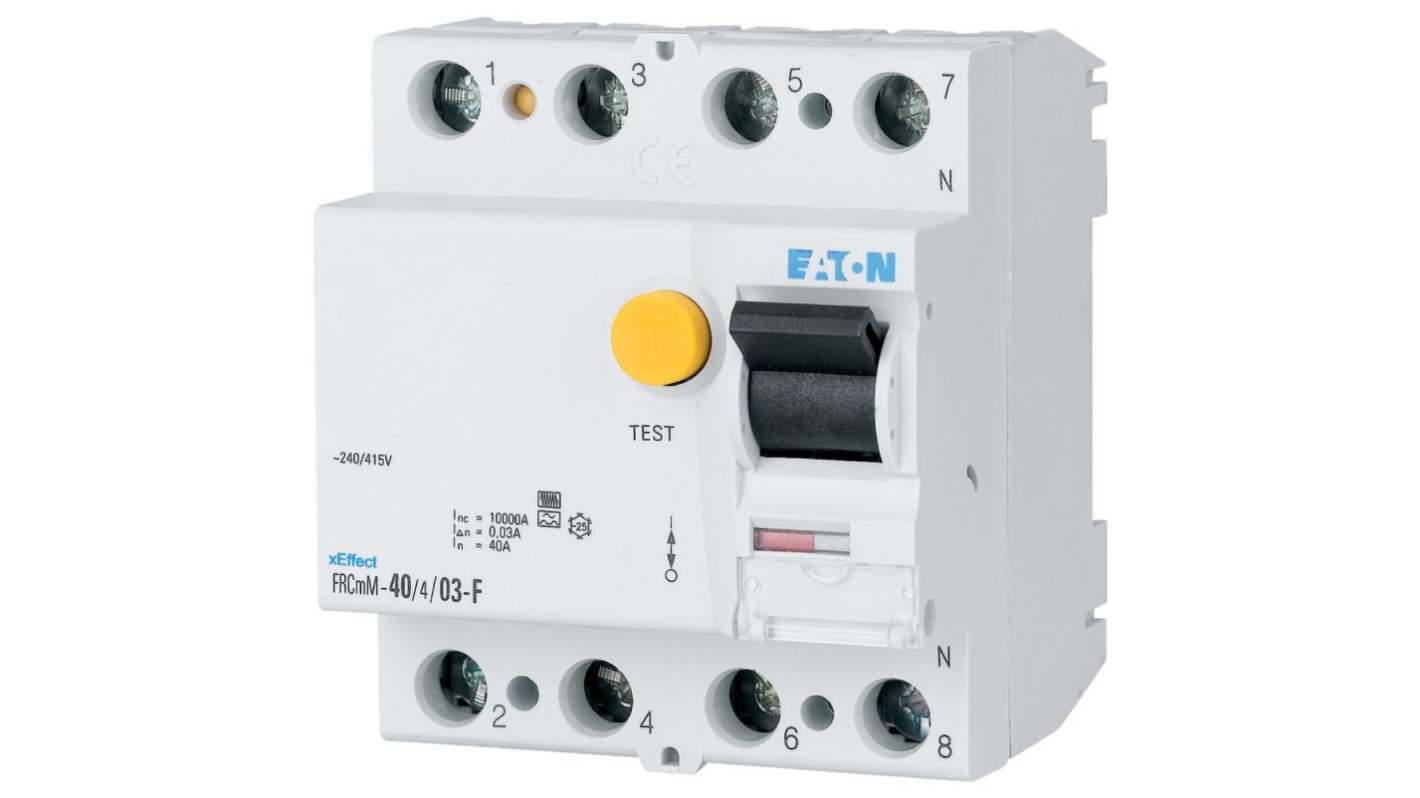

Eaton xEffect Series Residual Current Circuit Breaker, 40A, 4-Pole, 30 mA, Type F, 500 A 240V ac
- RS Stock No.:
- 246-774
- Mfr. Part No.:
- 187409 FRCMM-40/4/003-G/F
- Brand:
- Eaton
Subtotal (1 unit)*
£333.24
(exc. VAT)
£399.89
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £333.24 |
*price indicative
- RS Stock No.:
- 246-774
- Mfr. Part No.:
- 187409 FRCMM-40/4/003-G/F
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 40A | |
| Number of Poles | 4 | |
| Range | FRCmM | |
| Series | xEffect | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type F | |
| Mount Type | DIN Rail | |
| Standards/Approvals | IEC/EN 62423, IEC 61373, IEC/EN 61008, EN45545-2 | |
| Terminal Type | Twin-Purpose Terminal | |
| Width | 35mm | |
| Height | 80mm | |
| Depth | 76mm | |
| Breaking Capacity | 500A | |
| Earth Leakage Protection Type | F | |
| Break Time | 10 ms | |
| Rated AC Voltage | 240V ac | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 40A | ||
Number of Poles 4 | ||
Range FRCmM | ||
Series xEffect | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type F | ||
Mount Type DIN Rail | ||
Standards/Approvals IEC/EN 62423, IEC 61373, IEC/EN 61008, EN45545-2 | ||
Terminal Type Twin-Purpose Terminal | ||
Width 35mm | ||
Height 80mm | ||
Depth 76mm | ||
Breaking Capacity 500A | ||
Earth Leakage Protection Type F | ||
Break Time 10 ms | ||
Rated AC Voltage 240V ac | ||
- COO (Country of Origin):
- RS
The Eaton residual current circuit breaker (RCCB) incorporates advanced technology designed to enhance electrical safety. The Eaton Moeller series xEffect - FRCmM Type F ensures reliable protection against electrical faults while maintaining a compact footprint. With its four-pole configuration and superior sensitivity, this product adeptly manages residual currents and delivers a swift response to faults, making it an ideal solution for industrial and commercial applications. Its robust compliance with various international standards underscores its reliability. The integration of cutting-edge features, including pulse-current sensitivity and high short-circuit strength, positions this RCCB as an indispensable component in safeguarding electrical installations, providing peace of mind in a wide array of environments.
Offers enhanced protection with pulse-current sensitivity technology
Designed for high short-circuit strength, ensuring maximum reliability
Compact size optimises space in electrical systems
Four-pole configuration suits a variety of electrical setups
Fast tripping time enhances safety in case of faults
Durable construction meets stringent compliance requirements
Supports a wide operational voltage range, adding versatility
Facilitates easy installation on DIN rails for convenience
Mechanical and electrical longevity promises extended service life
