Schneider Electric Residual Current Circuit Breaker with Overload Protection, 20A Current Rating, 1-Pole, 10 mA Trip
- RS Stock No.:
- 790-9308
- Mfr. Part No.:
- A9D10820
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£176.61
(exc. VAT)
£211.93
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £176.61 |
*price indicative
- RS Stock No.:
- 790-9308
- Mfr. Part No.:
- A9D10820
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Current Rating | 20A | |
| Series | iC60H | |
| Range | Acti9 | |
| Number of Poles | 1 | |
| Trip Sensitivity | 10mA | |
| Tripping Characteristics | Type C | |
| Mount Type | DIN Rail | |
| Rated AC Voltage | 240V ac | |
| Terminal Type | Screw Clamp | |
| Earth Leakage Protection Type | Type A | |
| Width | 18mm | |
| Depth | 77.5mm | |
| Height | 110mm | |
| Standards/Approvals | BS EN 61009-1, IEC 61009-1, AS/NZS 61009.1, IEC 61009-2-2 | |
| Tripping Mechanism | Thermal Magnetic | |
| Application | Distribution | |
| Breaking Capacity | 10000A | |
| Reset Actuator Type | Toggle | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Current Rating 20A | ||
Series iC60H | ||
Range Acti9 | ||
Number of Poles 1 | ||
Trip Sensitivity 10mA | ||
Tripping Characteristics Type C | ||
Mount Type DIN Rail | ||
Rated AC Voltage 240V ac | ||
Terminal Type Screw Clamp | ||
Earth Leakage Protection Type Type A | ||
Width 18mm | ||
Depth 77.5mm | ||
Height 110mm | ||
Standards/Approvals BS EN 61009-1, IEC 61009-1, AS/NZS 61009.1, IEC 61009-2-2 | ||
Tripping Mechanism Thermal Magnetic | ||
Application Distribution | ||
Breaking Capacity 10000A | ||
Reset Actuator Type Toggle | ||

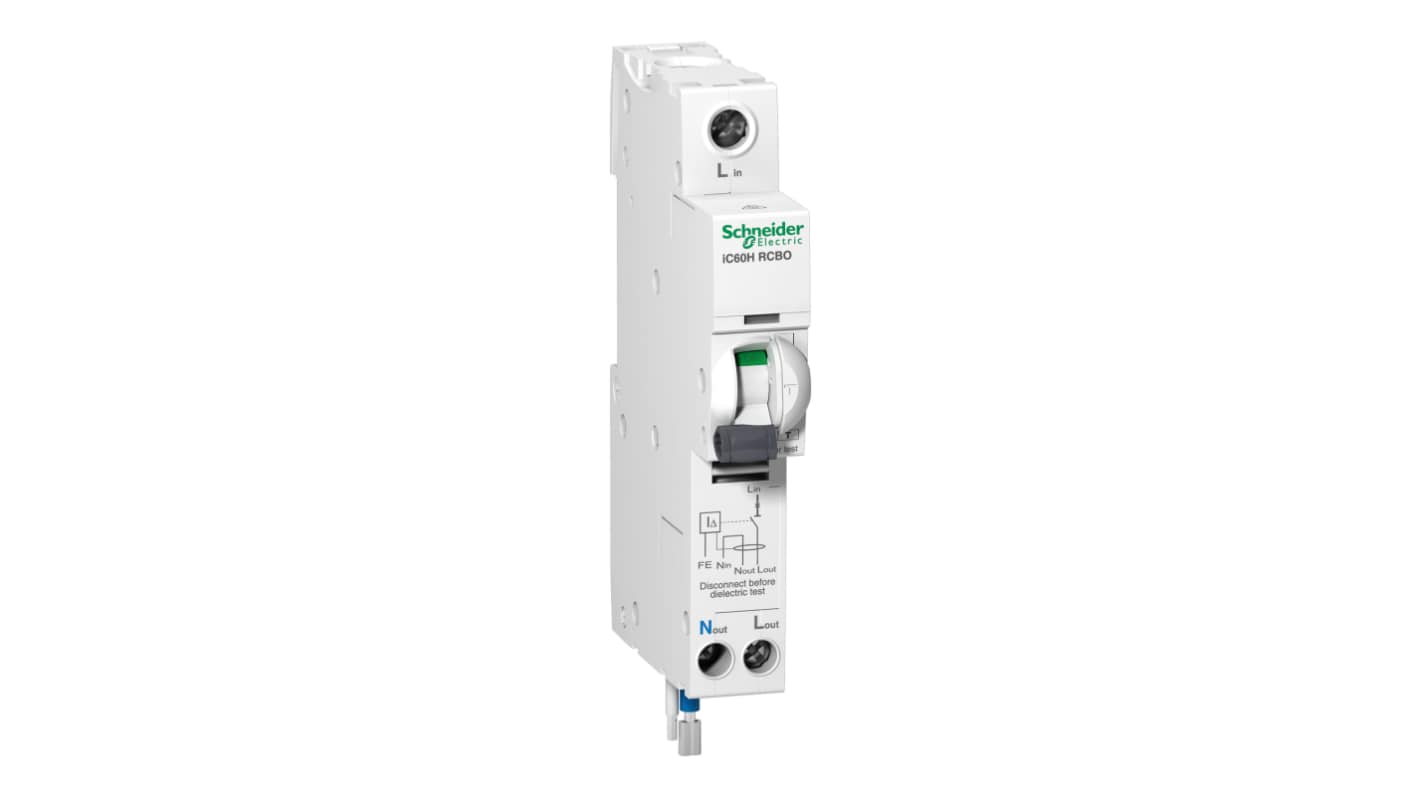

Schneider Electric iC60H Series RCBO, 20A Current Rating, 1P+N Poles - A9D10820
This RCBO is a crucial component for electrical distribution systems, specifically designed to enhance safety and reliability. With dimensions of 18 x 110 x 77.5 mm, it provides both residual current and overcurrent protection in a compact unit. This device integrates a thermal-magnetic tripping mechanism, ensuring effective operation under various conditions while meeting IEC standards.
Features & Benefits
• Offers instant tripping for swift response to faults
• Combines earth leakage and overcurrent protection
• Type C circuit breaker for swift handling of high inrush currents
• Designed for DIN rail mounting for easier installation
• Compact design enhances space efficiency in electrical panels
Applications
• Used for residential and commercial distribution boards
• Essential for protecting circuits in automation
• Suitable for installations requiring Type A earth leakage protection
• Ideal for environments with a risk of electrical faults
• Effective in systems adhering to IEC compliance standards
What capabilities does this device provide for fault protection?
It integrates both residual current and overcurrent protection, enabling rapid disconnection in fault situations, thereby enhancing overall electrical safety.
How does the tripping mechanism function in diverse conditions?
The thermal-magnetic mechanism ensures reliable operation, quickly reacting to both overload and short-circuit conditions while allowing for normal inrush currents.
What are the specific wiring capabilities for installation?
It features screw clamp terminals that can accommodate rigid and flexible cables, allowing for flexibility during installation and maintenance.
Is this device suitable for installation in various environmental conditions?
This model operates effectively within a wide temperature range of -15 to 60 °C, making it versatile across various settings.
