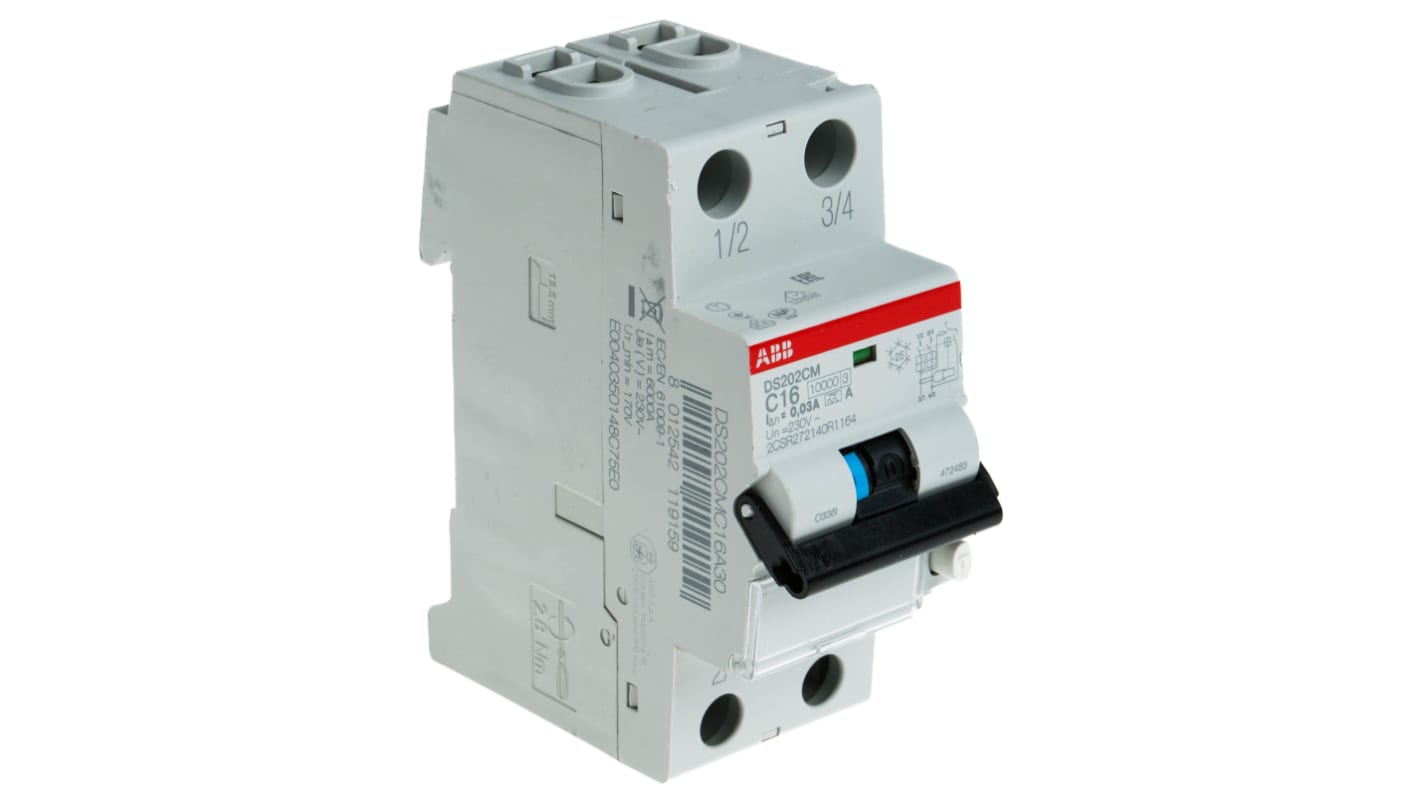

ABB RCBO, 16A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range

View all RCBOs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Siemens RCBO, 16A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type C, Sentron Range
RS Stock No.
151-1216

Each

£123.56

(exc. VAT)

£148.27

(inc. VAT)

RS Stock No.:
767-4308
Mfr. Part No.:
2CSR272140R1164 DS202C M C16 A30
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Current Rating

16A

Number of Poles

2

Trip Sensitivity

30mA

Tripping Characteristics

Type C

Range

System Pro M Compact

Circuit Breaker Type

RCBO

Series

DS202C

Mounting Style

DIN Rail Mount

Earth Leakage Protection Type

A

System Pro M Compact, 2P, Type C


A range of Residual Current Circuit-breakers with overcurrent protection and integrated in the System Pro M Compact® Range to offer complete protection in a single device.

2 Pole
C characteristic
Rated voltage of 230 Vac
DIN Mount

ABB RCBO Circuit Breaker, 2 Pole, Type C - DS202C Series - 2CSR272140R1164 DS202C M C16 A30


Choose this RCBO (residual current circuit breaker with overcurrent protection) from ABB to protect your circuits against electrical hazards. Thanks to its trip sensitivity of 30mA, it disconnects the power supply quickly in the event of a surge for enhanced safety. It features type C tripping characteristics, meaning it protects your circuits from powerful surges up to ten times greater than the breaker's 16A current rating. Its space-saving dimensions of 85 (height) x 35 (width) x 69mm (depth) make it suitable for installation in busy cabinets.

Features & Benefits


• 2-pole design protects multiple circuits for enhanced versatility
• Colour-coded contact position indicator and differential trip indicator for ease of monitoring
• Designed for DIN rail mounting for quick and simple installation
• Broad operating temperature range of -25°C to +55°C for use in demanding environments

Applications


• Domestic appliances
• Lighting systems
• Electric motors

How long will this RCBO last?


The RCBO has a robust life expectancy of 10,000 electrical cycles and 20,000 mechanical cycles, so it's a long-lasting option that minimises the need for regular replacement.


ABB RCBO's & RCCB's


RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
