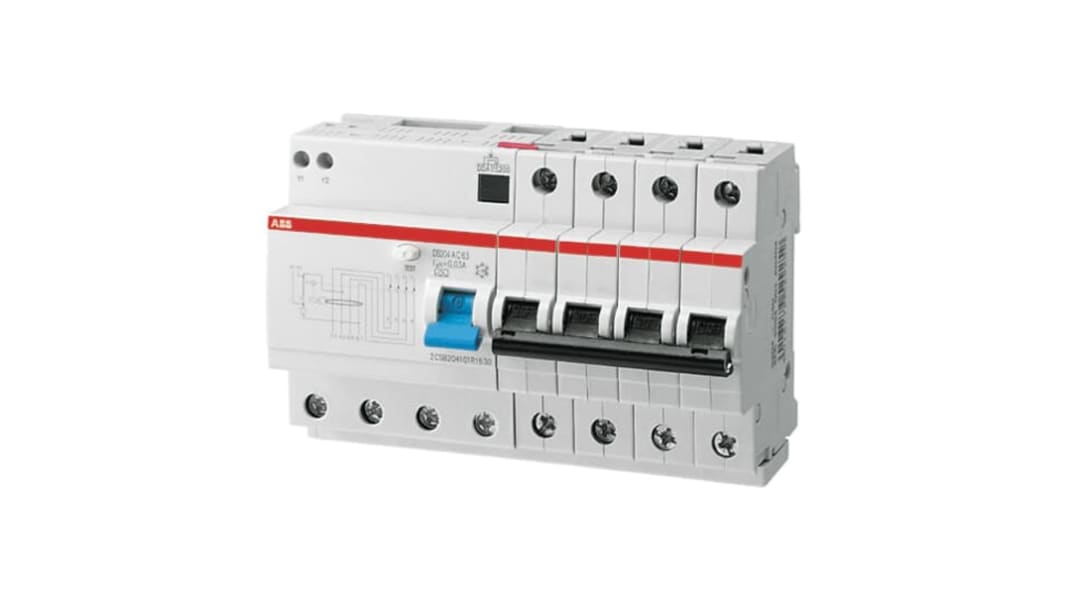

ABB Residual Current Circuit Breaker with Overload Protection, 63A Current Rating, 4-Pole, 30 mA Trip Sensitivity, Type

RS Stock No.:: 237-5106
Mfr. Part No.:: 2CSR254001R1634
Brand:: ABB

ABB Residual Current Circuit Breaker with Overload Protection, 63A Current Rating, 4-Pole, 30 mA Trip Sensitivity, Type

View all RCBOs

Subtotal (1 unit)*

£294.65

(exc. VAT)

£353.58

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

6 unit(s) shipping from 23 April 2026
Plus 6 unit(s) shipping from 14 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£294.65

*price indicative

RS Stock No.:: 237-5106
Mfr. Part No.:: 2CSR254001R1634
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Current Rating	63A
	Product Type	Residual Current Circuit Breaker with Overload Protection
	Number of Poles	4
	Series	DS200
	Trip Sensitivity	30mA
	Tripping Characteristics	Type C
	Rated AC Voltage	400V ac
	Terminal Type	Screw
	Earth Leakage Protection Type	AC
	Width	105mm
	Height	0.093m
	Depth	69mm
	Standards/Approvals	UL/CSA, IEC/EN 61009-1, IEC/EN 60947-2
	Application	Overload Protection, Residential, Short Circuit Protection
	Breaking Capacity	10kA
	Reset Actuator Type	Lever

	Select all
	Brand ABB
	Current Rating 63A
	Product Type Residual Current Circuit Breaker with Overload Protection
	Number of Poles 4
	Series DS200
	Trip Sensitivity 30mA
	Tripping Characteristics Type C
	Rated AC Voltage 400V ac
	Terminal Type Screw
	Earth Leakage Protection Type AC
	Width 105mm
	Height 0.093m
	Depth 69mm
	Standards/Approvals UL/CSA, IEC/EN 61009-1, IEC/EN 60947-2
	Application Overload Protection, Residential, Short Circuit Protection
	Breaking Capacity 10kA
	Reset Actuator Type Lever

COO (Country of Origin):: IT

ABB DS200 Series RCBO, 63A Current Rating, 30mA Trip Sensitivity - 2CSR254001R1634

This RCBO is a vital component for electrical systems, providing protection against overload and short-circuit currents. Designed to safeguard against the effects of sinusoidal alternating earth fault currents. With overall dimensions of 69 x 140 x 85mm, this device ensures reliability and safety within your circuits.

Features & Benefits

• Provides comprehensive overload and short-circuit protection

• 30mA sensitivity for enhanced earth fault protection

• Type C tripping characteristics for standard requirements

• Supports a 4-pole configuration for versatile installation

• High breaking capacity of 10kA for safety in extreme conditions

• Toggle switch reset actuator for user-friendly operation

Applications

• Ideal for residential electrical systems to enhance safety

• Suitable for commercial environments requiring circuit protection

• Used for industrial settings for reliable electrical distribution

• Recommended for automation systems needing robust protective measures

What is the operational temperature range for this device?

This device operates efficiently in temperatures ranging from -25 to +55°C, ensuring reliable performance under various environmental conditions.

How does this product ensure safety during electrical faults?

By detecting overloads and earth fault currents, it swiftly disconnects the circuit, minimising the risk of damage or injury.

What type of connections can be made for power supply?

It allows for arbitrary connections, with terminals designed for rigid and flexible wiring, accommodating multiple installation needs.

What standards does this product comply with?

It meets the IEC/BS 60947-2 and IEC/BS 61009-1 standards, ensuring high safety and operational reliability.
