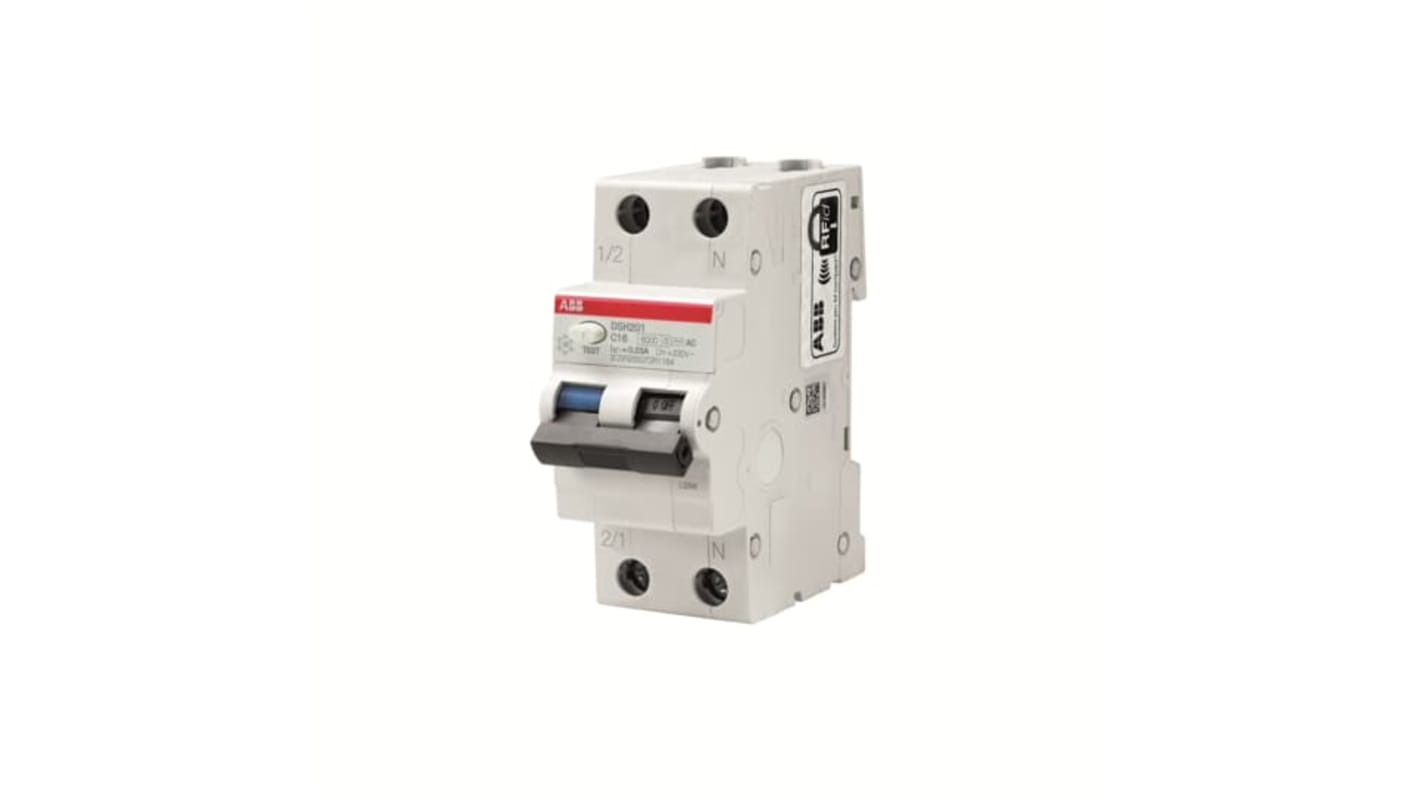

ABB RCBO, 32A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type A
- RS Stock No.:
- 231-9949
- Mfr. Part No.:
- 2CSR255170R1324 DSH201 C32 A30
- Brand:
- ABB
Subtotal (1 box of 1 unit)*
£71.23
(exc. VAT)
£85.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 17 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box |
|---|---|
| 1 + | £71.23 |
*price indicative
- RS Stock No.:
- 231-9949
- Mfr. Part No.:
- 2CSR255170R1324 DSH201 C32 A30
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Current Rating | 32A | |
| Number of Poles | 2 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type A | |
| Circuit Breaker Type | RCCB | |
| Series | DSH201 | |
| Rated AC Voltage | 230 → 240V | |
| Mounting Style | DIN Rail Mount | |
| Earth Leakage Protection Type | Type A | |
| Overall Depth | 69mm | |
| Breaking Capacity at Maximum Voltage Rating | 6 kA | |
| Overall Width | 18mm | |
| Standards Met | IEC | |
| Overall Length | 100mm | |
| Terminal Contact Type | Screw | |
| Reset Actuator Type | Toggle Switch | |
| Overall Dimensions | 69 x 18 x 100mm | |
Select all | ||
|---|---|---|
Brand ABB | ||
Current Rating 32A | ||
Number of Poles 2 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type A | ||
Circuit Breaker Type RCCB | ||
Series DSH201 | ||
Rated AC Voltage 230 → 240V | ||
Mounting Style DIN Rail Mount | ||
Earth Leakage Protection Type Type A | ||
Overall Depth 69mm | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Overall Width 18mm | ||
Standards Met IEC | ||
Overall Length 100mm | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
Overall Dimensions 69 x 18 x 100mm | ||
- COO (Country of Origin):
- IT
ABB RCBO, 32A Current Rating, 6kA Rated Short-Circuit Capacity - DSH201 Series - 2CSR255170R1324 DSH201 C32 A30
Stop sparks from flying with this 2-pole RCBO from ABB. The device combines all the benefits of RCD safety with overload and short-circuit protection to safeguard equipment and people. It immediately disconnects a power supply when a fault occurs to reduce damage and other shocking surprises. A mechanical endurance of 20,000 cycles assures you that this unit has the oomph to keep on going while calling for minimal maintenance. The small device, with space-saving dimensions of 69 (L) x 35 (W) x 85mm (H), fits easily into a busy enclosure.
Features & Benefits
• Broad operating temperature range between -25°C and +55°C for use in challenging conditions
• Power loss of 6.4W ensures it handles high electrical loads safely and reliably
• Power loss of 6.4W ensures it handles high electrical loads safely and reliably
Applications
• Medical imaging equipment
• Construction industry
• Electrical engineering
• Automated systems
• Construction industry
• Electrical engineering
• Automated systems
What tripping characteristic does this RCBO have?
This unit has type-C tripping characteristics, meaning it trips between 5 to 10 times its 32A current rating. This feature ensures the energy release is kept at a safe level, preventing harm to personnel and equipment.
How do I mount this RCBO?
Simply snap it onto a DIN rail for convenient, tool-free installation.
