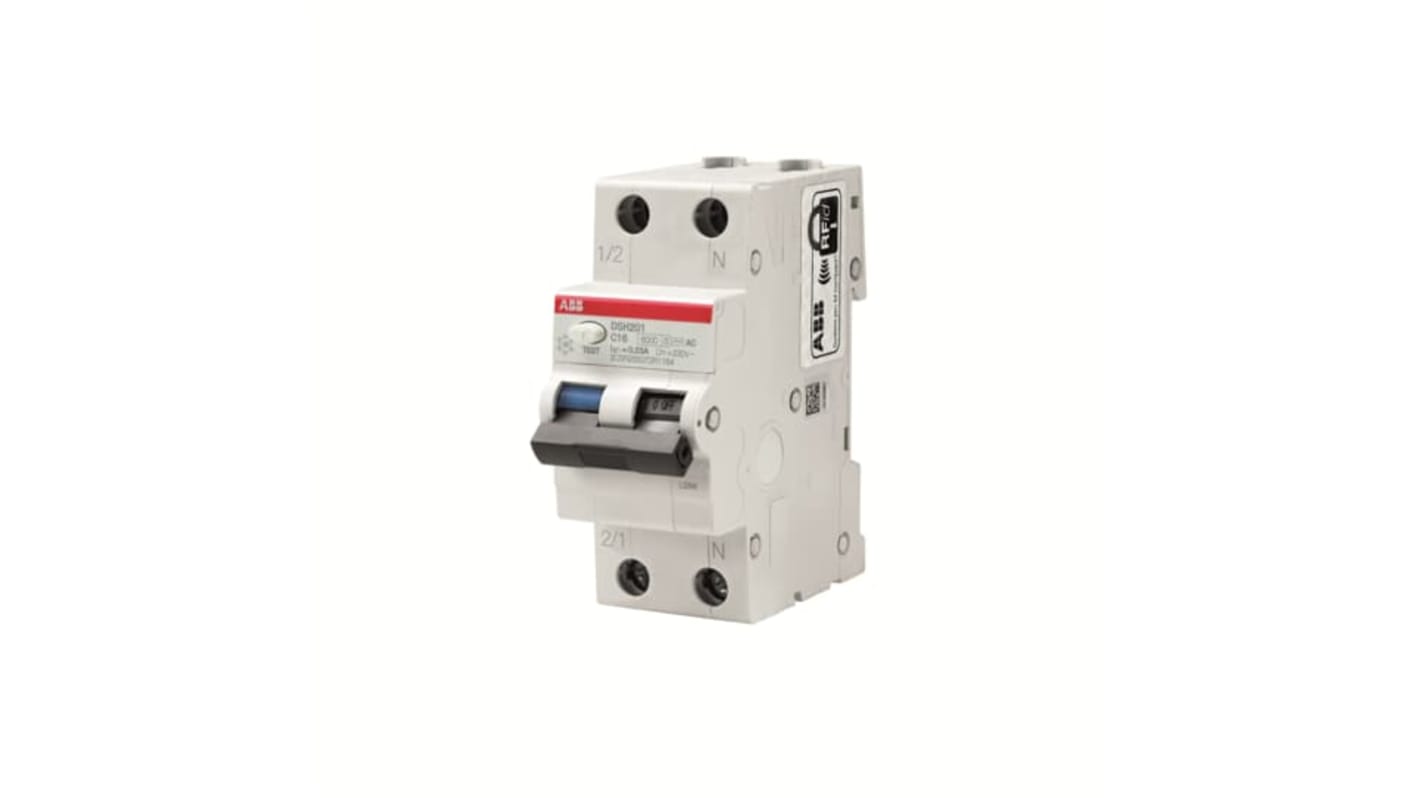

ABB Residual Current Circuit Breaker with Overload Protection, 6A Current Rating, 2-Pole, Type C, RCBO DSH201 Range,
- RS Stock No.:
- 231-9945
- Mfr. Part No.:
- 2CSR255170R1064 DSH201 C6 A30
- Brand:
- ABB
Subtotal (1 box of 1 unit)*
£71.23
(exc. VAT)
£85.48
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box |
|---|---|
| 1 + | £71.23 |
*price indicative
- RS Stock No.:
- 231-9945
- Mfr. Part No.:
- 2CSR255170R1064 DSH201 C6 A30
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Current Rating | 6A | |
| Range | RCBO DSH201 | |
| Number of Poles | 2 | |
| Series | DSH201 | |
| Tripping Characteristics | Type C | |
| Mount Type | DIN Rail | |
| Rated AC Voltage | 230V ac | |
| Terminal Type | Screw | |
| Width | 35mm | |
| Depth | 69mm | |
| Height | 85mm | |
| Breaking Capacity | 6kA | |
| Standards/Approvals | IEC, RoHS | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Current Rating 6A | ||
Range RCBO DSH201 | ||
Number of Poles 2 | ||
Series DSH201 | ||
Tripping Characteristics Type C | ||
Mount Type DIN Rail | ||
Rated AC Voltage 230V ac | ||
Terminal Type Screw | ||
Width 35mm | ||
Depth 69mm | ||
Height 85mm | ||
Breaking Capacity 6kA | ||
Standards/Approvals IEC, RoHS | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- IT
The ABB DSH201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents. The rated current of this RCBO is the 6 A.
Ambient air temperature for operation is -25 to 55 °
Din rail mounting
