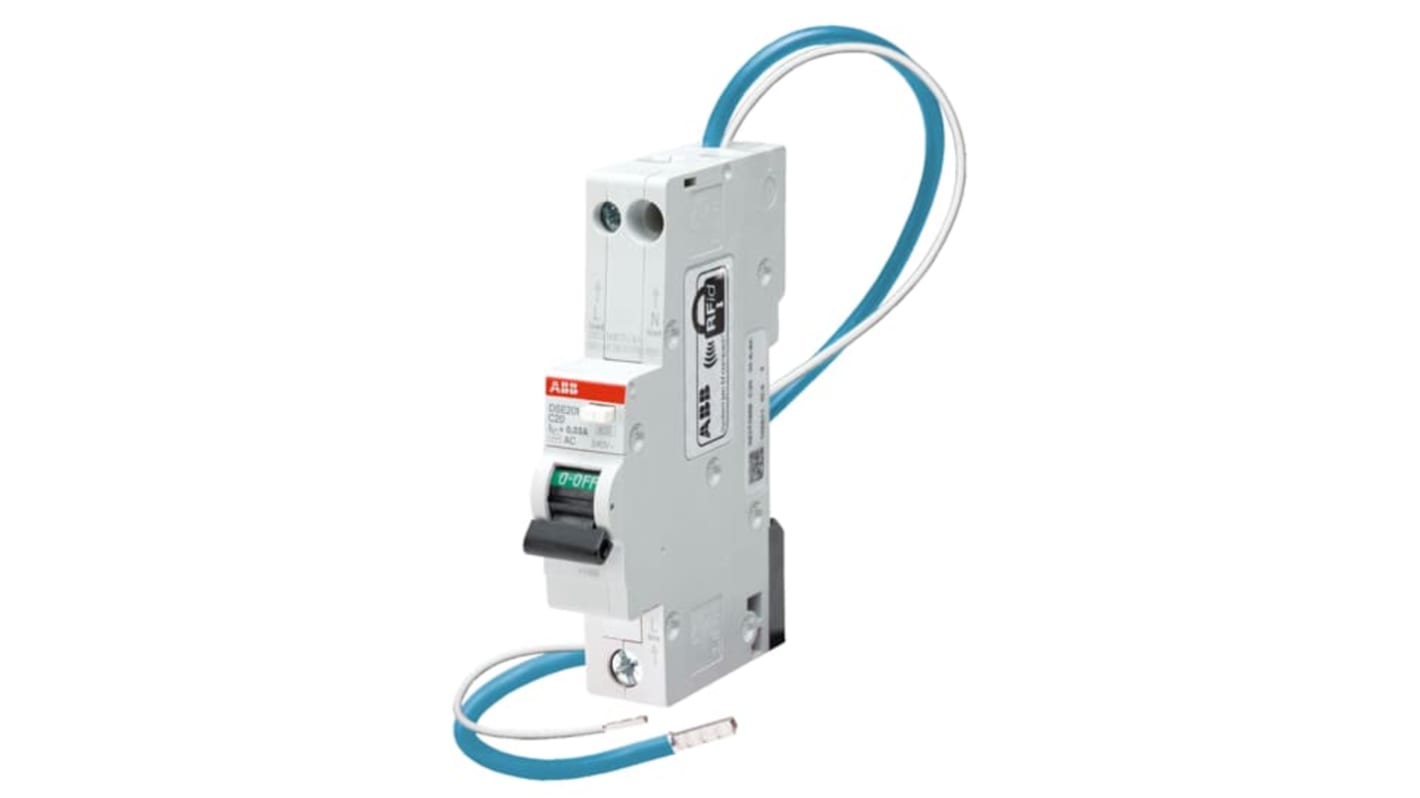

ABB Residual Current Circuit Breaker with Overload Protection, 6 A Current Rating, 2-Pole, 30 mA Trip Sensitivity, Type

View all RCBOs

Subtotal (1 unit)*

£62.73

(exc. VAT)

£75.28

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 3 unit(s) shipping from 09 April 2026
  • Plus 8 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£62.73

*price indicative

RS Stock No.:
231-9928
Mfr. Part No.:
2CSR255151R1064 DSE201 C6 A30
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Current Rating

6 A

Product Type

Residual Current Circuit Breaker with Overload Protection

Number of Poles

2

Range

RCBO DSE201

Series

DSE201

Trip Sensitivity

30mA

Tripping Characteristics

Type C

Mount Type

DIN Rail

Rated AC Voltage

230 V ac

Terminal Type

Screw

Earth Leakage Protection Type

Type A

Width

18 mm

Height

100mm

Depth

69mm

Tripping Mechanism

Thermal Magnetic

Breaking Capacity

6kA

Standards/Approvals

RoHS, IEC

COO (Country of Origin):
IT
The ABB DSE201 is a 1P+N residual current circuit breaker with overcurrent protection in one module for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts. The DSE201 is equipped with supply neutral wire and functional earth wire. The rated current of this RCBO is the 6 A.

Ambient air temperature for operation is -25 to 55 °

Din rail mounting
