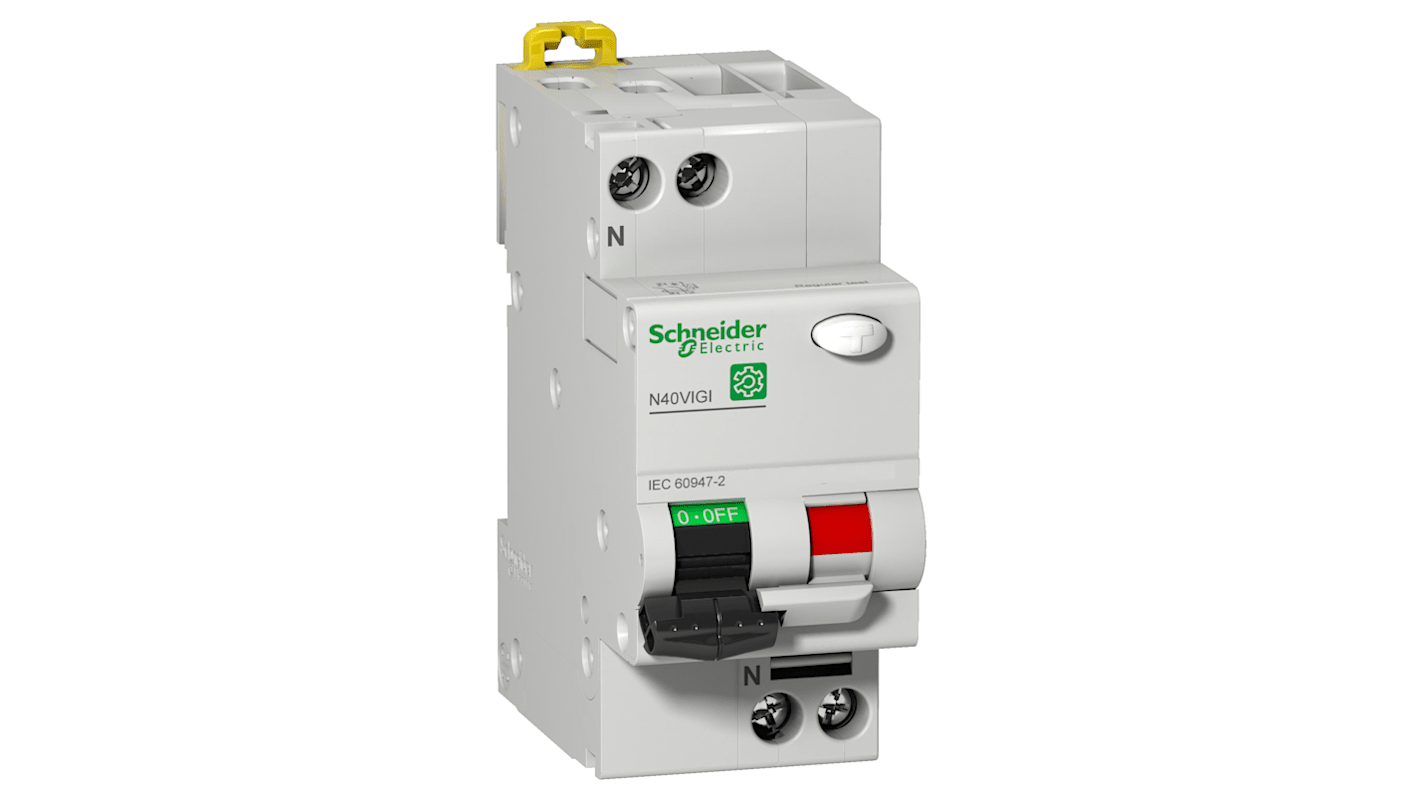

Schneider Electric RCBO, 6A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type C, Multi 9 Range
- RS Stock No.:
- 214-2050
- Mfr. Part No.:
- M9D11606
- Brand:
- Schneider Electric
1 In stock - FREE next working day delivery available
5 available from Europe for delivery within 2 working day(s).
Price Each
£193.99
(exc. VAT)
£232.79
(inc. VAT)
Units | Per unit |
---|---|
1 - 9 | £193.99 |
10 + | £155.19 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 214-2050
- Mfr. Part No.:
- M9D11606
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- ES
Product Details
The Schneider Electric N40 Vigi series have RCBO having 6 A rated operating current and its used for the distribution application. This RCBO have thermal magnetic trip unit technology with C curve code. This RCBO have toggle control type with din rail mounting.
IP degree of protection is IP20 and IP40
Ambient air temperature for operation is -5 to 60 °C
Ambient air temperature for operation is -5 to 60 °C
Specifications
Attribute | Value |
---|---|
Current Rating | 6A |
Number of Poles | 1 |
Trip Sensitivity | 30mA |
Tripping Characteristics | Type C |
Range | Multi 9 |
Circuit Breaker Type | RCBO |
Series | N40 Vigi |
Rated AC Voltage | 240V |
Mounting Style | DIN Rail Mount |
Earth Leakage Protection Type | AC |
Better World Product | Yes |
Better World Verification | Green Premium |
Overall Dimensions | 70 x 36 x 81mm |
Overall Depth | 70mm |
Overall Width | 36mm |
Reset Actuator Type | Toggle Switch |
