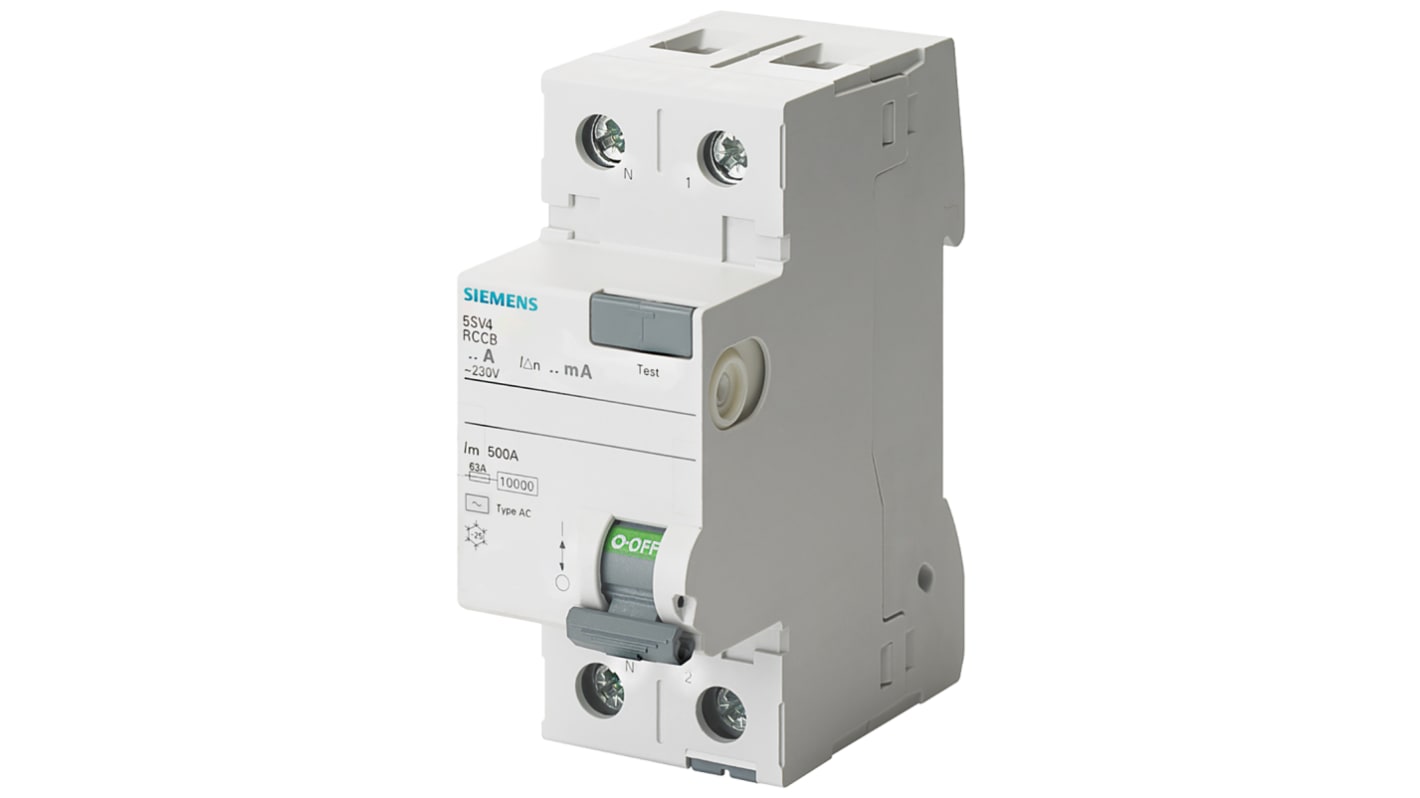

Siemens Residual Current Circuit Breaker with Overload Protection, 25 A Current Rating, 2-Pole, 30 mA Trip Sensitivity,
- RS Stock No.:
- 196-3616
- Mfr. Part No.:
- 5SV43120KL
- Brand:
- Siemens
Subtotal (1 unit)*
£140.55
(exc. VAT)
£168.66
(inc. VAT)
Add 1 unit to get free delivery
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £140.55 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 196-3616
- Mfr. Part No.:
- 5SV43120KL
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Current Rating | 25 A | |
| Series | 5SV4 | |
| Range | SENTRON | |
| Number of Poles | 2 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type AC | |
| Mount Type | DIN Rail | |
| Rated AC Voltage | 230 V ac | |
| Earth Leakage Protection Type | AC | |
| Depth | 70mm | |
| Height | 90mm | |
| Width | 36 mm | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life | |
| Reset Actuator Type | Toggle Switch | |
| Standards/Approvals | IEC 61008-1 | |
| Breaking Capacity | 10kA | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Current Rating 25 A | ||
Series 5SV4 | ||
Range SENTRON | ||
Number of Poles 2 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type AC | ||
Mount Type DIN Rail | ||
Rated AC Voltage 230 V ac | ||
Earth Leakage Protection Type AC | ||
Depth 70mm | ||
Height 90mm | ||
Width 36 mm | ||
Better World Product Yes | ||
Better World Claim Extended Product Life | ||
Reset Actuator Type Toggle Switch | ||
Standards/Approvals IEC 61008-1 | ||
Breaking Capacity 10kA | ||
- COO (Country of Origin):
- DE
Residual current operated Circuit breaker, 2-pole, Type AC, In: 25 A, 30 mA, Un AC: 230 V, N left
