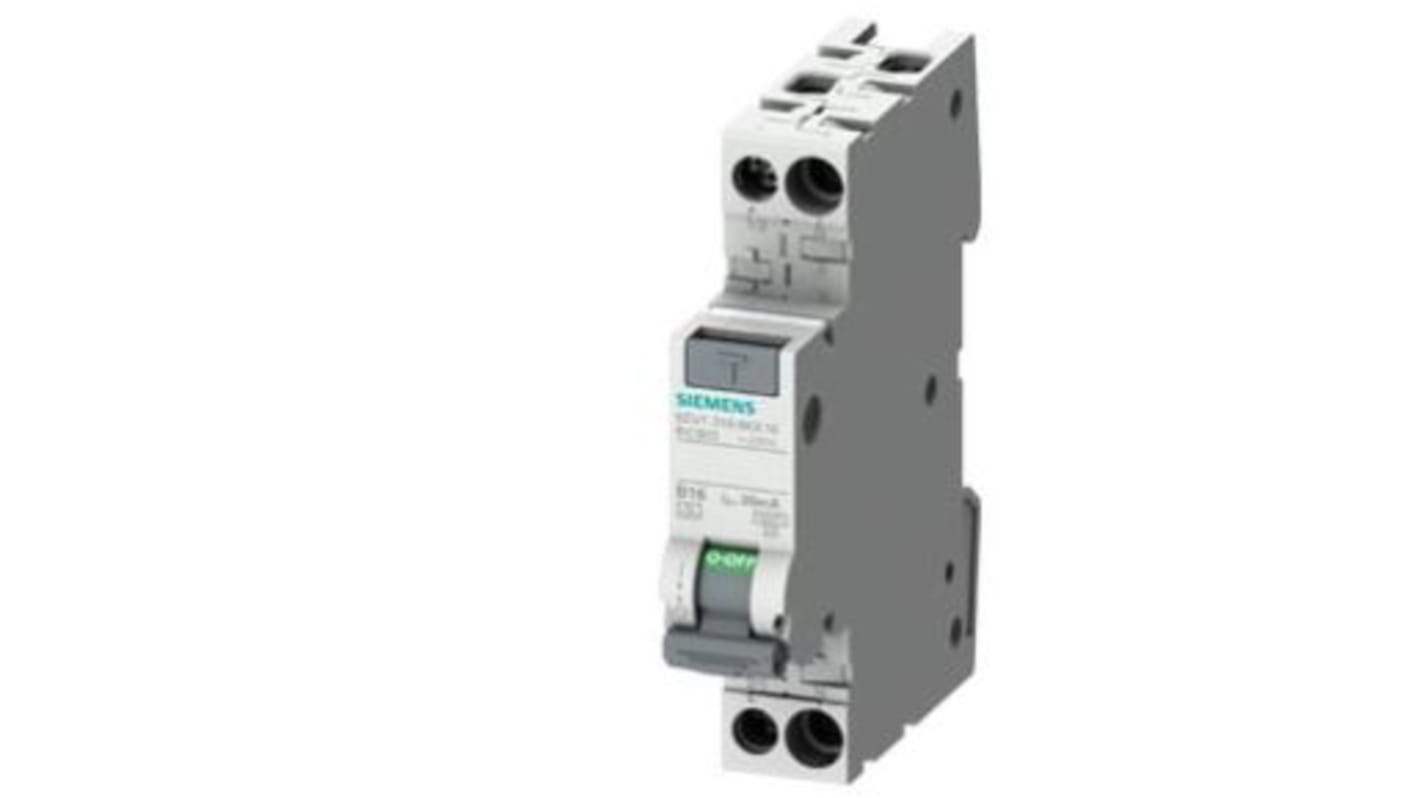

Siemens Residual Current Circuit Breaker with Overload Protection, 13A Current Rating, 2-Pole, 30 mA Trip Sensitivity,

View all RCBOs

Subtotal (1 unit)*

£136.28

(exc. VAT)

£163.54

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 3 unit(s) shipping from 18 May 2026
  • Plus 57 unit(s) shipping from 18 May 2026
  • Plus 5 unit(s) shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£136.28

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
187-3288
Distrelec Article No.:
301-49-285
Mfr. Part No.:
5SV1316-7KK13
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Product Type

Residual Current Circuit Breaker with Overload Protection

Current Rating

13A

Number of Poles

2

Range

SENTRON

Series

5SV1316

Trip Sensitivity

30mA

Tripping Characteristics

Type C

Mount Type

DIN Rail

Rated AC Voltage

230V

Terminal Type

Screw

Earth Leakage Protection Type

Type A

Width

18mm

Height

90mm

Depth

77mm

Better World Product

Yes

Better World Claim

Concentrated or Compact Solution, Extended Product Life, Low Carbon Manufacture

Standards/Approvals

No

Breaking Capacity

6kA

COO (Country of Origin):
RO

Siemens 5SV1316 Series Residual Current Circuit Breaker with Overload Protection, 13A Current, 30mA Trip Sensitivity - 5SV1316-7KK13


This residual current circuit-breaker with overload protection provides combined earth-fault detection and overcurrent interruption for single-phase installations. Designed for DIN-rail fitting in distribution boards, it protects circuits by disconnecting on residual currents and instantaneous overloads while supporting AC supply systems at 230V and 50 Hz.

Features & Benefits


• Type A detection with 30 mA sensitivity for AC and pulsating faults
• 6 kA breaking capacity to limit fault energy and damage
• Type C instantaneous tripping for moderate inrush current tolerance
• Two-pole design enabling simultaneous live and NEUTRAL switching
• Screw terminals accepting up to 16mm² for robust conductor connections
• Compact width of 18mm conserving panel space

Applications


• Suitable for residential distribution boards requiring earth-leakage protection
• Ideal for small commercial installations with single-phase circuits
• Used for protecting lighting and socket circuits with moderate inrush currents
• Can be used for retrofit projects where DIN-rail mounting is required

What is the expected mechanical service life under normal switching?


The device is rated for approximately 10,000 switching cycles in typical mechanical operation.

How does ambient temperature affect rated current-carrying capability?


The rated 13A current is derated progressively with temperature, for example to about 12.35A at 40 °C and to about 10.01A at 70 °C.

What installation orientations and clearances are supported?


It may be mounted in any position on a standard DIN rail and offers IP20 protection when installed with conductors connected inside a distribution enclosure.

Which surge and switching performance figures are relevant for coordination?


Surge resistance is about 1 kA for an 8/20 μs waveform and switching capacities include 6 kA per EN 60898 and 15 kA per IEC 60947-2.

What conductor preparations and tightening parameters are required?


Stranded conductors up to 16mm² and finely stranded with ferrules up to 10mm² are acceptable and Terminal screws should be tightened to between 1.2 and 2 N·m.
