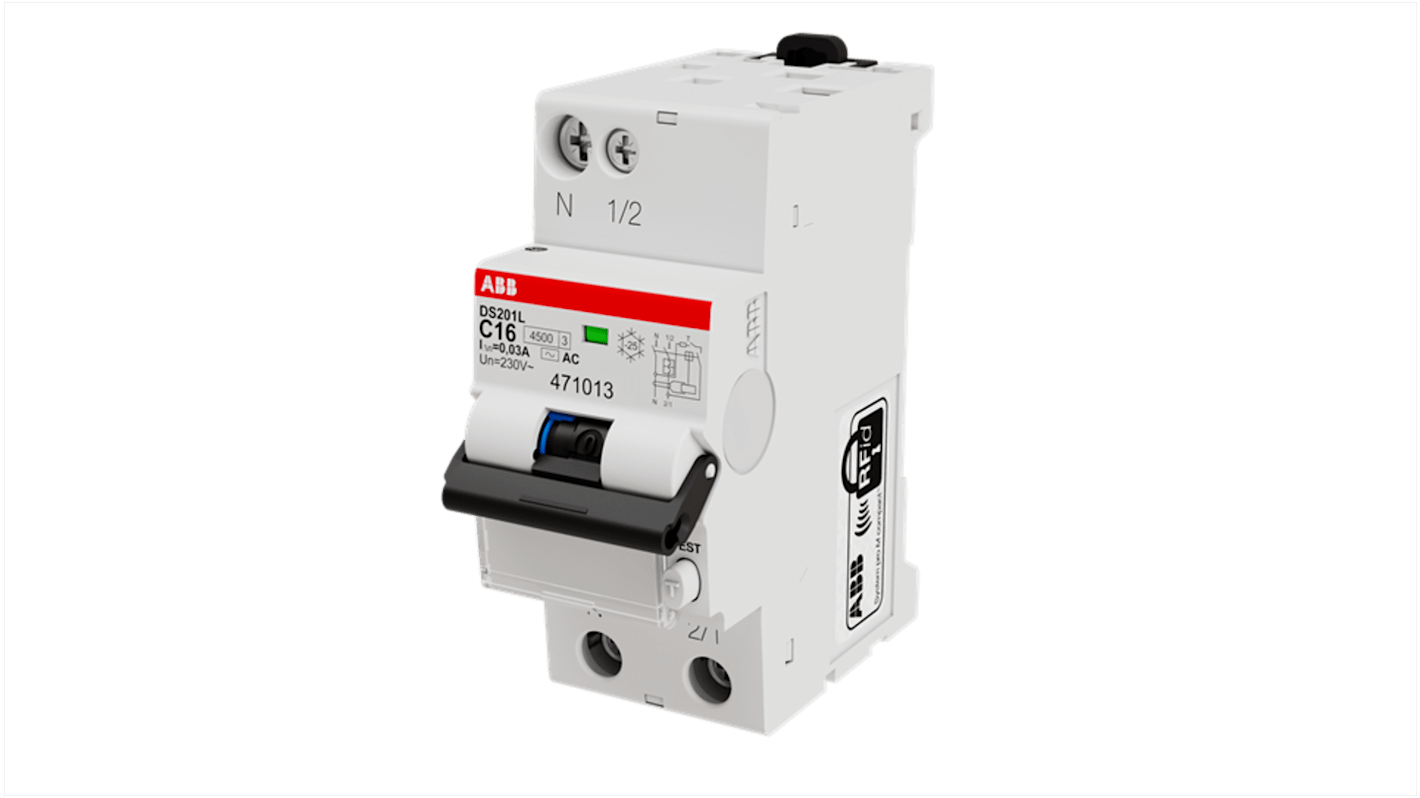

ABB RCBO, 16A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C

View all RCBOs

Subtotal (1 unit)*

£96.32

(exc. VAT)

£115.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 24 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£96.32

*price indicative

RS Stock No.:
183-3701
Mfr. Part No.:
2CSR245041R1164
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Current Rating

16A

Number of Poles

1P+N

Series

DS201

Circuit Breaker Type

RCBO

Trip Sensitivity

30mA

Tripping Characteristics

Type C

Rated AC Voltage

230 → 240V

Mounting Style

DIN Rail Mount

Overall Depth

85mm

Breaking Capacity at Maximum Voltage Rating

4.5 kA

Overall Width

69mm

Overall Length

35mm

COO (Country of Origin):
IT

ABB RCBO, Type C Tripping Characteristics, 30mA Trip Sensitivity - DS201 Series - 471013


Current surges and short circuits in your machines are no match for this RCBO from ABB. If the current flow becomes imbalanced, it reacts instantly and shuts off power to the attached circuit. In the event of an earth leakage fault, this trusty unit is also on hand to shield you from electric shocks. You'll find it's a cinch to mount – just snap it onto a DIN rail. With its mechanical endurance rating of 20,000 cycles, this device will keep up with a demanding system even in the face of tough conditions.

Features & Benefits


• Current rating of 16A to withstand high-power systems
• Broad operating temperature range between -25°C and +55°C for safe use in harsh industrial environments
• Compact dimensions of 35 (L) x 68 (W) x 85mm (D) to fit in cramped spaces

Applications


• Storage facilities
• Construction equipment
• Medical centres
• Assembly plants

What's meant by a type C RCBO?


A type C RCBO trips at between 5 and 10 times its current rating, making it suitable for equipment with high inductive loads that are likely to experience current surges.
