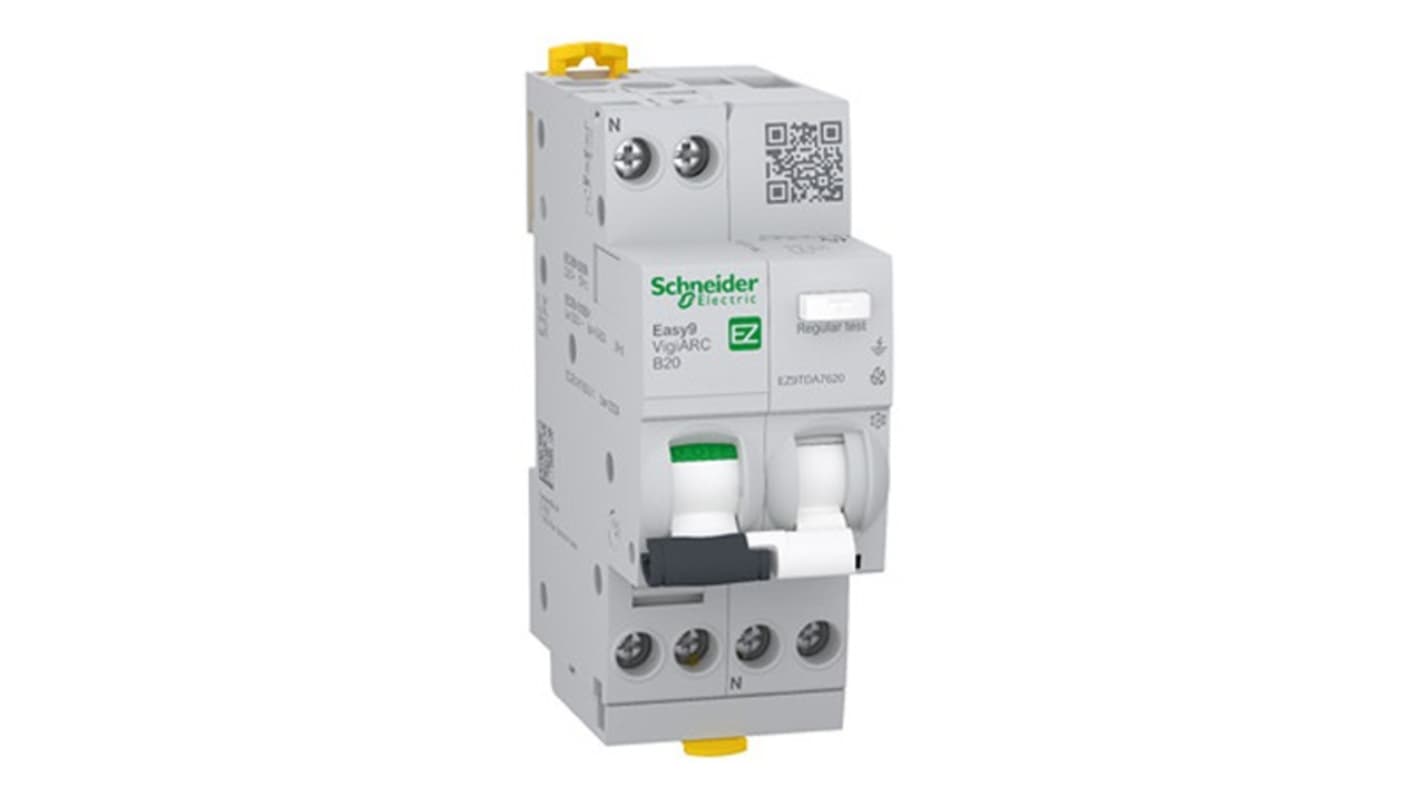

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 20A Current Rating, 1-Pole, 30 mA Trip
- RS Stock No.:
- 654-698
- Mfr. Part No.:
- EZ9TDA7620
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£177.24
(exc. VAT)
£212.69
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £177.24 |
*price indicative
- RS Stock No.:
- 654-698
- Mfr. Part No.:
- EZ9TDA7620
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Current Rating | 20A | |
| Number of Poles | 1 | |
| Range | Easy9 | |
| Series | VigiARC | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type B | |
| Mount Type | DIN Rail | |
| Rated AC Voltage | 250V ac | |
| Terminal Type | Tunnel | |
| Earth Leakage Protection Type | A-SI | |
| Height | 91mm | |
| Width | 36mm | |
| Depth | 73mm | |
| Standards/Approvals | EN/IEC 62606, RoHS, EN/IEC 61009-2-1, EN/IEC 61009-1 | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Current Rating 20A | ||
Number of Poles 1 | ||
Range Easy9 | ||
Series VigiARC | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type B | ||
Mount Type DIN Rail | ||
Rated AC Voltage 250V ac | ||
Terminal Type Tunnel | ||
Earth Leakage Protection Type A-SI | ||
Height 91mm | ||
Width 36mm | ||
Depth 73mm | ||
Standards/Approvals EN/IEC 62606, RoHS, EN/IEC 61009-2-1, EN/IEC 61009-1 | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- RO
The Schneider Electric Easy9 VigiARC product is an arc fault detection RCBO. It is a 1P+N with 1 protected pole, 20A In rated current and B tripping curve. The earth-leakage protection class is A-SI (Super Immunized) type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated breaking capacity is up to 6000A at 230VAC with operating frequency of 50Hz conforming to IEC 61009-2-1 standard. The Icu rated breaking capacity is up to 10kA at 230VAC with operating frequency of 50Hz conforming to EN/IEC 60947-2 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It has 2 unique VisiTrip indicators reduce intervention time by showing the faulty circuit and identifying quickly the type of default. It is visible on the toggle of the device in the front face. This product also comes with LED for arc fault diagnostic.
All-in-one protection in a simplified and compact form
Get an easy diagnosis through the diagnostic LED
All in one stand alone device
