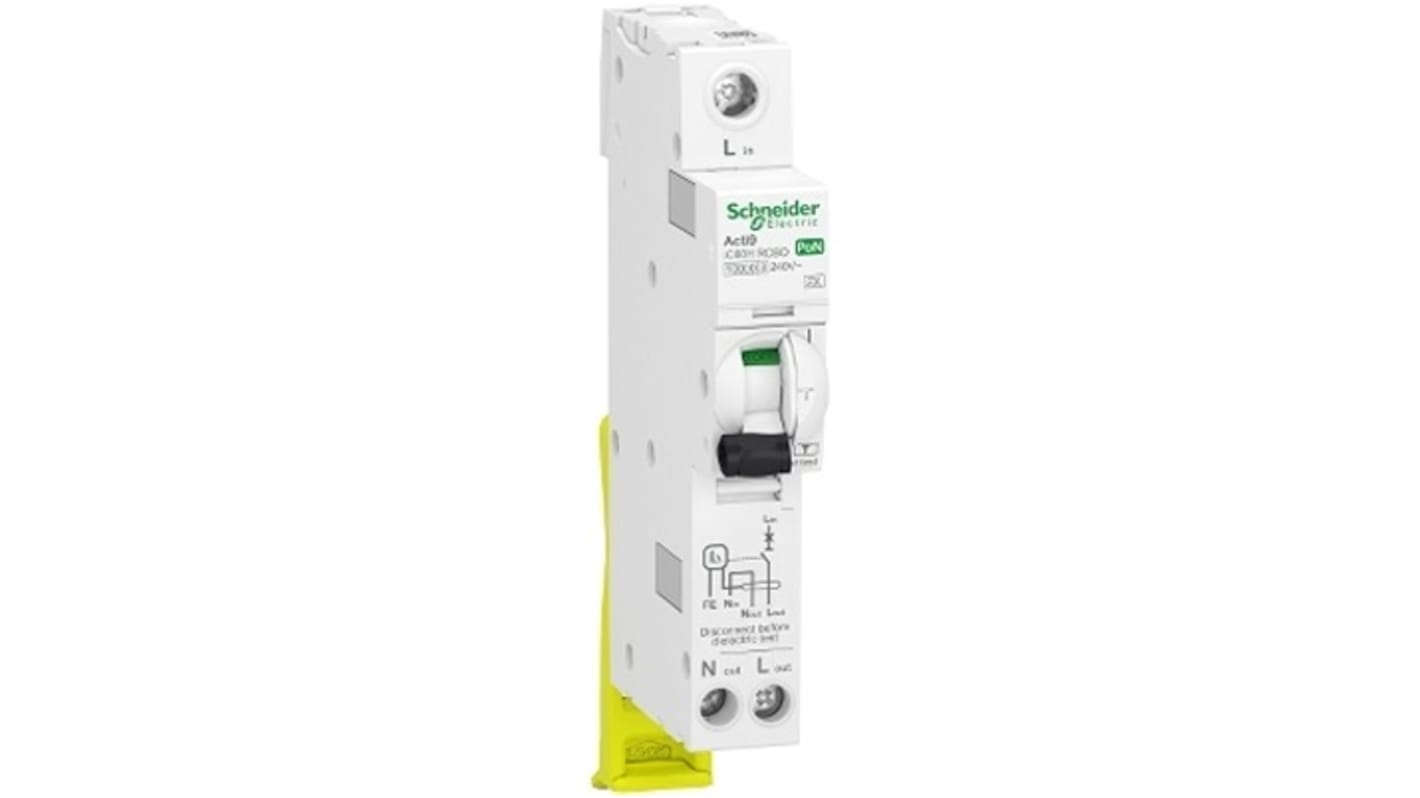

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 20 A Current Rating, 1-Pole, 20000 mA Trip

View all RCBOs

Subtotal (1 unit)*

£174.38

(exc. VAT)

£209.26

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 18 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£174.38

*price indicative

RS Stock No.:
245-081
Mfr. Part No.:
A9D01820
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Residual Current Circuit Breaker with Overload Protection

Current Rating

20 A

Number of Poles

1

Range

Acti9

Trip Sensitivity

20000mA

Tripping Characteristics

Type C

Rated AC Voltage

240 V ac

Terminal Type

Screw Clamp

Earth Leakage Protection Type

Type A

Width

18 mm

Depth

72mm

Height

110mm

Application

Distribution

Breaking Capacity

10000A

Standards/Approvals

IEC 61009-1 CB, BS EN 61009-1 IEC 61009-2-2

RoHS Status: Exempt

COO (Country of Origin):
ES
The Schneider Electric Modular Residual Current Breaker with overcurrent protection. It is a 1P+Ns circuit breaker with 1 protected pole, 20A In rated current and C tripping curve. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with IEC 61009-2-2 and IEC 61009-1 standards.

RoHS compliant

Mercury free

Green Premium product
