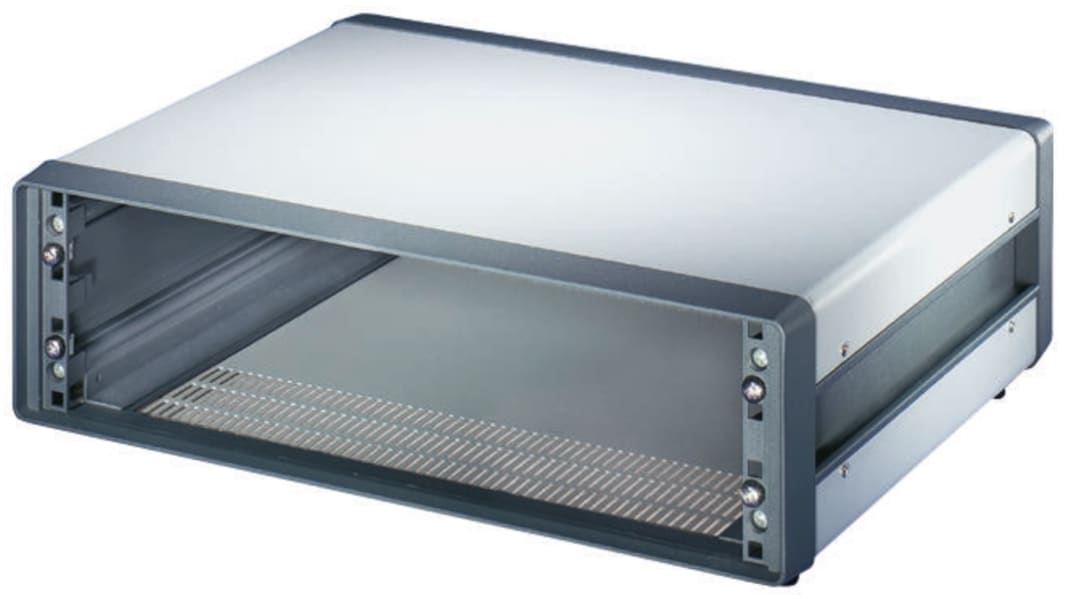

nVent SCHROFF, 3U, 19-Inch Rack Mount Case, Comptec Ventilated, 166 x 520 x 500mm
- RS Stock No.:
- 454-9622
- Mfr. Part No.:
- 10225623
- Brand:
- nVent SCHROFF
Image representative of range
Subtotal (1 unit)*
£264.30
(exc. VAT)
£317.16
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 8 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £264.30 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£281.01
(exc. VAT)
£337.21
(inc. VAT)
- RS Stock No.:
- 454-9622
- Mfr. Part No.:
- 10225623
- Brand:
- nVent SCHROFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | nVent SCHROFF | |
Rack Units | 3U | |
External Depth | 500mm | |
External Height | 166 mm | |
External Width | 520 mm | |
External Dimensions | 166 x 520 x 500mm | |
Ventilated | Yes | |
Colour | Grey, White | |
External Case Material | Aluminium, Steel | |
Frame Depth | 476mm | |
Series | Comptec | |
Select all | ||
---|---|---|
Brand nVent SCHROFF | ||
Rack Units 3U | ||
External Depth 500mm | ||
External Height 166 mm | ||
External Width 520 mm | ||
External Dimensions 166 x 520 x 500mm | ||
Ventilated Yes | ||
Colour Grey, White | ||
External Case Material Aluminium, Steel | ||
Frame Depth 476mm | ||
Series Comptec | ||
- COO (Country of Origin):
- DE
Comptec 19in. Desk Enclosures
Removable top cover
6, 7, 9U cases have a different side panel construction to accommodate heavier equipment
Shell handles can be replaced by folding handles, 50kg capacity (6, 7, 9U only)
Folding feet can be fitted instead of standard anti-skid feet anthracite grey (RAL7016)
Front/rear frames and side panels anthracite grey (RAL7016), cover and rear panels white aluminium (RAL9006)
Width 84 HP
RoHS compliant
6, 7, 9U cases have a different side panel construction to accommodate heavier equipment
Shell handles can be replaced by folding handles, 50kg capacity (6, 7, 9U only)
Folding feet can be fitted instead of standard anti-skid feet anthracite grey (RAL7016)
Front/rear frames and side panels anthracite grey (RAL7016), cover and rear panels white aluminium (RAL9006)
Width 84 HP
RoHS compliant
Note
Earthing Kit and Folding Handles to be ordered separately.
Standards
Inner dimensions to IEC 60297-2.
Protection: IP20 to IEC/EN 60529.
Earth connections to : DIN EN 50178/VDE 0160; DIN EN 60950/VDE 0805; DIN EN 61010 Part1/VDE 0411 Part 1.
Protection: IP20 to IEC/EN 60529.
Earth connections to : DIN EN 50178/VDE 0160; DIN EN 60950/VDE 0805; DIN EN 61010 Part1/VDE 0411 Part 1.
