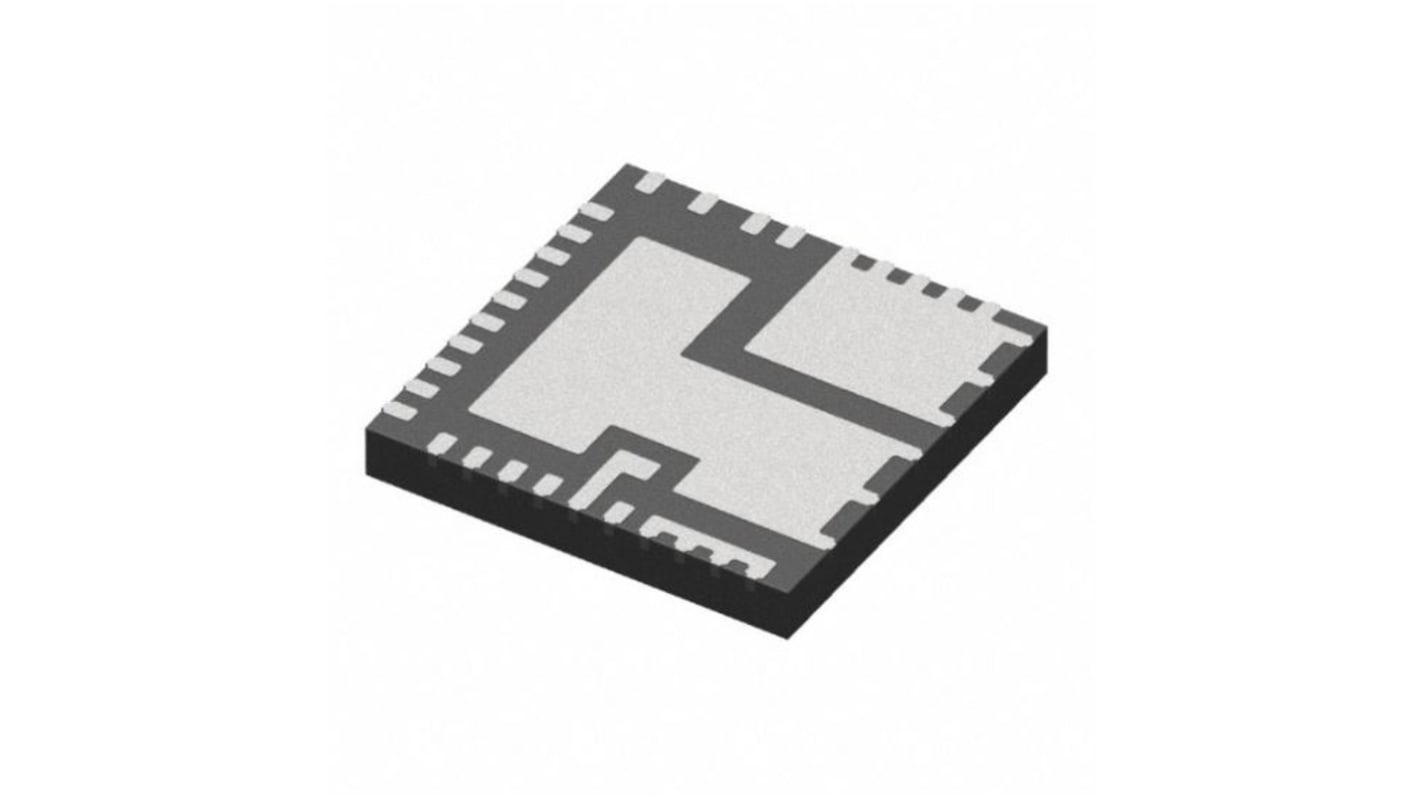

onsemi FAN65008B, PWM Controller, 65 V, 1 MHz 35-Pin, PQFN
- RS Stock No.:
- 178-4280
- Mfr. Part No.:
- FAN65008B
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 178-4280
- Mfr. Part No.:
- FAN65008B
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Switching Frequency | 1 MHz | |
| Output Voltage | 5.25 V | |
| Output Current | 10 A | |
| Control Method | Voltage | |
| Number of Outputs | 1 | |
| Fall Time | 200ns | |
| Mounting Type | Surface Mount | |
| Rise Time | 200ns | |
| Package Type | PQFN | |
| Topology | Buck | |
| Pin Count | 35 | |
| Maximum Duty Cycle | 50% | |
| Dimensions | 6 x 6 x 0.75mm | |
| Length | 6mm | |
| PWM Controller Type | Current Mode | |
| Width | 6mm | |
| Height | 0.75mm | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Supply Voltage | 65 V | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Switching Frequency 1 MHz | ||
Output Voltage 5.25 V | ||
Output Current 10 A | ||
Control Method Voltage | ||
Number of Outputs 1 | ||
Fall Time 200ns | ||
Mounting Type Surface Mount | ||
Rise Time 200ns | ||
Package Type PQFN | ||
Topology Buck | ||
Pin Count 35 | ||
Maximum Duty Cycle 50% | ||
Dimensions 6 x 6 x 0.75mm | ||
Length 6mm | ||
PWM Controller Type Current Mode | ||
Width 6mm | ||
Height 0.75mm | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Supply Voltage 65 V | ||
- COO (Country of Origin):
- PH
FAN65008B is a wide VIN highly efficient synchronous buckregulator, with integrated high side and low side power MOSFETs. The device incorporates a fixed frequency voltage mode PWM controller supporting a wide voltage range from 4.5 V to 65 V and can handle continuous currents up to 10 A. FAN65008B includes a 0.67% accurate reference voltage to achieve tight regulation.
Supports wide range of applications
Allows for optimization between size, efficiency, and maximum duty cycle
Maintain voltage accuracy
Best Efficiency at heavy loads and also at light loads
Fully protected against voltage, current and temperature faults
Improves efficiency by reducing power loss
Allows for optimization between size, efficiency, and maximum duty cycle
Maintain voltage accuracy
Best Efficiency at heavy loads and also at light loads
Fully protected against voltage, current and temperature faults
Improves efficiency by reducing power loss
