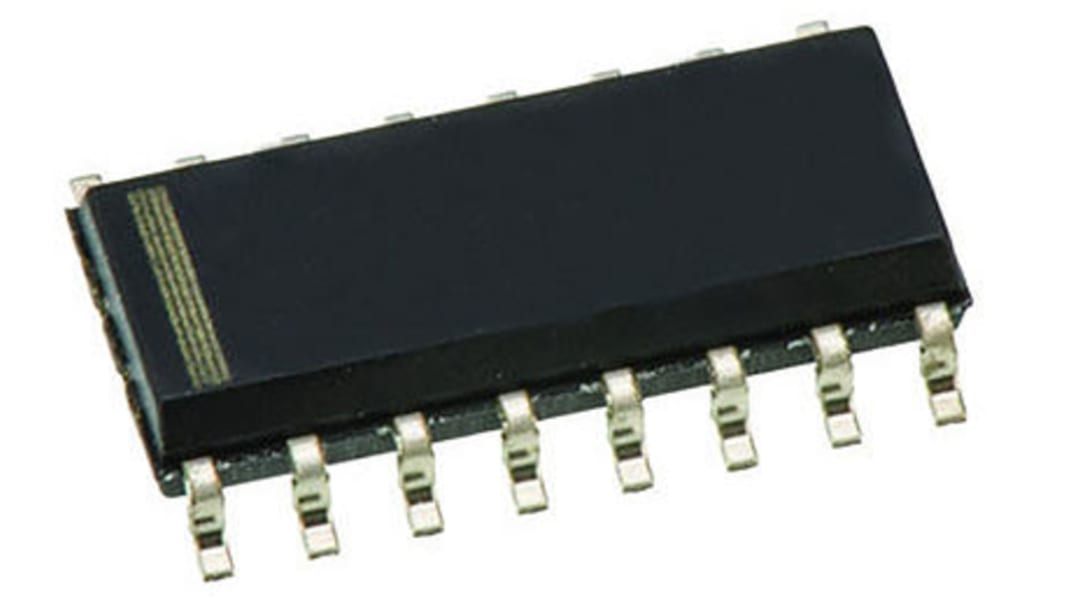

STMicroelectronics L6566B, PWM Controller, 107 kHz 16-Pin, SOIC

View all PWM

Subtotal (1 tube of 30 units)*

£39.24

(exc. VAT)

£47.10

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 720 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
30 +£1.308£39.24

*price indicative

RS Stock No.:
166-0930
Mfr. Part No.:
L6566B
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Maximum Switching Frequency

107 kHz

Output Current

800 mA

Number of Outputs

1

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

16

Dimensions

10 x 4 x 1.5mm

Length

10mm

PWM Controller Type

Multimode SMPS

Width

4mm

Height

1.65mm

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+150 °C

PWM Controllers, STMicroelectronics


Pulse-width modulator (PWM) controllers can support isolated and non-isolated AC-DC and DC-DC switch mode power supplies. They are based on the most popular topologies in both single-ended, such as fly-back, forward or quasi-resonant controllers, and double-ended configurations, such as asymmetrical half-bridge, for Switch Mode Power Supplies (SMPS).
The PMW controllers also integrate a comprehensive set of protections for enhanced robustness and reliability.


PWM (Pulse Width Modulation) Controllers, STMicroelectronics
