Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Switch Operation	Momentary
	Panel Cut Out Diameter	13.6mm
	Mounting Type	Threaded
	Contact Configuration	SPST
	Voltage Rating	250 V ac @ 200 mA, 50 V dc @ 200 mA
	IP Rating	IP67
	Contact Current Rating	200 mA @ 50 V dc, 500 mA @ 32 V ac
	Contact Material	Gold Over Silver
	Case Colour	Chrome
	Contact AC Voltage Rating	250V
	Contact DC Voltage Rating	50V
	Terminal Type	Solder Lug

	Select all
	Brand RS PRO
	Switch Operation Momentary
	Panel Cut Out Diameter 13.6mm
	Mounting Type Threaded
	Contact Configuration SPST
	Voltage Rating 250 V ac @ 200 mA, 50 V dc @ 200 mA
	IP Rating IP67
	Contact Current Rating 200 mA @ 50 V dc, 500 mA @ 32 V ac
	Contact Material Gold Over Silver
	Case Colour Chrome
	Contact AC Voltage Rating 250V
	Contact DC Voltage Rating 50V
	Terminal Type Solder Lug

COO (Country of Origin):: CN

Sub-miniature pushbutton switch, Round

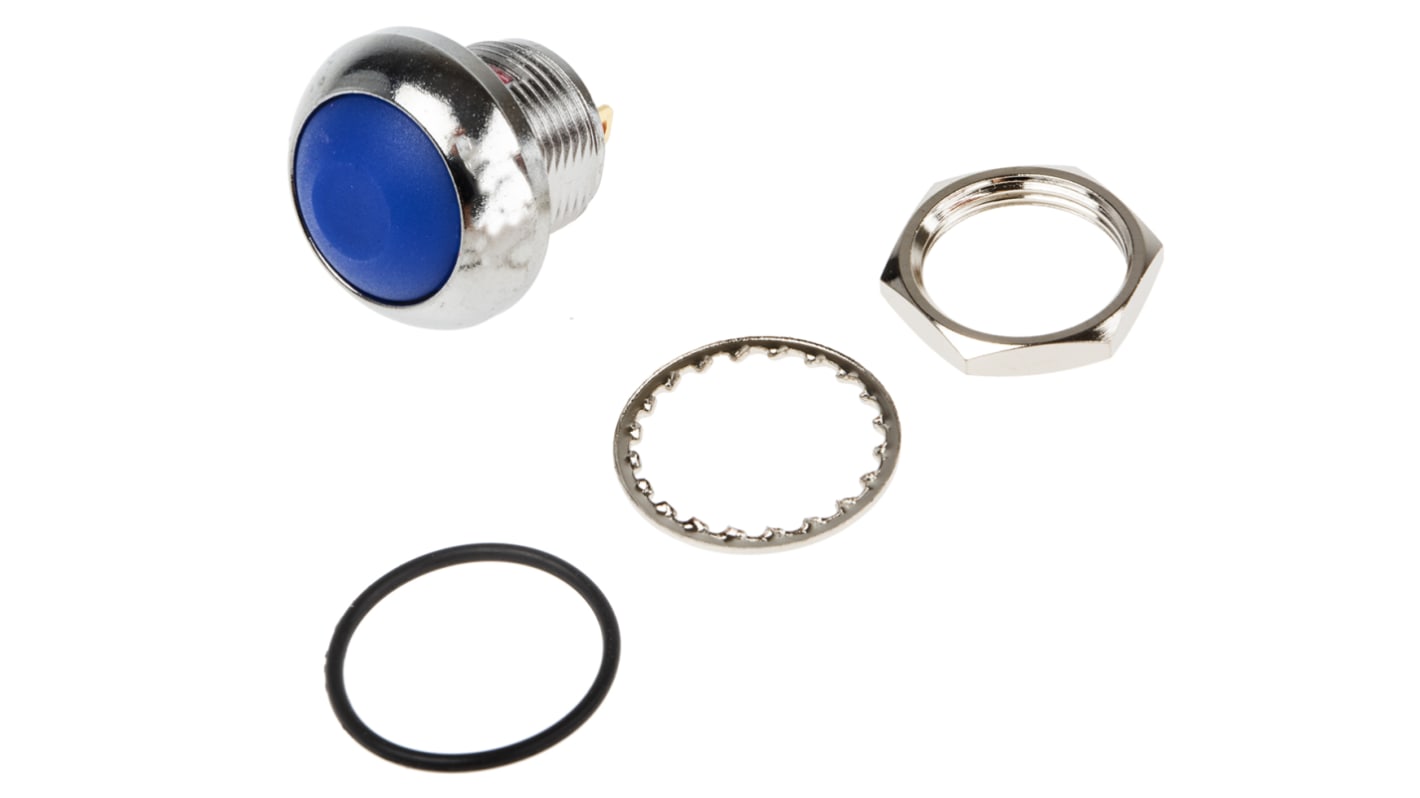

These pushbutton switches have been designed to be suitable for use within a wide range of applications and environments with a temperature range of -30 to +85 °C and are IP7 rated (upper side). They are single pole, single throw with an off-momentary switching action. They are panel mount and each unit is supplied with an M12 nut, locking washer and a splash proof O-ring.

Electrical Life: 500,000 make-and-break cycles at full load
Mechanical life: 1,000,000 cycles min (without load)
Operating force: 2N-5N max
Sealed to IP67 (upper side)
Contact terminals: Gold over silver plated
Panel cut out: 13.6mm
Round button

RS PRO Miniature Push Button Switch, Momentary, Threaded, 13.6mm Cutout, SPST, 250 V ac @ 200 mA, 50 V dc @ 200 mA, IP67

Sub-miniature pushbutton switch, Round
