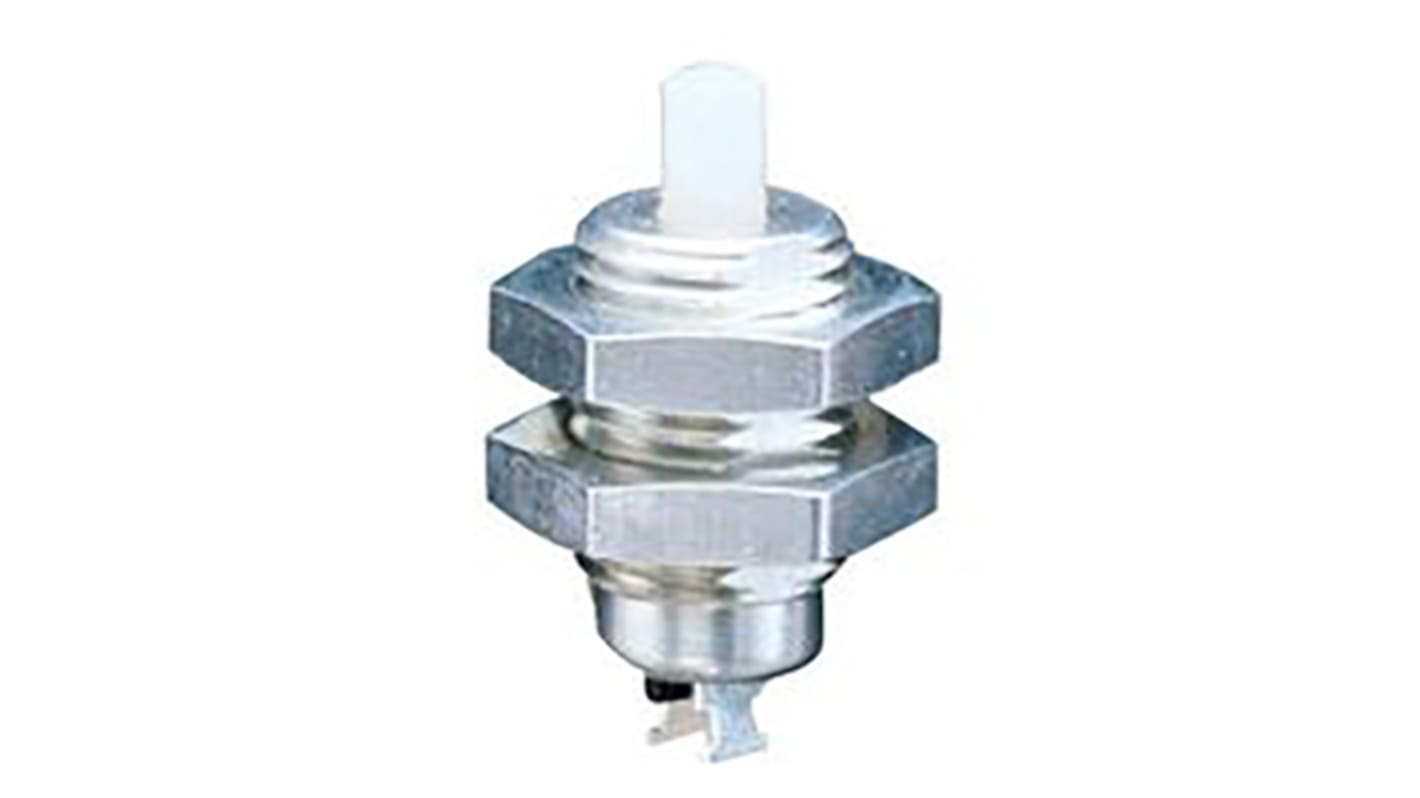

Grayhill Push Button Switch, Momentary, Panel Mount, SPST, 220V ac
- RS Stock No.:
- 878-0937
- Mfr. Part No.:
- 39-702
- Brand:
- Grayhill
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 878-0937
- Mfr. Part No.:
- 39-702
- Brand:
- Grayhill
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Grayhill | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Mounting Type | Panel Mount | |
| Contact Configuration | SPST | |
| Voltage Rating | 220V ac | |
| Contact Current Rating | 500 mA | |
| Contact Material | Silver | |
| Contact AC Voltage Rating | 220V | |
| Manufacturer Part No. | 39-702 | |
| Terminal Type | Solder Lug | |
Select all | ||
|---|---|---|
Brand Grayhill | ||
Switch Operation Momentary | ||
Illuminated No | ||
Mounting Type Panel Mount | ||
Contact Configuration SPST | ||
Voltage Rating 220V ac | ||
Contact Current Rating 500 mA | ||
Contact Material Silver | ||
Contact AC Voltage Rating 220V | ||
Manufacturer Part No. 39-702 | ||
Terminal Type Solder Lug | ||
- COO (Country of Origin):
- US
39 Series Butt Contact Pushbutton Switches
The 39 series pushbutton switches has a wide selection of options available making them extremely versatile and suitable for a number of applications. Options include panel mount with various terminal options, PC mount, and right angle surface mount. Each of these can then be further broken down to numerous pole configurations, over-travel options, various current ratings and sealed or non-sealed.
Features:
Numerous pole and throw configurations
Momentary Action
Various current ratings
Operating temperature range: -40 to +85 °C (-40 to +125 °C - right angle PC mount versions)
Various life cycles ranging from 100,000 to 1,000,000 operations depending on version.
Numerous pole and throw configurations
Momentary Action
Various current ratings
Operating temperature range: -40 to +85 °C (-40 to +125 °C - right angle PC mount versions)
Various life cycles ranging from 100,000 to 1,000,000 operations depending on version.
