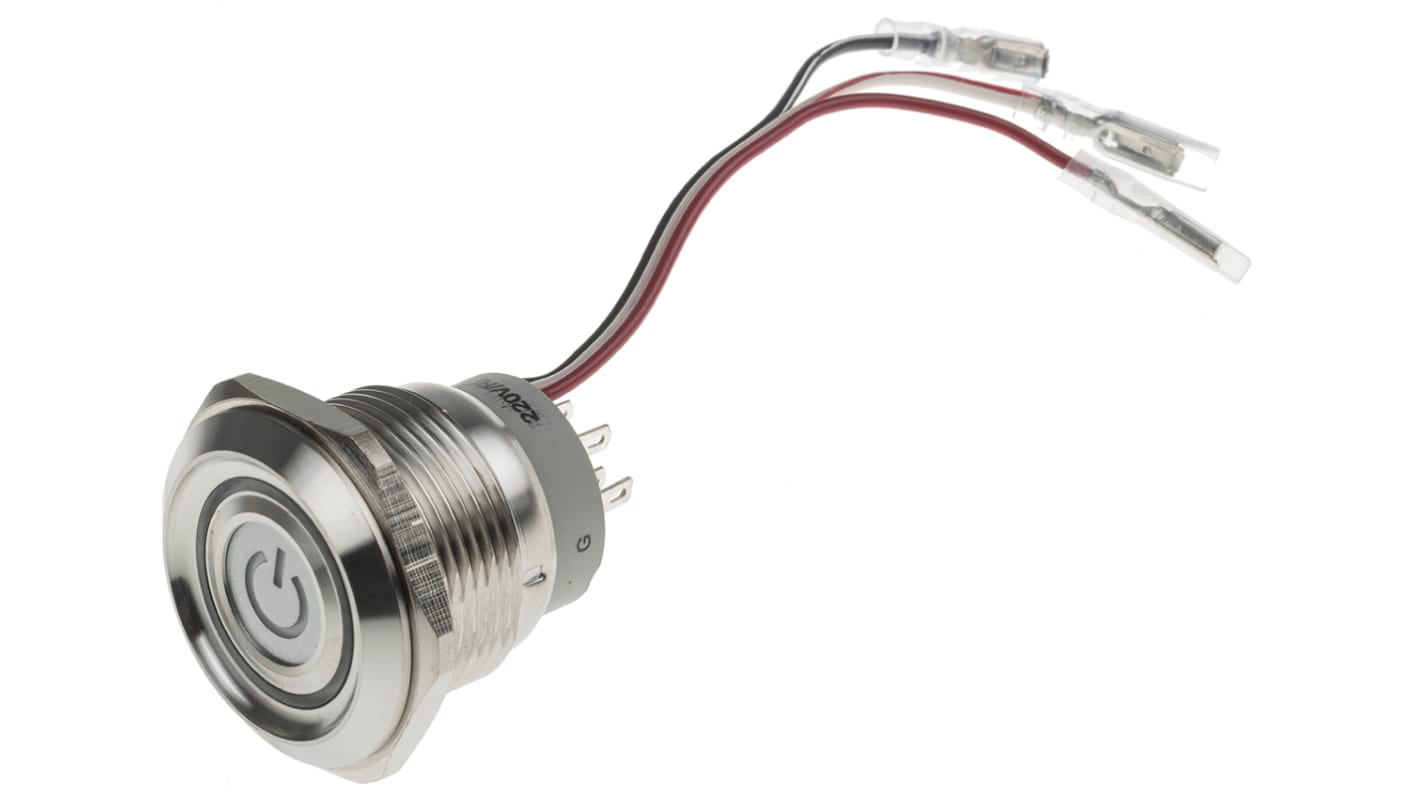

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 30.2mm Cutout, DPDT, Blue, Green, Red LED, 220V, IP67
- RS Stock No.:
- 877-1873
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 877-1873
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 30.2mm | |
| Mounting Type | Panel Mount | |
| Contact Configuration | DPDT | |
| Voltage Rating | 220V | |
| LED Colour | Blue, Green, Red | |
| IP Rating | IP67 | |
| Contact Current Rating | 5 A @ 250 V ac | |
| Contact Material | Silver | |
| Manufacturer Part No. | AV12L-BB2-M3-FR-RB-220V-1G | |
| Legend | Power Symbol | |
| Contact AC Voltage Rating | 250V | |
| Terminal Type | Solder/Quick Connect | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cut Out Diameter 30.2mm | ||
Mounting Type Panel Mount | ||
Contact Configuration DPDT | ||
Voltage Rating 220V | ||
LED Colour Blue, Green, Red | ||
IP Rating IP67 | ||
Contact Current Rating 5 A @ 250 V ac | ||
Contact Material Silver | ||
Manufacturer Part No. AV12L-BB2-M3-FR-RB-220V-1G | ||
Legend Power Symbol | ||
Contact AC Voltage Rating 250V | ||
Terminal Type Solder/Quick Connect | ||
- COO (Country of Origin):
- TW
Illuminated anti-vandal pushbutton switches Ø 30 mm
The switches feature centre and ring illumination. The non-actuated colours are green (centre) and red (ring), when actuated the ring colour changes to blue and the centre is not illuminated.
Impact resistance: IK03
Bushing Material: Varnished / Polished Stainless Steel
Bushing Material: Varnished / Polished Stainless Steel
