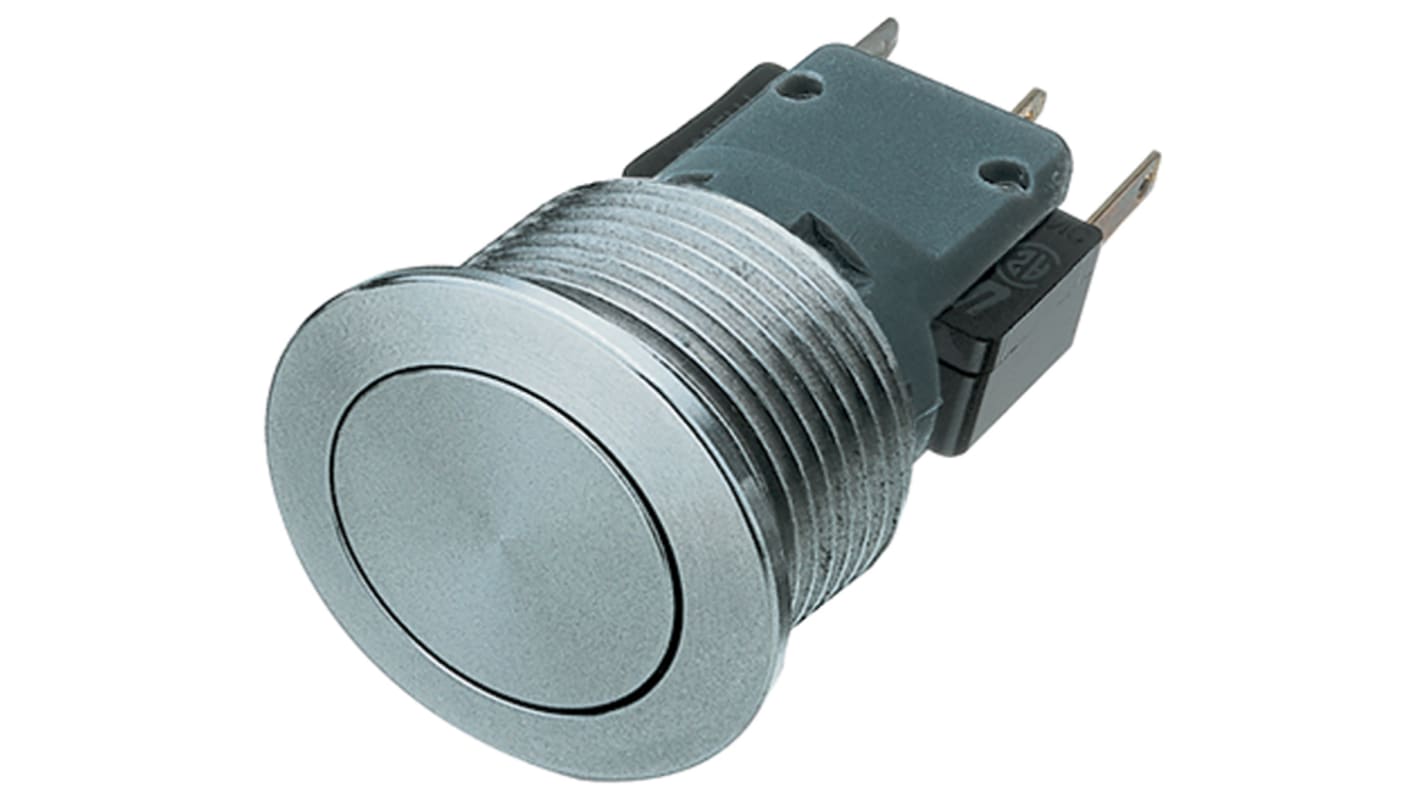

Schurter Double Pole Single Throw (DPST) Momentary Push Button Switch, IP67, Panel Mount, 30V dc

  • RS Stock No. 867-3980
  • Mfr. Part No. 1241.6631.1110000
  • Brand Schurter
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Anti-Vandal M22 Push Button Switches - MSM Series

Professional range of IP67 rated Schurter push button switches from the MSM series. The switches are available in a variety of current ratings.

IP67 Rated
Terminal Type - Quick Connect

Specifications
Attribute Value
Switch Operation Momentary
Mounting Type Panel Mount
Illuminated No
Contact Configuration Double Pole Single Throw (DPST)
Panel Cut Out Diameter 22.3mm
IP Rating IP67
Actuator Colour Silver
Voltage Rating 30V dc
Contact Current Rating 100 mA
Actuator Shape Round
Terminal Type Quick Connect
Contact DC Voltage Rating 30V
Actuator Type Button
29 In stock for FREE next working day delivery
Price Each
£ 10.63
(exc. VAT)
£ 12.76
(inc. VAT)
Units
Per unit
1 +
£10.63
