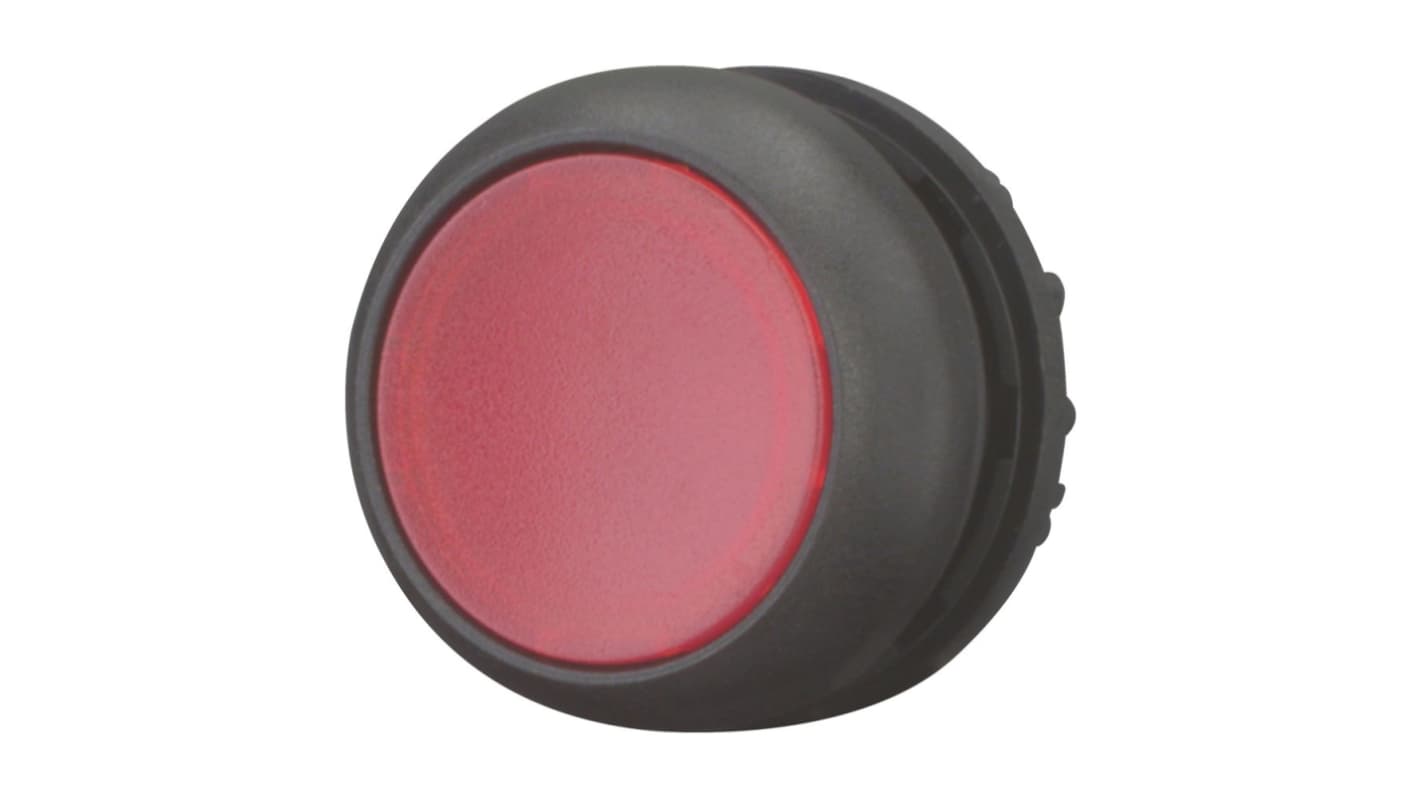

Eaton RMQ Titan M22 Series Illuminated Push Button, Panel Mount, 22mm Cutout, IP67, IP69K

RS Stock No.:: 847-5229
Mfr. Part No.:: 216926 M22S-DL-R
Brand:: Eaton

Eaton RMQ Titan M22 Series Illuminated Push Button, Panel Mount, 22mm Cutout, IP67, IP69K

4 In stock - FREE next working day delivery available

22 available from Europe for delivery within 2 working day(s).

Price Each

£10.72

(exc. VAT)

£12.86

(inc. VAT)

Units	Per unit
1 +	£10.72

RS Stock No.:: 847-5229
Mfr. Part No.:: 216926 M22S-DL-R
Brand:: Eaton

Technical Reference

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Eaton M22 Series Push Button and Pilot Lights

The RMQ-Titan M22 series from Eaton offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push-buttons and indicator lights including LED elements, selector switches, key switches, push-pulls, alternate action and twist-to-release operators.

This comprehensive range of pilot devices is engineered to ensure that your machines, systems, and processes keep running smoothly and offers a wide variety of applications and processes. Designed for optimal functionality with a high degree of protection the M22 series offers a wide range of solutions for your business

The Eaton M22 series of push buttons and accessories are tough and reliable. Rated at IP67 offering complete protection against contact (dust-tight), and for use in harsh and outdoor environments including immersion in water of up to 1 meter depth. The M22 push button is suitable for most industrial and commercial applications. With a flush mounting design, this range of Eaton push buttons combines a practical and neat aesthetic with dependable functionality, available in a variety of colours.

Uses and applications

Control stations in commercial and industrial buildings
Factory automation lines
For use in emergency situations where you need to cut off electrical supply via the press of a button

Eaton RMQ Titan M22 Series Push Button, Panel Mount, IP67 and IP69K - 216926 M22S-DL-R E

This push-button by Eaton is designed for various applications in multiple industries. With a range of technical specifications, this push-button ensures reliable and efficient operation in challenging conditions.

Features & Benefits

• Constructed with durable plastic material for long-lasting performance
• Illuminated design with an IP67 rating for protection against dust and water
• Vibrant red colour for clear visibility
• Round shape for ergonomic use

Applications

• Ideal for use in control panels for industrial automation
• Suitable for machinery and equipment in the electronics industry

Can it withstand extreme temperatures?

Yes, it has a maximum operating temperature of +70 °C and a minimum operating temperature of -25 °C.

Will it fit securely in a panel?

Yes, this push-button is designed for panel mount installation.

Is it easy to identify in a control panel?

Yes, the red colour and illuminated design make it easy to locate and operate.

Note

Eaton formerly known as Moeller

Specifications

Attribute	Value
Illuminated	Yes
Panel Cut Out Diameter	22mm
Mounting Type	Panel Mount
Push Button Colour	Red
Push Button Style	Round
IP Rating	IP67, IP69K
Push Button Diameter	29.7mm
Push Button Material	Plastic
Series	RMQ Titan M22
Manufacturer Part No.	216926 M22S-DL-R
Operating Temperature Range	- 25 → +70°C
Minimum Operating Temperature	-25°C
Body Material	Plastic
Maximum Operating Temperature	+70°C
