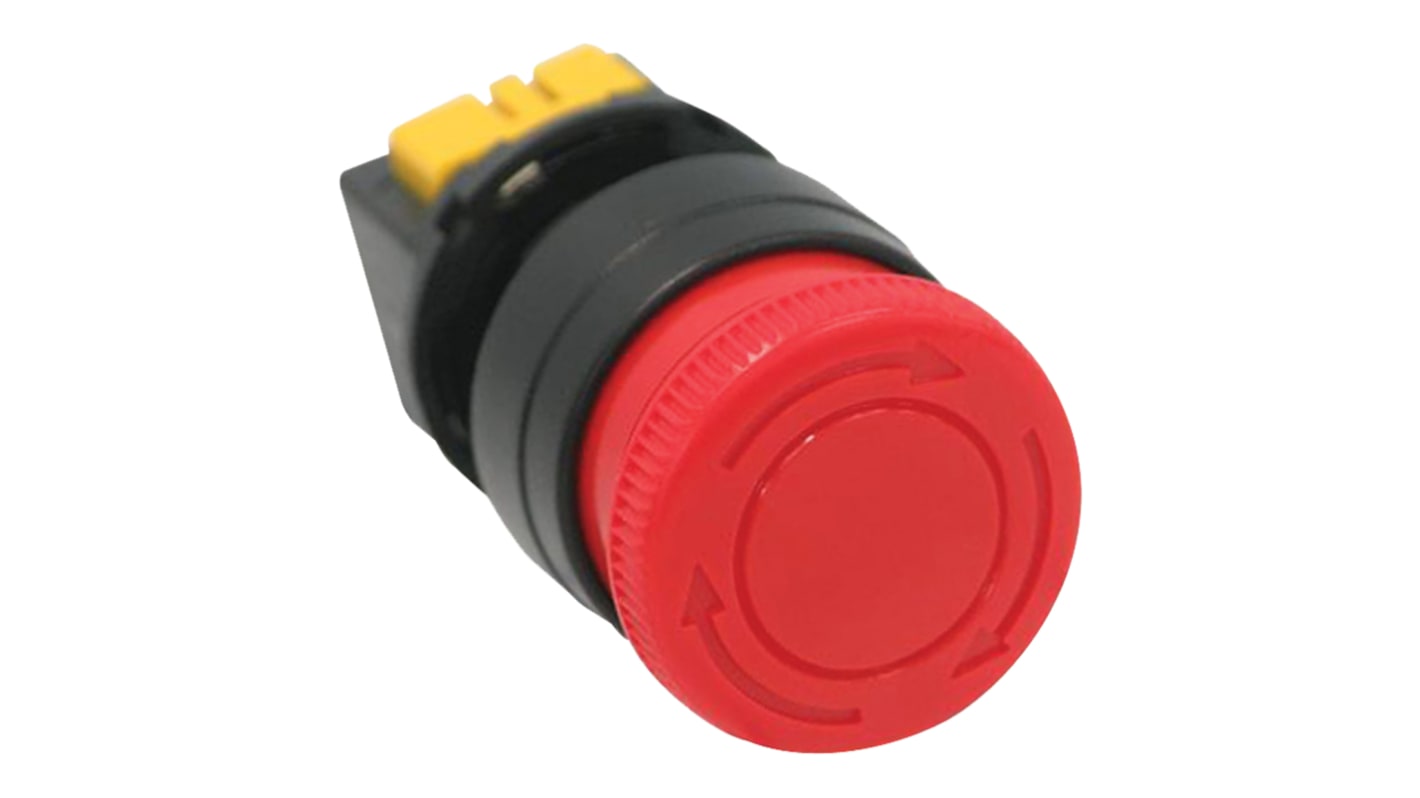

Idec Push Button Switch, Latching, Panel Mount, 16.2mm Cutout, SPST, 250V ac/dc, IP65
- RS Stock No.:
- 829-9208
- Mfr. Part No.:
- HA1E-V2S1R
- Brand:
- Idec
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 829-9208
- Mfr. Part No.:
- HA1E-V2S1R
- Brand:
- Idec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
Idec L6 Series
The L6 series of pushbutton and pilot lights from Idec. The range consists of both standard and oversize heads; the larger buttons are ideal for gloved personnel and provide an alternative to 22mm pushbuttons if 10A contacts are not needed.
Models include illuminated and non-illuminated pushbuttons, pilot lights, selectors, key switches, a piezo buzzer, pushbutton selector and several positive action IEC Compliant Emergency Stop switches.
Models include illuminated and non-illuminated pushbuttons, pilot lights, selectors, key switches, a piezo buzzer, pushbutton selector and several positive action IEC Compliant Emergency Stop switches.
5/8" (16mm) mounting holes
Locking lever removable contact blocks
Solder terminal or PCB terminal options
Available assembled or as sub-components
Incandescent or LED illumination
Snap action contacts
Locking lever removable contact blocks
Solder terminal or PCB terminal options
Available assembled or as sub-components
Incandescent or LED illumination
Snap action contacts
Idec Push Buttons and Accessories
Idec offers a variety of products grouped by various sizes and features which are best suited for your unique project needs.
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | No |
| Panel Cut Out Diameter | 16.2mm |
| Mounting Type | Panel Mount |
| Contact Configuration | SPST |
| Voltage Rating | 250V ac/dc |
| IP Rating | IP65 |
| Contact Material | Silver |
| Case Colour | Black |
| Manufacturer Part No. | HA1E-V2S1R |
| Terminal Type | Solder |
