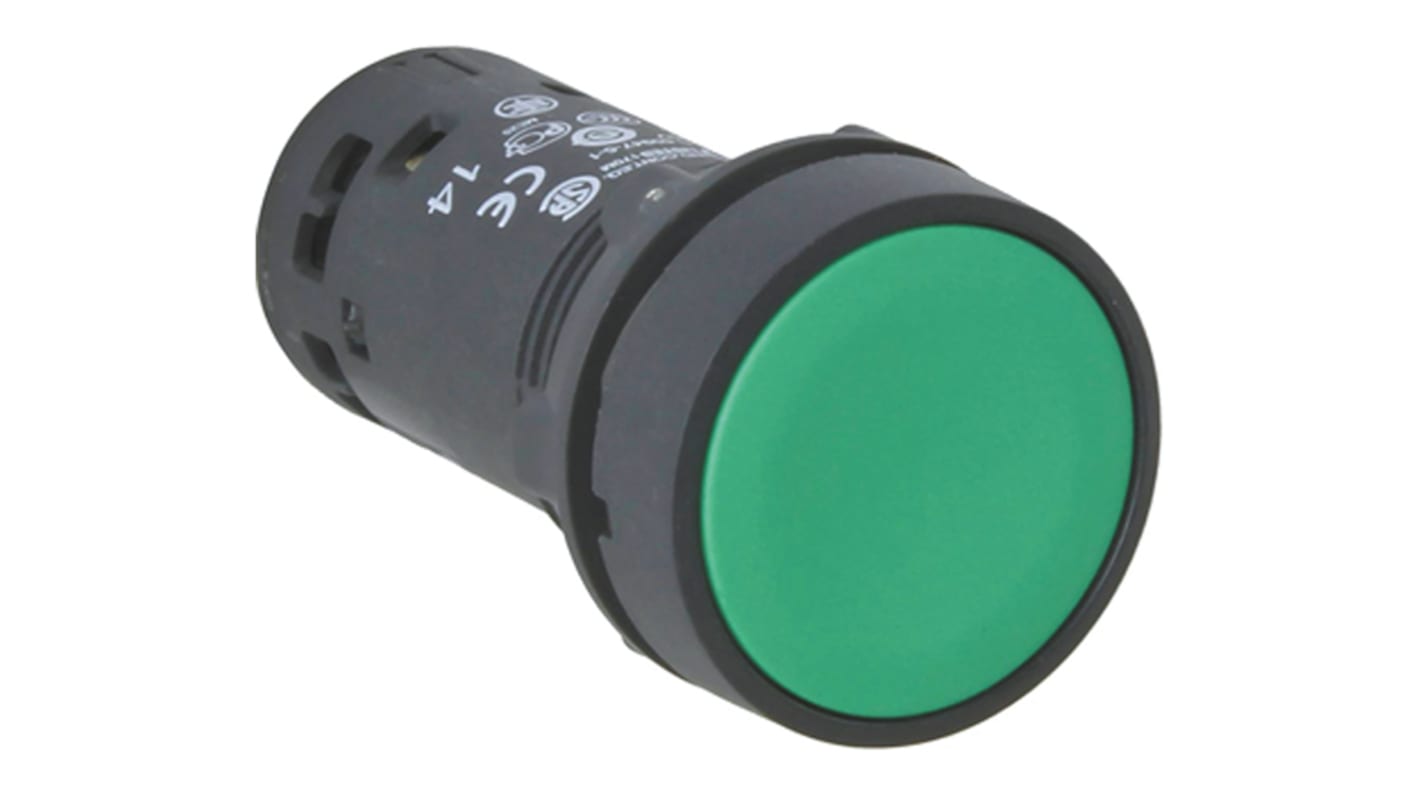

Schneider Electric Harmony XB7 Series Push Button Switch, Spring Return, Fixing Nut, 22 mm Cutout, SPDT, Green LED, 250
- RS Stock No.:
- 815-2152
- Mfr. Part No.:
- XB7NA35
- Brand:
- Schneider Electric
Subtotal (1 pack of 10 units)*
£89.43
(exc. VAT)
£107.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 60 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £8.943 | £89.43 |
*price indicative
- RS Stock No.:
- 815-2152
- Mfr. Part No.:
- XB7NA35
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Push Button Switch | |
| Actuator Colour | Green | |
| Switch Operation | Spring Return | |
| Illuminated | No | |
| Panel Cutout Size | 22 mm | |
| Series | Harmony XB7 | |
| Mount Type | Fixing Nut | |
| Contact Configuration | SPDT | |
| LED Colour | Green | |
| Terminal Type | Screw | |
| Actuator Style | Round | |
| Contact DC Voltage | 250V | |
| Minimum Operating Temperature | -25°C | |
| Contact AC Voltage | 240V | |
| Maximum Operating Temperature | 70°C | |
| Switch Configuration | 1 NO/1 NC | |
| Height | 29mm | |
| Length | 51.5mm | |
| Switch Contact Current | 0.3 A | |
| Width | 29 mm | |
| Standards/Approvals | EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No. 14, UL 508, JIS C8201-5-1, JIS C8201-1 | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Push Button Switch | ||
Actuator Colour Green | ||
Switch Operation Spring Return | ||
Illuminated No | ||
Panel Cutout Size 22 mm | ||
Series Harmony XB7 | ||
Mount Type Fixing Nut | ||
Contact Configuration SPDT | ||
LED Colour Green | ||
Terminal Type Screw | ||
Actuator Style Round | ||
Contact DC Voltage 250V | ||
Minimum Operating Temperature -25°C | ||
Contact AC Voltage 240V | ||
Maximum Operating Temperature 70°C | ||
Switch Configuration 1 NO/1 NC | ||
Height 29mm | ||
Length 51.5mm | ||
Switch Contact Current 0.3 A | ||
Width 29 mm | ||
Standards/Approvals EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No. 14, UL 508, JIS C8201-5-1, JIS C8201-1 | ||
Legend Blank | ||
- COO (Country of Origin):
- ID
Schneider Electric XB7NA35
This Harmony XB7, flush monolithic green push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Spring Return Push Buttons With/Without Marking - Flush
Harmony XB7 push buttons can be used in control systems that require high-performance, compact and easy-to-install components. They are specially desgined for industry applications.
Ergonomic design in different colours
Spring return
Easy to install
Flush style
Complete unit
Robust, durable controls for industry and buildings
Schneider Electric XB7 Range
