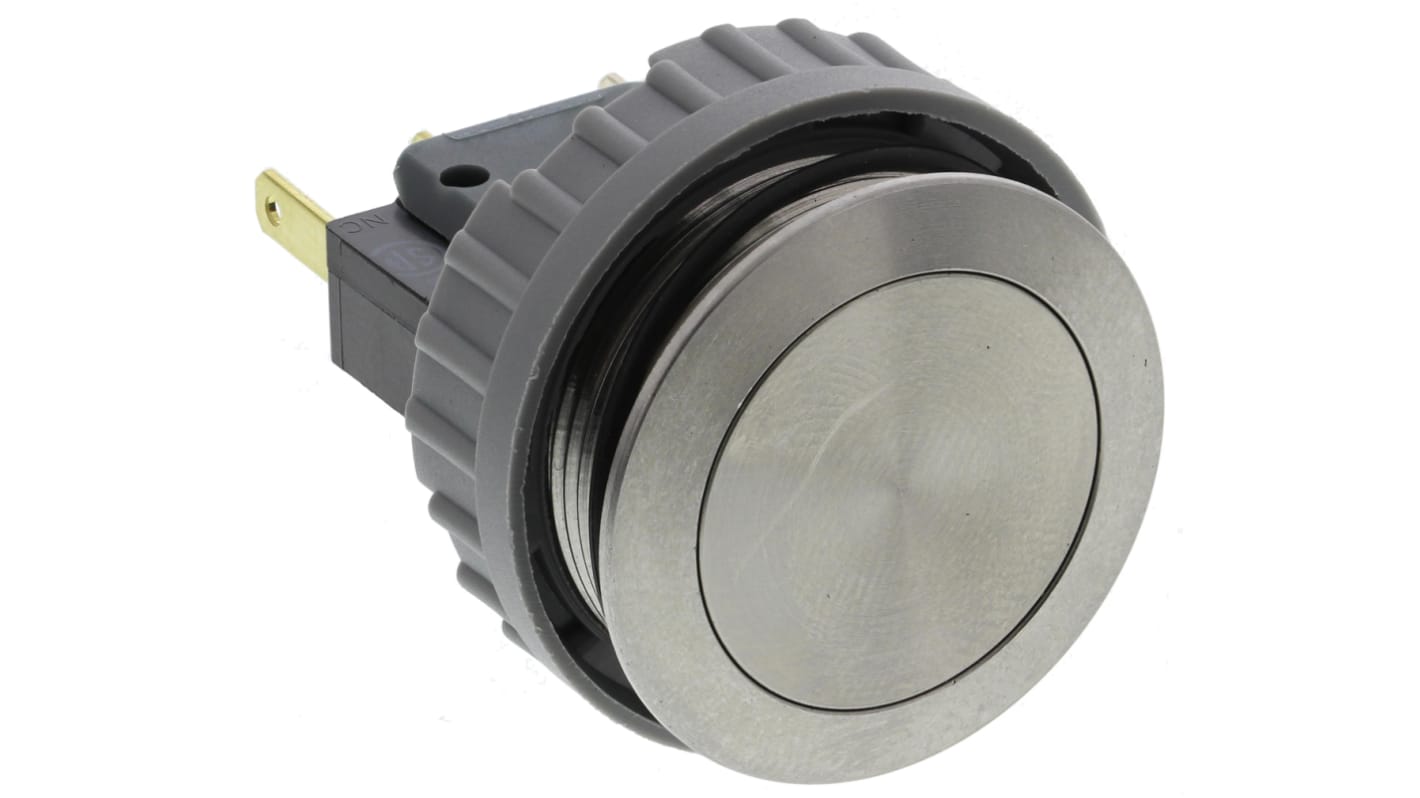

Schurter Push Button Switch, Momentary, Panel Mount, 21.2mm Cutout, SPDT, 250V ac, IP40
- RS Stock No.:
- 777-7527
- Mfr. Part No.:
- 1241.6631.1120000
- Brand:
- Schurter
Available to back order for despatch when stock is available
Added
Price Each
£13.80
(exc. VAT)
£16.56
(inc. VAT)
| Units | Per unit |
| 1 - 14 | £13.80 |
| 15 - 49 | £11.59 |
| 50 - 99 | £10.54 |
| 100 - 249 | £9.87 |
| 250 + | £9.83 |
- RS Stock No.:
- 777-7527
- Mfr. Part No.:
- 1241.6631.1120000
- Brand:
- Schurter
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
Anti-Vandal M19 & M22 Push Button Switches - MSM Series
Stainless steel button, protected against vandals in accordance with IP40
Non-illuminated, pin-point illumination or ring illumination
Long service life of up to 1.5 million actuations
Small front structure of 1.7 mm
Flat connections: 2.8 mm
Supply voltage for ring illumination: 24 Vdc
Supply voltage for pin-point illumination: 2 Vdc
Non-illuminated, pin-point illumination or ring illumination
Long service life of up to 1.5 million actuations
Small front structure of 1.7 mm
Flat connections: 2.8 mm
Supply voltage for ring illumination: 24 Vdc
Supply voltage for pin-point illumination: 2 Vdc
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 21.2mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Silver |
| Contact Configuration | SPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| IP Rating | IP40 |
| Contact Current Rating | 3 A @ 250 V ac |
| Contact Material | Silver |
| Manufacturer Part No. | 1241.6631.1120000 |
| Terminal Type | Solder Tag |
