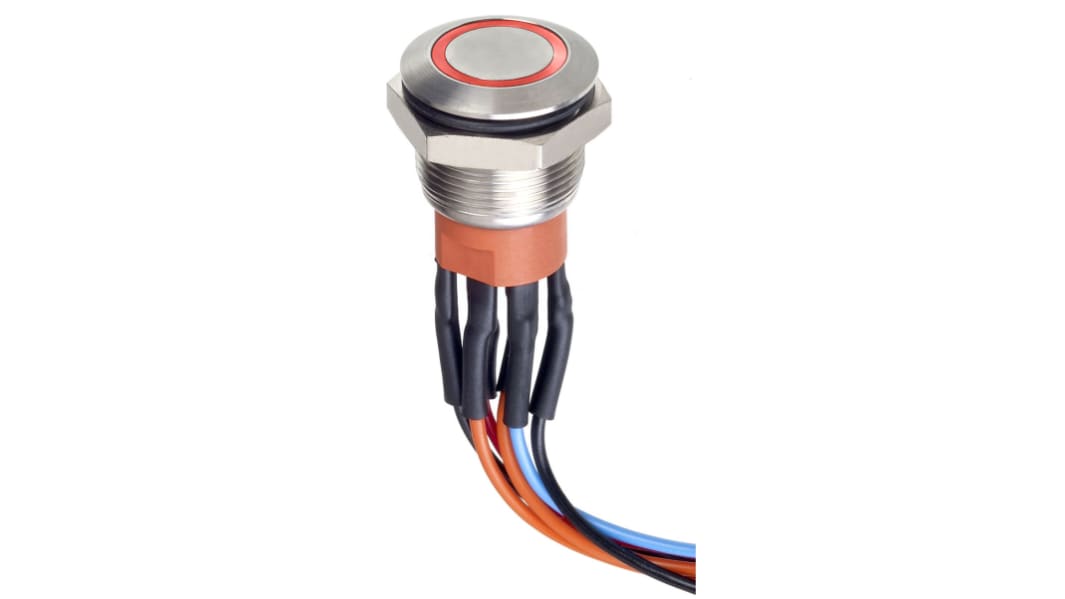

APEM AV Series Illuminated Push Button Switch, Momentary, Panel, 19.2 mm Cutout, SPDT, Red LED, IP67, 30 V
- RS Stock No.:
- 765-1242
- Mfr. Part No.:
- AV9612F1020840K
- Brand:
- APEM
Bulk discount available
Subtotal (1 unit)*
£61.14
(exc. VAT)
£73.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 14 unit(s) shipping from 06 April 2026
- Plus 30 unit(s) shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £61.14 |
| 10 - 49 | £55.03 |
| 50 - 99 | £45.88 |
| 100 - 249 | £42.80 |
| 250 + | £39.13 |
*price indicative
- RS Stock No.:
- 765-1242
- Mfr. Part No.:
- AV9612F1020840K
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Switch Operation | Momentary | |
| Actuator Colour | Silver | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | AV | |
| Panel Cutout Size | 19.2 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| Terminal Type | Flying Lead | |
| LED Colour | Red | |
| IP Rating | IP67 | |
| Contact DC Voltage | 30V | |
| Minimum Operating Temperature | -20°C | |
| Actuator Style | Flat | |
| Switch Configuration | NC/NO | |
| Maximum Operating Temperature | 55°C | |
| Switch Contact Current | 1 A | |
| Length | 20cm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Switch Operation Momentary | ||
Actuator Colour Silver | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series AV | ||
Panel Cutout Size 19.2 mm | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
Terminal Type Flying Lead | ||
LED Colour Red | ||
IP Rating IP67 | ||
Contact DC Voltage 30V | ||
Minimum Operating Temperature -20°C | ||
Actuator Style Flat | ||
Switch Configuration NC/NO | ||
Maximum Operating Temperature 55°C | ||
Switch Contact Current 1 A | ||
Length 20cm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- FR
Illuminated Anti-Vandal Pushbutton Switches Ø 19mm Momentary NC/NO – AV Series
Apem anti vandal AV series push button switches are an attractive, robust and durable solution to an anti vandal push button requirement. The AV series of anti vandal push button switches feature an anti-jamming construction and reduced travel to prevent insertion of foreign parts and are protected against crushing, are fire resistant and long life.
Very robust: impact resistance IK10
Stainless steel actuator and bushing
Illuminated ring
Momentary
