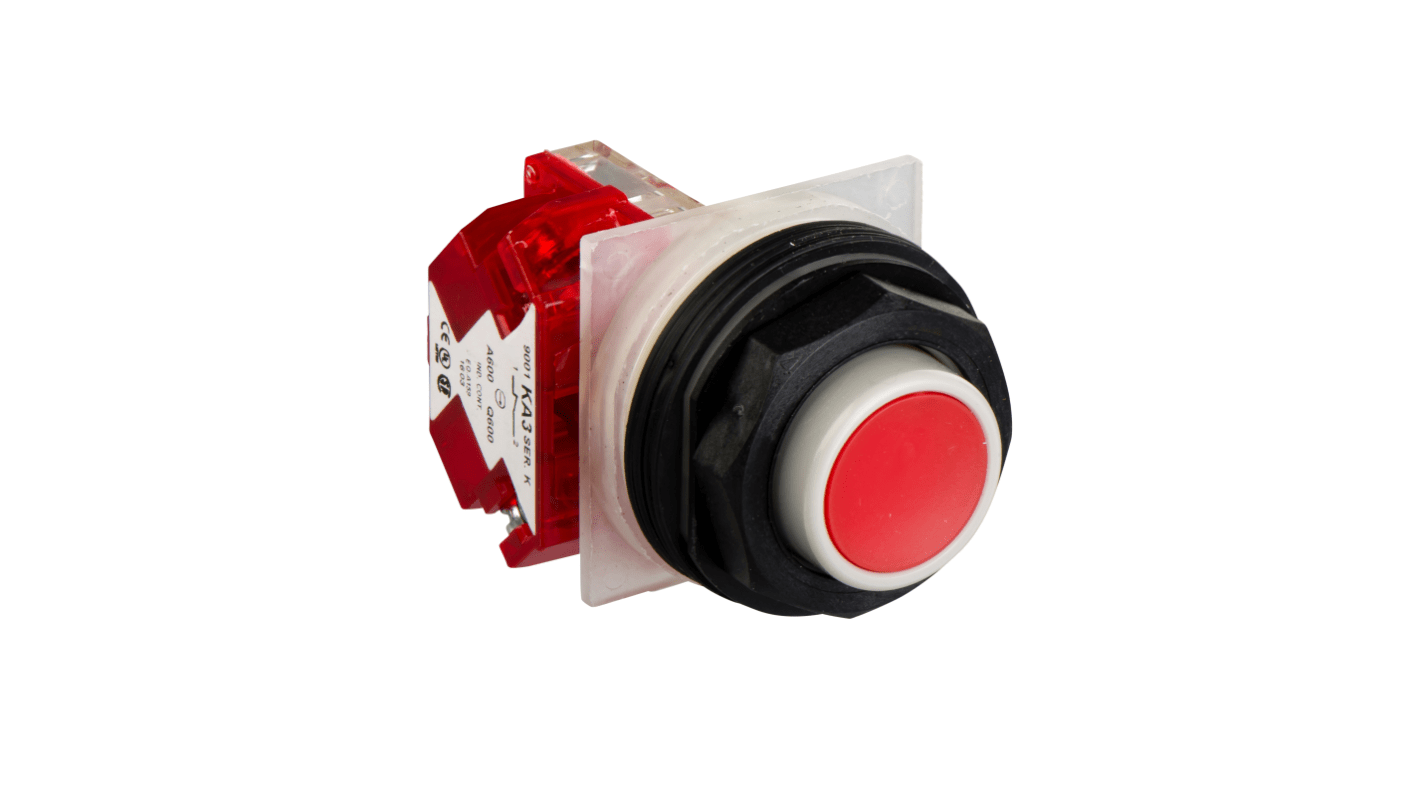

Schneider Electric Harmony 9001SK Series Illuminated Push Button Switch, Spring Return, Panel, 30 mm Cutout, SPST, Red
- RS Stock No.:
- 746-4707
- Mfr. Part No.:
- 9001SKR3RH6
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£40.23
(exc. VAT)
£48.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £40.23 |
*price indicative
- RS Stock No.:
- 746-4707
- Mfr. Part No.:
- 9001SKR3RH6
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Actuator Colour | Red | |
| Switch Operation | Spring Return | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | Harmony 9001SK | |
| Panel Cutout Size | 30 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| LED Colour | Red | |
| Terminal Type | Screw | |
| IP Rating | IP66 | |
| Actuator Style | Octagonal | |
| Minimum Operating Temperature | -25°C | |
| Switch Configuration | NC | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C 4520 and 852UL 508CSA C22-2 n° 14EN/IEC 60204-1EN/ISO 13850UL508NEMA A600-Q600 | |
| Switch Contact Current | 10 A | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Actuator Colour Red | ||
Switch Operation Spring Return | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series Harmony 9001SK | ||
Panel Cutout Size 30 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
LED Colour Red | ||
Terminal Type Screw | ||
IP Rating IP66 | ||
Actuator Style Octagonal | ||
Minimum Operating Temperature -25°C | ||
Switch Configuration NC | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C 4520 and 852UL 508CSA C22-2 n° 14EN/IEC 60204-1EN/ISO 13850UL508NEMA A600-Q600 | ||
Switch Contact Current 10 A | ||
Legend Blank | ||
Pushbuttons
The Harmony 9001SK series of round head pushbuttons provide a robust and reliable solution for a wide range of heavy industry applications.
Integrated earth ground connection (no ground wires required)
Easy installation with octagonal ring nut
Round head
Spring return operation
Rated to IP66
Schneider Electric Style 9 Harmony® Plastic 30mm Range
The Harmony 9001SK push buttons, pilot lights and selector switches are heavy duty products designed for heavy duty applications.
The SK series of push buttons offer interchangeable colour inserts, contact blocks and light modules for flexibility and to reduce inventory.
9001SK series are black plastic for corrosion resistant applications
Enhanced oil, dust and water tight protection
Fast installation - one screw for mounting of contact blocks
Finger safe contact blocks and light modules for improved safety
