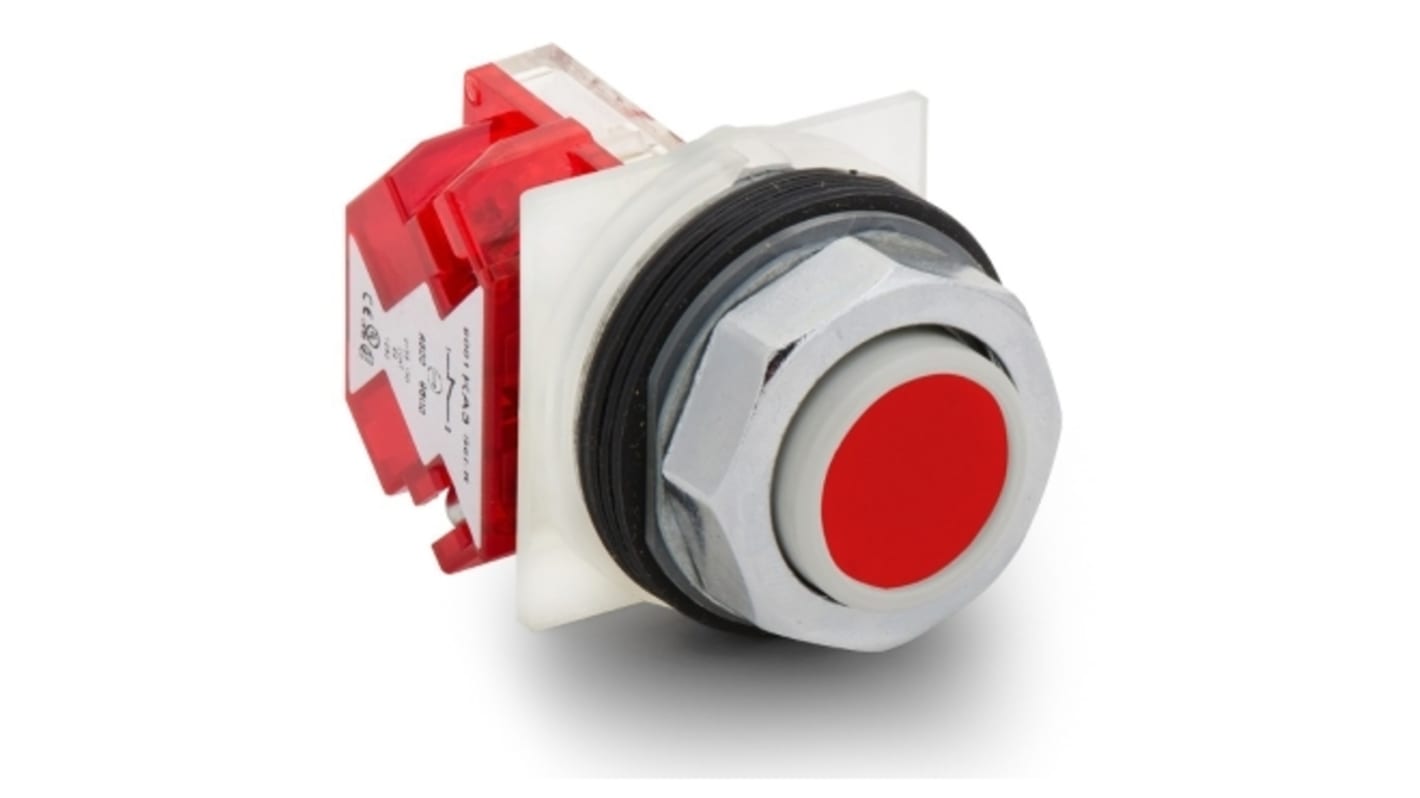

Schneider Electric Harmony 9001K Series Illuminated Push Button Switch, Spring Return, 30 mm Cutout, 1 NC, Red LED,

RS Stock No.:: 746-4482
Mfr. Part No.:: 9001KR3RH6
Brand:: Schneider Electric

Schneider Electric Harmony 9001K Series Illuminated Push Button Switch, Spring Return, 30 mm Cutout, 1 NC, Red LED,

Subtotal (1 unit)*

£41.09

(exc. VAT)

£49.31

(inc. VAT)

Add 2 units to get free delivery

Orders below £50.00 (exc. VAT) cost £6.95.

In Stock

6 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£41.09

*price indicative

Schneider Electric Harmony XB Push Buttons

Schneider Electric's high-quality Harmony XB push buttons are a versatile and reliable choice for your control panel needs

Shop Here

RS Stock No.:: 746-4482
Mfr. Part No.:: 9001KR3RH6
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Switch Operation	Spring Return
	Actuator Colour	Red
	Product Type	Push Button Switch
	Illuminated	Yes
	Series	Harmony 9001K
	Panel Cutout Size	30 mm
	Contact Configuration	1 NC
	Terminal Type	Screw
	LED Colour	Red
	IP Rating	IP66
	Actuator Style	Mushroom
	Contact DC Voltage	125V
	Minimum Operating Temperature	-25°C
	Contact AC Voltage	240V
	Maximum Operating Temperature	70°C
	Standards/Approvals	EU RoHS, REACH, RoHS, WEEE
	Switch Contact Current	3 A
	Legend	Blank

	Select all
	Brand Schneider Electric
	Switch Operation Spring Return
	Actuator Colour Red
	Product Type Push Button Switch
	Illuminated Yes
	Series Harmony 9001K
	Panel Cutout Size 30 mm
	Contact Configuration 1 NC
	Terminal Type Screw
	LED Colour Red
	IP Rating IP66
	Actuator Style Mushroom
	Contact DC Voltage 125V
	Minimum Operating Temperature -25°C
	Contact AC Voltage 240V
	Maximum Operating Temperature 70°C
	Standards/Approvals EU RoHS, REACH, RoHS, WEEE
	Switch Contact Current 3 A
	Legend Blank

Schneider Electric | Harmony 9001K Series | Push Buttons

A selection of Harmony Style 9001K series of chromium plated metal control and signalling units designed for use in the most extreme environments. Supplied with several different profile colouring heads including red, orange and yellow which can be used to identify different functions to users.

Features and benefits

• Flush profile style of Push-Button complete with interchangeable colour profiles as pictured.

• Slow-break contact which can be operated from any position. Easily adjustable with a standard cross-slotted screw head shape.

• Durable and easy to maintain Chromium plated metal finish with a Zamak based fixing collar.

• 5,000,000 cycles of high-performance mechanical durability ensuring consistent reliability.

• Suitable for use in temperature ranges -25 to 70 ° C.

• 1 NO contact type with a screw clamp terminal connection.

Protection ratings & Safety features (See datasheet for further details) -

• IP 66 rated conforming to IEC 60529 for complete protection against the ingress of dust and other foreign particles. This means the Push Button has protection against high-pressure water jets from any direction.

• NEMA 1, 2, 3, 3R, 4, 12, 13. Can be used indoors/outdoors with further protection against dust and dripping non-corrosive liquids.

• EN/IEC 60947-5-1, UL 508

• Short circuit protection via a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1. 50 gn of Shock resistance that conforms to IEC 60068-2-27.

• Vibration resistance 7 gn conforming to IEC 60068-2-6.

Applications -

• Control stations/panels used in E-Stop scenarios

• Automotive industries, factories, automation lines

• Commercial units such as warehouses
