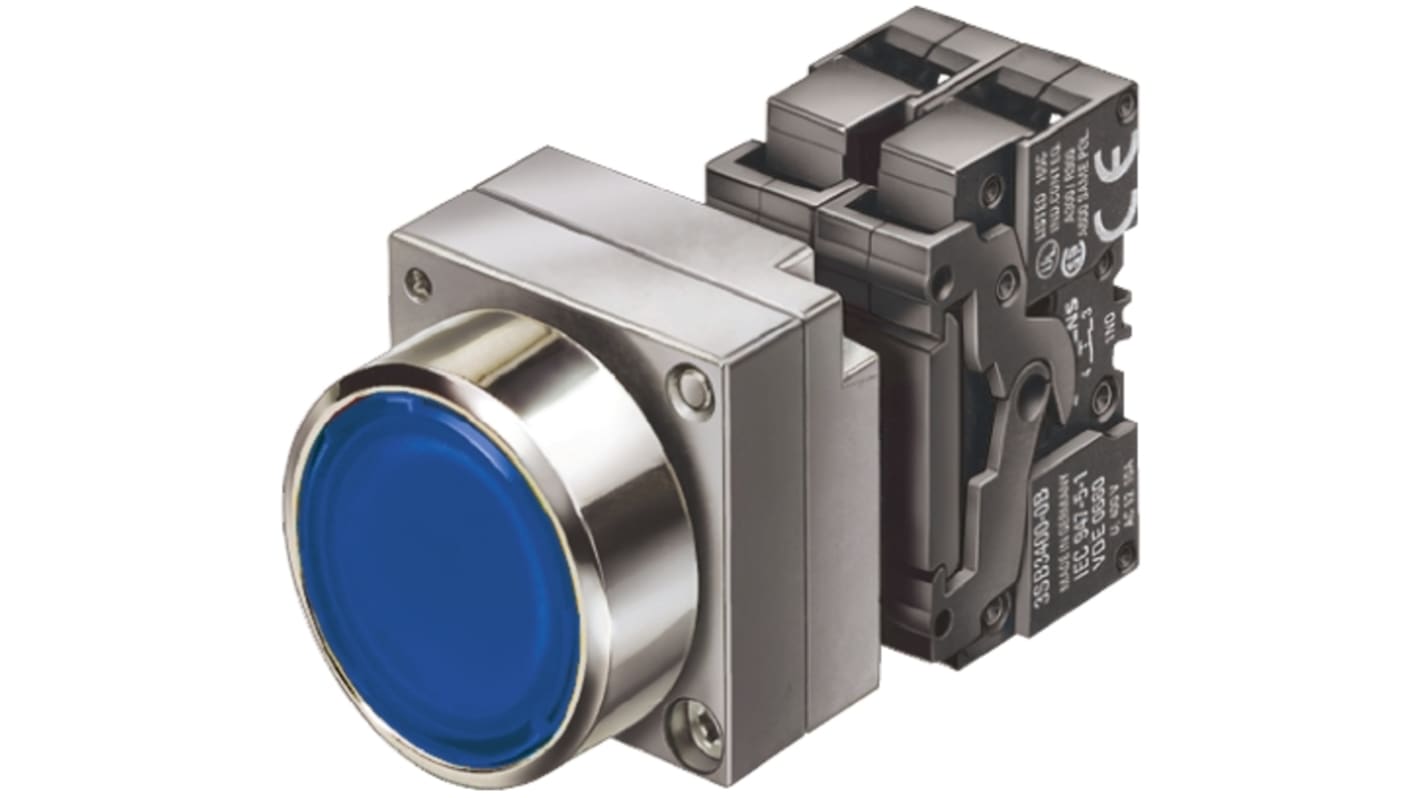

Siemens 3SB3 Series Push Button Enclosure, Panel Mount, 22mm Cutout, SPST, IP67
- RS Stock No.:
- 745-0364
- Brand:
- Siemens
Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£15.19
(exc. VAT)
£18.23
(inc. VAT)
- RS Stock No.:
- 745-0364
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Series | 3SB3 | |
| Panel Cut Out Diameter | 22mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Blue | |
| Contact Configuration | SPST | |
| Push Button Style | Flat | |
| IP Rating | IP67 | |
| Push Button Material | Plastic | |
| Manufacturer Part No. | 3SB3602-0AA51 | |
| Minimum Operating Temperature | -25°C | |
| Maximum DC Voltage | 400V | |
| Maximum AC Voltage | 400V | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Series 3SB3 | ||
Panel Cut Out Diameter 22mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Blue | ||
Contact Configuration SPST | ||
Push Button Style Flat | ||
IP Rating IP67 | ||
Push Button Material Plastic | ||
Manufacturer Part No. 3SB3602-0AA51 | ||
Minimum Operating Temperature -25°C | ||
Maximum DC Voltage 400V | ||
Maximum AC Voltage 400V | ||
Terminal Type Screw | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- AU
Complete Pushbutton Units - Non-illuminated, Flat Buttons
Complete round pushbuttons units from the Siemens 3SB3 series comprising of actuator, body and contact block, available in either metal or plastic.
Non-illuminated
PHASE OUT NOTIFICATION
This product is in obsolescence mode and is due for discontinuation by the manufacturer. We recommend that you review the new pushbutton range SIRIUS ACT which is the alternative range proposed by the manufacturer. Please refer to the 3SB3 / SIRIUS ACT cross-reference guide located in the technical reference section.
Contents
blue
