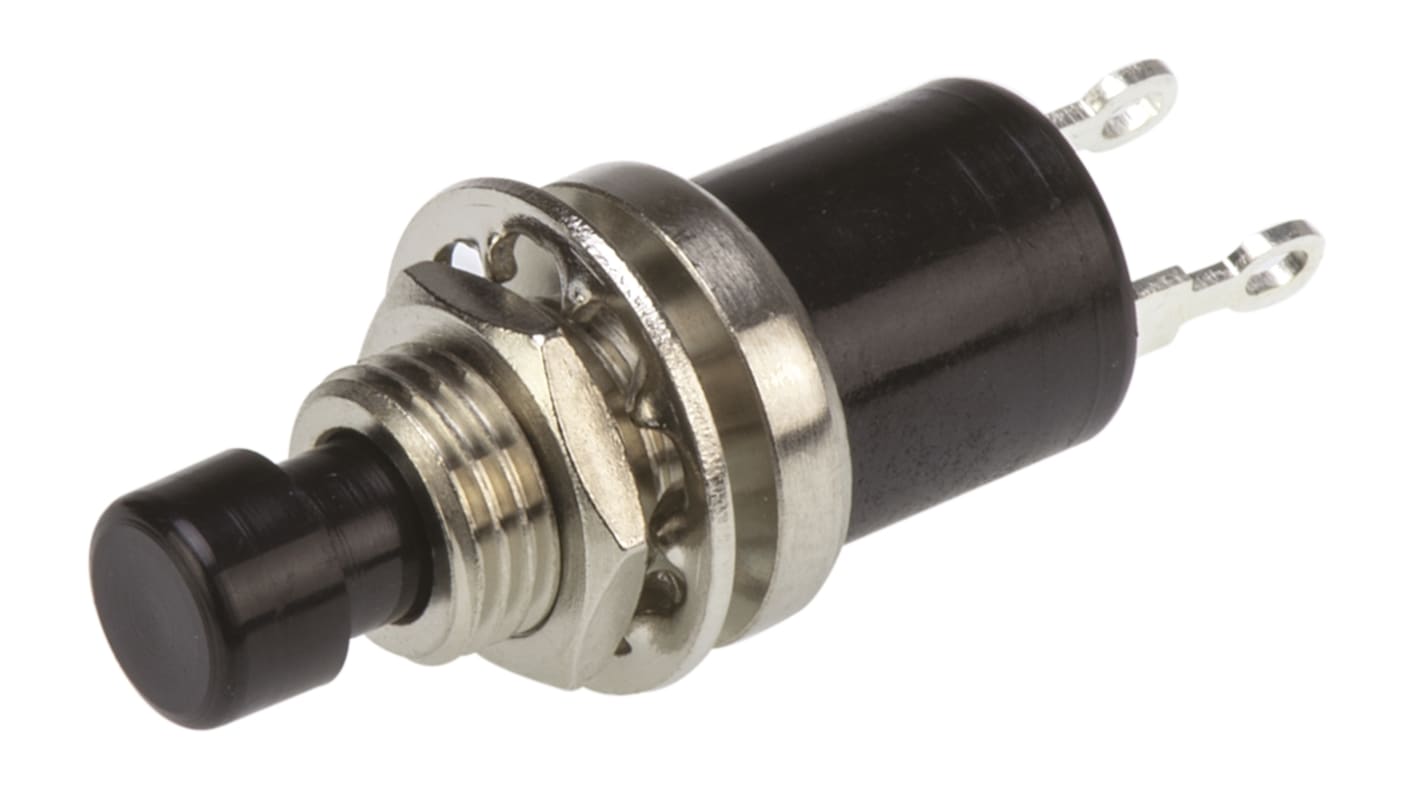

TE Connectivity Single Pole Single Throw (SPST) Momentary Miniature Push Button Switch, 7.87 (Dia.)mm, Panel Mount,

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity Miniature Push Button Switches

From TE Connectivity, these panel mount momentary push button switches are robust and compact. The switches are normally closed with silver contacts and solder terminals, ensuring a reliable termination. These miniature push button switches are supplied with a lockwasher and hex nut for easy panel mounting.

Features and Benefits:

• Panel mount 1/4 inch / 6.35mm bushing
• Thermoplastic casing
• Stainless steel spring
• Supplied with mounting hardware

Specifications
Attribute Value
Switch Operation Momentary
Mounting Type Panel Mount
Illuminated No
Contact Configuration Single Pole Single Throw (SPST)
Panel Cut Out Size 7.87 (Dia.)mm
Panel Cut Out Diameter 7.87mm
Actuator Colour Black
Voltage Rating 125V ac
Contact Current Rating 500 A @ 125 V ac
Actuator Shape Cylinder
Terminal Type Through Hole
Case Colour Black
Actuator Type Button
Available to back order for despatch when stock is available
Price Each
£ 2.02
(exc. VAT)
£ 2.42
(inc. VAT)
Units
Per unit
1 - 9
£2.02
10 - 49
£1.79
50 - 99
£1.62
100 - 249
£1.58
250 +
£1.53
