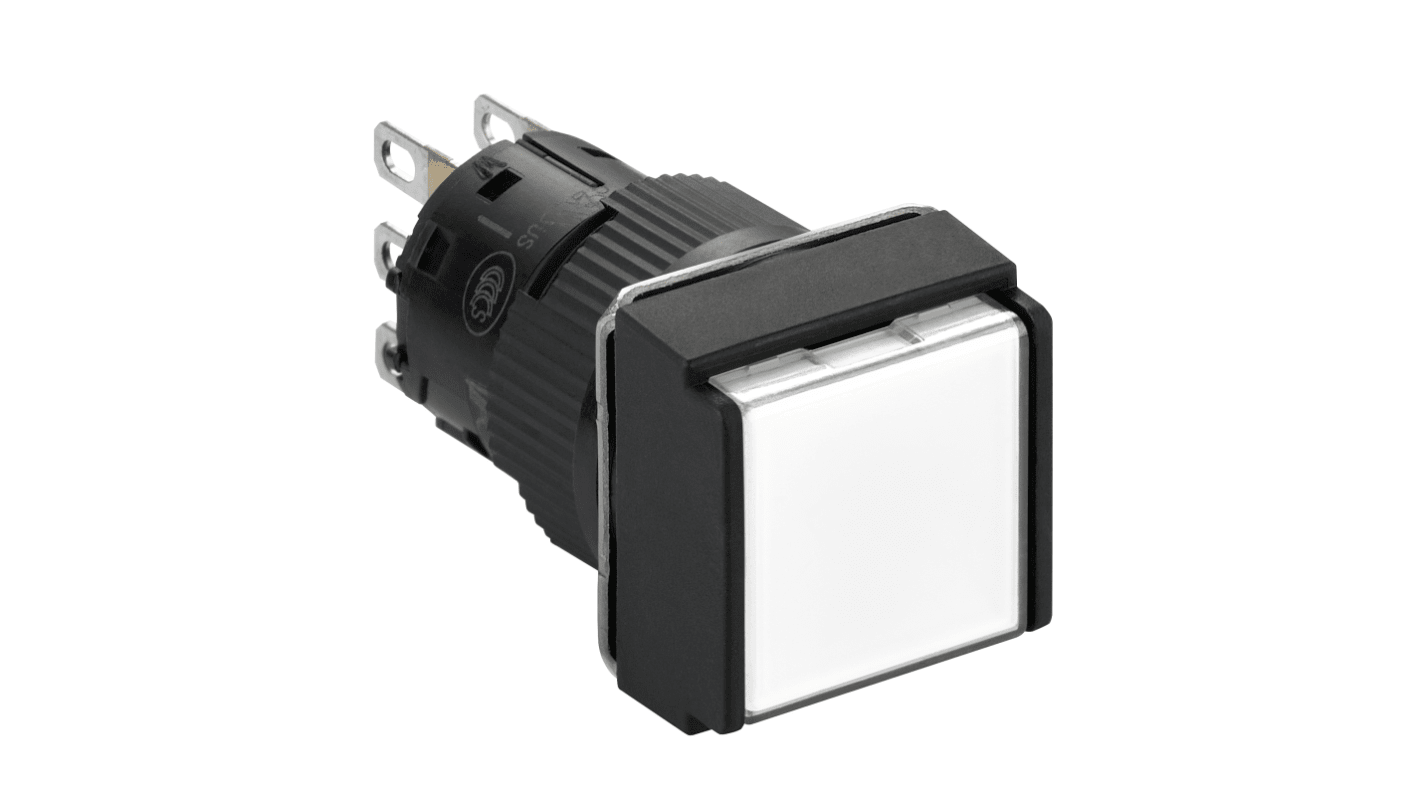

Schneider Electric Harmony XB6 Series Illuminated Push Button, Spring Return, Panel Mount, 16mm Cutout, SPDT, White
- RS Stock No.:
- 610-1777
- Mfr. Part No.:
- XB6ECW1B1P
- Brand:
- Schneider Electric
Image representative of range
Subtotal (1 unit)*
£15.22
(exc. VAT)
£18.26
(inc. VAT)
FREE delivery for orders over £50.00
- 53 unit(s) ready to ship
- Plus 23 unit(s) ready to ship from another location
- Plus 25 unit(s) shipping from 14 November 2025
Units | Per unit |
---|---|
1 + | £15.22 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 610-1777
- Mfr. Part No.:
- XB6ECW1B1P
- Brand:
- Schneider Electric
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Switch Operation | Spring Return | |
Illuminated | Yes | |
Panel Cut Out Diameter | 16mm | |
Series | Harmony XB6 | |
Mounting Type | Panel Mount | |
Push Button Colour | White | |
Contact Configuration | SPDT | |
Voltage Rating | 24V dc | |
Push Button Style | Square | |
LED Colour | White | |
IP Rating | IP65 | |
Push Button Material | Plastic (Bezel) | |
Contact Current Rating | 1.5A | |
Better World Verification | Green Premium | |
Contact Material | Gold-Flashed Silver | |
Better World Product | Yes | |
Contact DC Voltage Rating | 24V | |
Manufacturer Part No. | XB6ECW1B1P | |
Maximum Operating Temperature | +70°C | |
Maximum AC Voltage | 250V | |
Minimum Operating Temperature | -40°C | |
Terminal Type | Quick Connect, Solder Tag | |
Body Material | Plastic | |
Operating Temperature Range | -40 → +70°C | |
Maximum DC Voltage | 24V | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Switch Operation Spring Return | ||
Illuminated Yes | ||
Panel Cut Out Diameter 16mm | ||
Series Harmony XB6 | ||
Mounting Type Panel Mount | ||
Push Button Colour White | ||
Contact Configuration SPDT | ||
Voltage Rating 24V dc | ||
Push Button Style Square | ||
LED Colour White | ||
IP Rating IP65 | ||
Push Button Material Plastic (Bezel) | ||
Contact Current Rating 1.5A | ||
Better World Verification Green Premium | ||
Contact Material Gold-Flashed Silver | ||
Better World Product Yes | ||
Contact DC Voltage Rating 24V | ||
Manufacturer Part No. XB6ECW1B1P | ||
Maximum Operating Temperature +70°C | ||
Maximum AC Voltage 250V | ||
Minimum Operating Temperature -40°C | ||
Terminal Type Quick Connect, Solder Tag | ||
Body Material Plastic | ||
Operating Temperature Range -40 → +70°C | ||
Maximum DC Voltage 24V | ||
- COO (Country of Origin):
- CN
Schneider Electric | Harmony XB6E Series | Push Buttons
Features and benefits
Illuminated monolithic push-button, rectangular in shape, with a flush style push button. Available in several different colours, including red, green and yellow.
12V or 24V integral LED clearly highlights the operating status of the push button.
Fast connector socket for easy connection to terminals. Gold-flashed silver is used for the contact material to increase conductivity and resistance to corrosion.
Durable plastic surrounds the bezel. This plastic is resistant to certain liquids and is easily maintained and cleaned.
Spring return functionality within the push button allows the profile to return to the original position.
1,000,000 cycles of high-performance mechanical durability ensuring consistent reliability and longevity of use.
Suitable for use in temperature ranges -10 to 55 ° C.
Low current consumption.
Protection ratings & Safety features (See datasheet for further details) -
IP 65 rated with a good degree of protection against dust and dirt. There is also protection against low-pressure jet washes.
EN/IEC 60947-5-1, UL 508
Short circuit protection via a 2 A cartridge fuse.
Applications -
Automotive industries, factories, automation lines
Commercial units such as warehouses.
Restaurants, commercial food units with detailed cleaning tasks that happen on a regular basis.
Schneider Electric Push Button, 24V DC Supply Voltage, Momentary Actuation - Harmony XB6 Series - XB6ECW1B1P
Features & Benefits
• Snap-action contacts for precise switching
• Spring-return operation suits machine controls and intercoms
• Mechanical durability of 1,000,000 cycles for reliable daily use
• IP65 rating indicates protection against dust and low-pressure jets of water
Applications
• Engineering workshops
• Transportation industry
What's the push button's bezel made out of?
Does this push button have any protection against short circuits?
