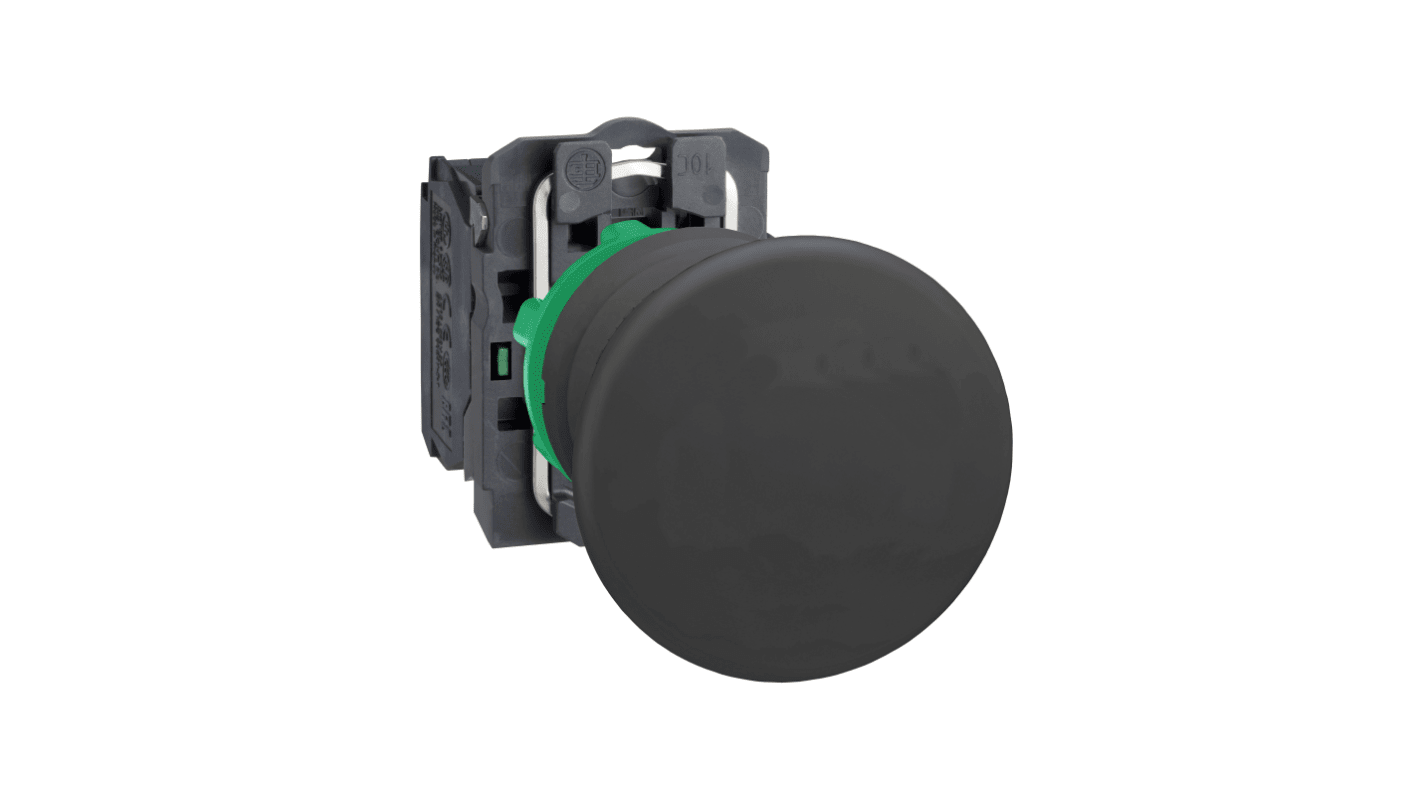

Schneider Electric Harmony Series Push Button Switch, Spring Return, Panel, 22 mm Cutout, SPST, Black LED, IP65, IP69,
- RS Stock No.:
- 609-6029
- Distrelec Article No.:
- 304-10-517
- Mfr. Part No.:
- XB5AC21
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£19.29
(exc. VAT)
£23.15
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 22 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
- Plus 17 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.29 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 609-6029
- Distrelec Article No.:
- 304-10-517
- Mfr. Part No.:
- XB5AC21
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Actuator Colour | Black | |
| Product Type | Push Button Switch | |
| Switch Operation | Spring Return | |
| Illuminated | No | |
| Series | Harmony | |
| Panel Cutout Size | 22 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Screw Clamp | |
| LED Colour | Black | |
| IP Rating | IP65, IP69, IP69K | |
| Actuator Style | Mushroom | |
| Contact DC Voltage | 24V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Switch Contact Current | 12A | |
| Standards/Approvals | IEC 60947-5-1, IEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-4, CSA C22.2 No 14, JIS C8201-1 | |
| Height | 43mm | |
| Length | 82mm | |
| Width | 40mm | |
| Better World Product | Yes | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Actuator Colour Black | ||
Product Type Push Button Switch | ||
Switch Operation Spring Return | ||
Illuminated No | ||
Series Harmony | ||
Panel Cutout Size 22 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Screw Clamp | ||
LED Colour Black | ||
IP Rating IP65, IP69, IP69K | ||
Actuator Style Mushroom | ||
Contact DC Voltage 24V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Switch Contact Current 12A | ||
Standards/Approvals IEC 60947-5-1, IEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-4, CSA C22.2 No 14, JIS C8201-1 | ||
Height 43mm | ||
Length 82mm | ||
Width 40mm | ||
Better World Product Yes | ||
Legend Blank | ||
- COO (Country of Origin):
- CZ
Schneider Electric Harmony XB5 Series Push Button Switches, 22mm Panel Cutout size, 12A Switch Contact Current - XB5AC21
This push-button switch is a non-illuminated, panel-mounted operator designed for control and safety interfaces in industrial systems. It provides a spring-return mushroom actuator for straightforward manual reset in machinery and control panels and is built to perform in demanding environments where ingress protection and temperature range are critical.
Features & Benefits
• IP65 IP69K protection for washdown and dust resistance
• Spring-return action gives quick manual reset after operation
• SPST contact arrangement supports simple on/off control
• Screw-clamp terminals accept up to 2x1.5mm² conductors
• Rated for 12A contact switching to handle higher loads
• Operates across -40°C to 70°C for wide temperature use
• Spring-return action gives quick manual reset after operation
• SPST contact arrangement supports simple on/off control
• Screw-clamp terminals accept up to 2x1.5mm² conductors
• Rated for 12A contact switching to handle higher loads
• Operates across -40°C to 70°C for wide temperature use
Applications
• Suitable for emergency stop or manual reset on production lines
• Ideal for food processing areas requiring high-pressure cleaning
• used with motor control panels requiring 22mm cut-outs
• Can be used for machinery HMI panels needing robust actuators
• Suitable for retrofit of industrial control stations with screw terminals
• Ideal for food processing areas requiring high-pressure cleaning
• used with motor control panels requiring 22mm cut-outs
• Can be used for machinery HMI panels needing robust actuators
• Suitable for retrofit of industrial control stations with screw terminals
What Terminal connection types are available for wiring?
Connections use screw-clamp terminals compatible with 1x0.22 to 2x2.5mm² without ferrule or up to 2x1.5mm² with ferrule and also accept Faston connectors 6.35mm or 2.8mm sizes.
How does the contact operate electrically under load conditions?
The device provides slow-break switching with silver-alloy contacts and a conventional free-air thermal current rating of 10A
rated operational currents vary by utilisation category and voltage as per EN/IEC 60947-5-1.
What mechanical endurance can be expected in continuous use?
Mechanical life is specified at 5,000,000 cycles with electrical endurance rated to 1,000,000 cycles under specified AC-15 and DC-13 test conditions.
What environmental stresses can the switch tolerate?
It resists vibration to 5gn (2 to 500Hz), shock to 10gn (11ms), and high-pressure washing at 7,000,000Pa at 55°C from 0.1m distance.
